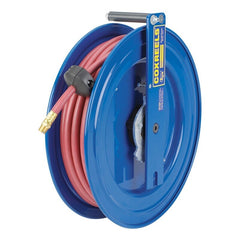

Coxreels EZ-SR15-L325 Spring Driven Hose Reel 3/8 in 25 Ft

Product Description

The COXREELS EZ-SR15-L325 is a spring-driven retractable hose reel from the EZ-S Series, designed for side mount and cabinet mount installations in professional trade environments. The reel accepts 3/8 inch ID hose up to 25 feet and features Coxreels patented EZ-COIL retraction system, which slows the retract speed up to 80 percent compared to conventional spring-driven reels — a critical safety advantage in busy shop and service environments. The unit ships at 23 pounds and measures 17.5 inches long, 8.5 inches wide, and 19.25 inches tall. It is suitable for air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose applications. Licensed HVAC techs, plumbers, and general service technicians working from enclosed service vehicles, tool benches, or cabinet-mounted workstations will find this reel particularly applicable.

The EZ-SR15-L325 is built for compact, high-use environments where space is at a premium. Common installation locations include service units, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, and service vehicles. The side mount, two-bolt pattern allows the reel to be quickly mounted and detached, making it practical for temporary workstation setups as well as permanent installations. The 360-degree hose direction capability lets the operator run hose in any direction the job requires without repositioning the reel.

Key Features

• EZ-COIL patented retraction system slows hose retract speed up to 80 percent slower than standard spring-driven reels for improved operator safety
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without special tools
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• Two-bolt side mount pattern supports both permanent and temporary installation on flat vertical surfaces and in enclosed spaces
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 3/8 inch ID hose up to 25 feet in length. Suitable for air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose service. Intended for side mount and cabinet mount configurations on flat vertical surfaces.

Installation Notes

Installation is performed by qualified service technicians using standard hand tools. Shut off and depressurize the supply line completely before mounting or servicing the reel. Secure the reel using the two-bolt mounting pattern to a flat, load-bearing vertical surface rated for the combined weight of the reel and fully loaded hose. Follow all applicable shop safety and compressed-gas handling standards when connecting oxygen-acetylene or other gas welding lines.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Length Capacity: 25 feet
• Retraction Type: Spring driven (EZ-COIL)
• Mount Style: Side mount, 2-bolt pattern
• Swivel Material: Solid brass, 90-degree NPT full-flow
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 23 pounds
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• UPC: 674255733909

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SR15-L325
