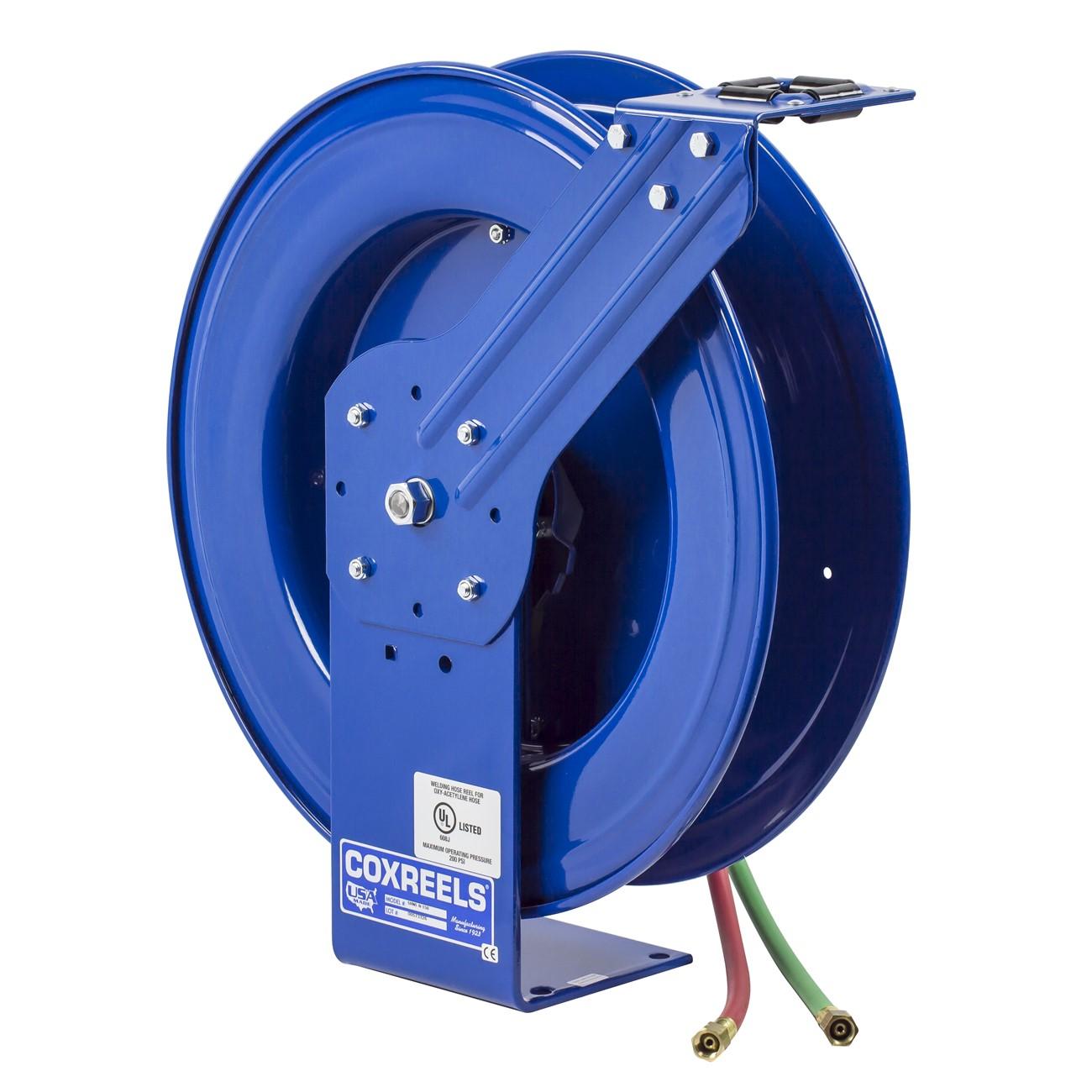

Coxreels EZ-SHWTL-175 Welding Hose Reel 1/4 in 75 Ft

Product Description

The COXREELS EZ-SHWTL-175 is a spring-driven, EZ-Coil welding hose reel engineered to manage bulky twin-line welding hose in demanding shop and field environments. It features a 1/4 inch inner diameter capacity and accommodates up to 75 feet of hose. The SHW Series chassis uses a larger frame than the compact P-W Series to handle longer hose lengths. The reel ships with Coxreels original Super Hub dual-axle support system, which reduces vibration, increases stability during operation, and adds structural integrity to the assembly. Licensed welding equipment technicians and shop maintenance professionals are the primary installers.

The EZ-SHWTL-175 is suited for permanent and semi-permanent installations in welding shops, fabrication facilities, and service bays where twin-line welding hose must be stored safely and retracted under controlled tension. The EZ-Coil spring system retracts hose up to 80 percent slower than conventional spring-driven reels, reducing snap-back hazards. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of layout requirements in both residential shop and light commercial settings.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than standard reels for improved operator safety; cartridge is removable for maintenance without dismounting the reel
• External 90-degree full-flow dual-ported brass swivel with Viton seals; both supply and return connections exit from the same side of the reel, eliminating the need to remove the reel from its mount for service
• Super Hub dual-axle support system reduces vibration and increases structural integrity under load
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Single-pedestal base with one-piece steel construction and no-weld support post for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; permanently lubricated precision bearings require no routine greasing

Compatibility

Designed as an OEM-style replacement and direct-fit option within the Coxreels SHW Series for applications requiring spring-driven retraction of 1/4 inch twin-line welding hose up to 75 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas distribution systems and applicable facility safety codes. Shut off all gas supply valves and verify zero pressure in the hose line before mounting or connecting the reel. Secure the pedestal base to a structurally sound surface using fasteners appropriate for the mounting material. Confirm all swivel fittings are leak-free with an approved leak-detection solution before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length Capacity: 75 feet
• Retraction Type: Spring driven EZ-Coil
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Construction: Single-pedestal one-piece steel no-weld design
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 63 pounds
• UPC: 674255725119

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHWTL-175
