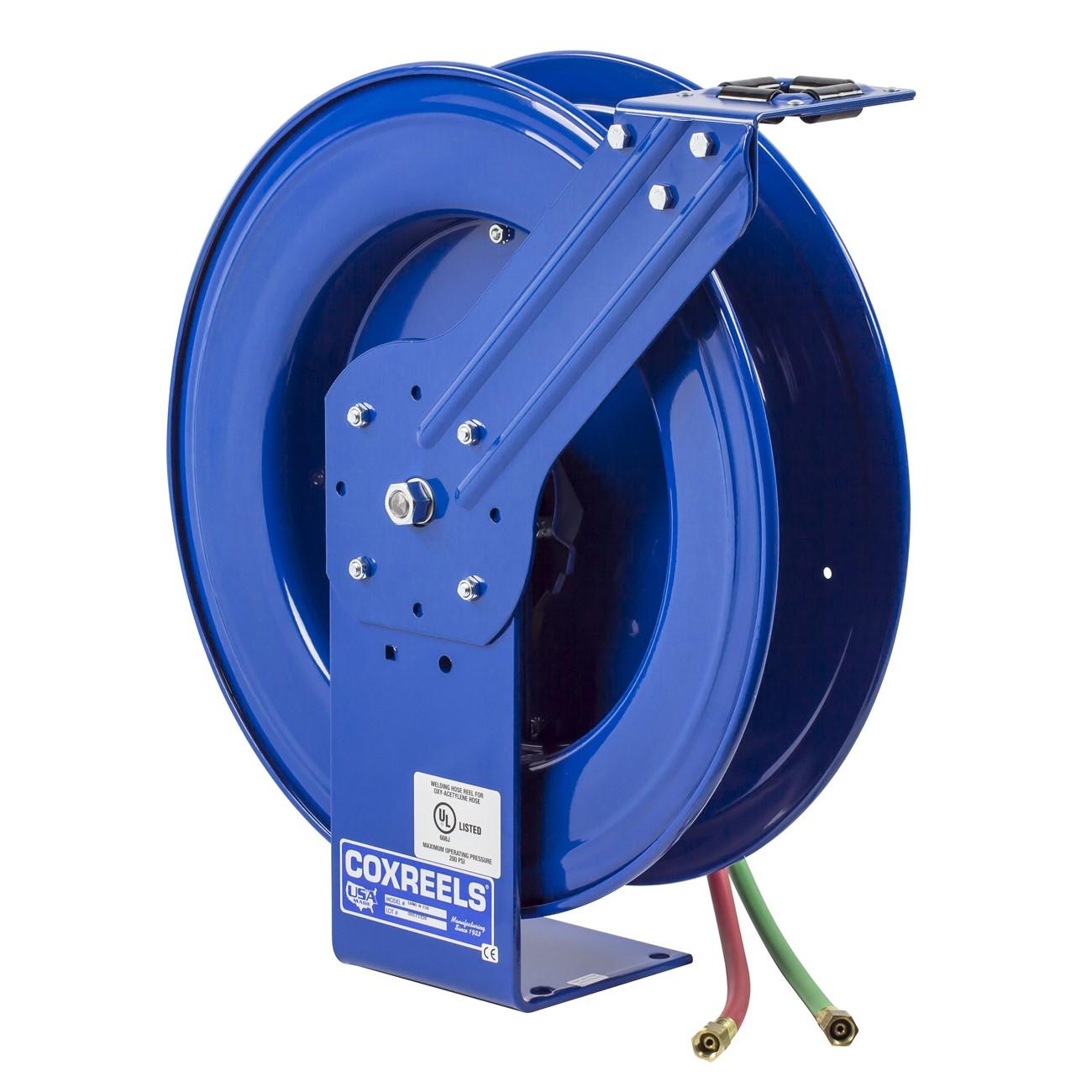

Coxreels EZ-SHWTL-1100 Welding Hose Reel 1/4 in 100 Ft

Product Description

The COXREELS EZ-SHWTL-1100 is a spring-driven welding hose reel from the SHW series, built to manage bulky twin-line welding hose in demanding shop and field environments. It features the EZ-Coil retraction system, which uses a lubricated, enclosed cartridge-style motor to slow retraction speed up to 80 percent compared to conventional reels, reducing snap-back hazards. The larger SHW chassis includes Coxreels original Super Hub dual-axle support for added structural stability and reduced vibration during operation. Licensed welding technicians and industrial maintenance crews are the primary installers of this unit.

This hose reel is designed for welding gas supply lines requiring a 1/4 inch inner diameter hose up to 100 feet in length. The SHW series chassis is sized specifically to accommodate longer welding hose runs, making it well suited for production welding stations, fabrication shops, and service truck installations. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of worksite layouts.

Key Features

• EZ-Coil spring-driven retraction slows hose return up to 80 percent slower than standard reels for improved operator safety
• External 90-degree full-flow dual-ported brass swivel with Viton seals, both connections accessible from the same side without removing the reel from its mount
• Super Hub dual-axle support system reduces vibration and increases structural integrity under continuous use
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post, no-weld construction, for maximum pedestal stability
• CPC powder coat finish is chip resistant and rust inhibiting for long service life
• Permanently lubricated precision bearings require no routine bearing maintenance

Compatibility

Designed as an OEM-style spring-driven welding hose reel for twin-line welding gas supply applications requiring a 1/4 inch ID hose connection up to 100 feet.

Installation Notes

Installation should be performed by a qualified welding technician or industrial maintenance professional familiar with compressed gas plumbing. Shut off all gas supply valves and depressurize the hose line completely before connecting or disconnecting the swivel fittings. Verify that mounting hardware and the selected surface are rated for the combined weight of the reel and a fully extended hose. Consult applicable IFGC and local fire code requirements when installing in occupied or confined work areas.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length Capacity: 100 feet
• Retraction Type: Spring-driven EZ-Coil
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Base Construction: Solid one-piece steel, no-weld single pedestal
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 62 pounds
• UPC: 674255730175

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHWTL-1100
