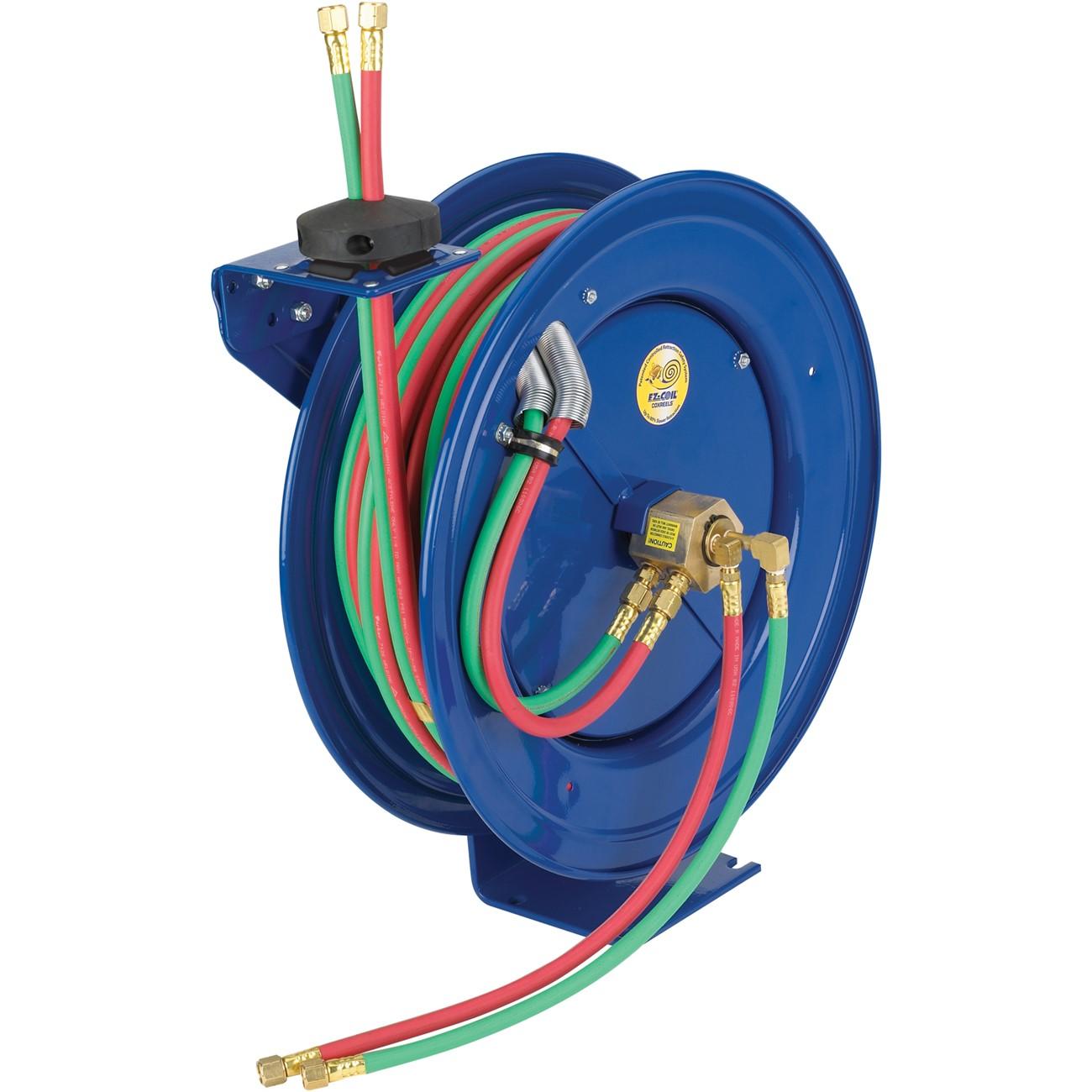

Coxreels EZ-SHWT-175 Welding Hose Reel 75 Ft Ez-coil

Product Description

The COXREELS EZ-SHWT-175 is a spring-driven welding hose reel from the SHW Series, engineered to manage bulky twin-line welding hose in demanding shop and field environments. It accepts 1/4 inch inner diameter hose up to 75 feet in length. The reel features a larger chassis and frame compared to the compact P-W Series, along with the Coxreels Super Hub dual-axle support system that reduces vibration and improves structural integrity during operation. The EZ-Coil retraction system slows hose return to up to 80 percent slower than conventional spring reels, reducing snap-back hazards. Licensed welding professionals and industrial maintenance technicians are the primary installers.

The EZ-SHWT-175 is suited for use in welding shops, fabrication facilities, industrial maintenance bays, and vehicle-mounted service configurations. Its multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting, making it adaptable across fixed and mobile installations. The external dual-ported brass swivel with Viton seals routes both gas lines from the same side of the reel, eliminating the need to dismount the reel for access. This design is particularly practical in production welding environments where downtime for hose management is costly.

Key Features

• EZ-Coil enclosed cartridge motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back risk
• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from the same reel side
• Super Hub dual-axle support system increases stability and reduces vibration during hose extension and retraction
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with single pedestal design and no-weld construction for maximum stability
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 1/4 inch inner diameter twin-line welding hose up to 75 feet in length. Part of the Coxreels SHW Series spring-driven welding hose reel family.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed gas distribution systems and applicable safety codes. Shut off all gas supply lines and depressurize the system completely before mounting or servicing the reel. The multi-position guide arm must be secured to a structurally adequate surface rated for the combined weight of the reel and loaded hose. The EZ-Coil cartridge motor is designed for field removal — consult the manufacturer service documentation before attempting motor replacement or lubrication service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length Capacity: 75 feet
• Retraction Type: Spring-driven EZ-Coil
• Swivel Material: Brass with Viton seals
• Base Material: Steel
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 80 pounds
• UPC: 674255725089

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHWT-175
