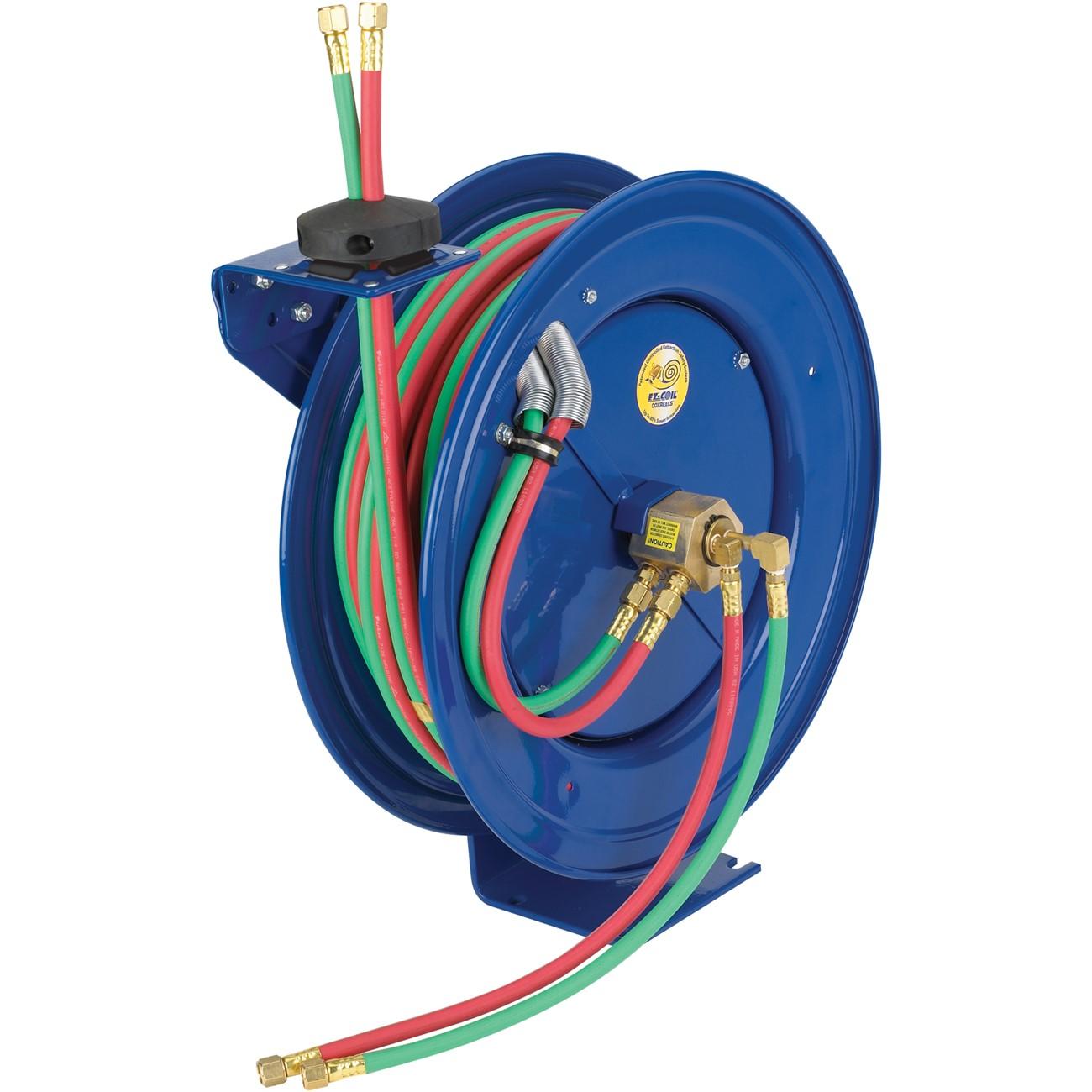

Coxreels EZ-SHWT-150 Welding Hose Reel 1/4 in 50 Ft

Product Description

The COXREELS EZ-SHWT-150 is a spring-driven welding hose reel designed to manage bulky twin-line welding hose in demanding shop and field environments. Built on the SHW Series chassis, it features a larger frame with Coxreels Super Hub dual axle support system for increased stability, reduced vibration, and greater structural integrity during operation. The reel ships EZ-Coil equipped, meaning the enclosed cartridge-style spring motor retracts hose up to 80 percent slower than conventional reels, significantly reducing snap-back hazard. The unit weighs 64 pounds and measures 22.25 inches long by 12.75 inches wide by 23.75 inches tall. Licensed HVAC and welding technicians, as well as industrial maintenance professionals, are the primary installers.

This reel is suited for residential shops, commercial fabrication facilities, and fleet maintenance bays where twin-line welding hose must be stored and deployed repeatedly. The 1/4 inch ID hose capacity and 50 foot hose length make it a practical fit for MIG, TIG, and oxy-fuel setups that require consistent gas delivery over a moderate working radius. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of work environments.

Key Features

• EZ-Coil spring motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back risk
• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from the same side of the reel without dismounting
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Single-pedestal base with solid one-piece steel support post, no-weld construction, and Super Hub dual axle support for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct-fit reel for twin-line welding hose applications requiring a 1/4 inch ID, 50 foot spring-retractable reel with dual-port gas swivel.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed gas systems and welding equipment. Shut off all gas supply valves and bleed line pressure before connecting or disconnecting hose fittings at the swivel. Verify that mounting hardware is rated for the combined weight of the reel and loaded hose — this unit weighs 64 pounds unloaded. Consult applicable OSHA and NFPA codes for compressed gas hose reel mounting clearances and anchorage requirements.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 50 feet
• Drive Type: Spring-driven (EZ-Coil)
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Disc Construction: CNC spun, ribbed with rolled edges
• Base Material: Steel, single-pedestal no-weld construction
• Finish: CPC powder coat
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 64 pounds
• UPC: 674255725072

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHWT-150
