Coxreels EZ-SHWT-1100 Welding Hose Reel Ez-coil

Product Description

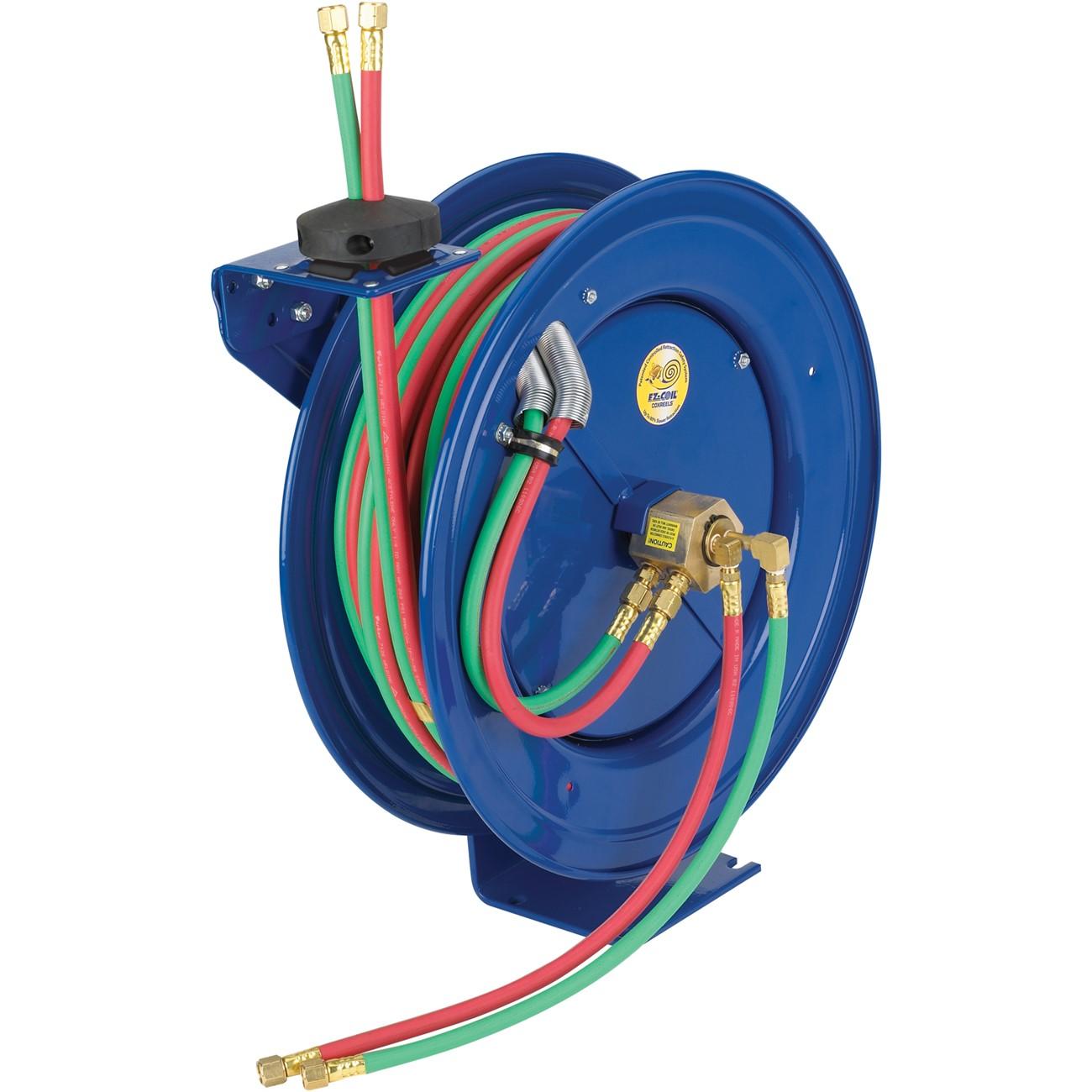

The COXREELS EZ-SHWT-1100 is a spring-driven welding hose reel from the SHW Series, designed to manage bulky twin-line welding hose in demanding shop and field environments. It features a 1/4 inch ID inlet and accommodates up to 100 feet of hose. The larger SHW chassis and frame provide the capacity for longer hose lengths, while the Coxreels Super Hub dual axle support system reduces vibration and increases structural integrity during retraction and dispensing. An external 90-degree full-flow dual-ported brass swivel with Viton seals routes both hose connections from the same side of the reel, eliminating the need to dismount the reel for hose access. Licensed welding professionals and industrial service technicians are the primary installers.

This reel is suited for welding gas distribution in production facilities, maintenance shops, fabrication operations, and vehicle-mounted service setups. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across a range of fixed and mobile installations. The spring-driven EZ-Coil retraction system retracts hose at up to 80 percent slower than conventional spring reels, reducing the risk of hose snap-back and operator injury. The reel ships with T-grade welding hose installed.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than standard reels for improved operator safety
• External 90-degree dual-ported brass swivel with Viton seals — both connections accessible from one side without dismounting
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural strength
• Super Hub dual axle support system minimizes vibration and increases frame stability under load
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; adjustable solid rubber hose stop included

Compatibility

Designed for use with twin-line welding hose at 1/4 inch ID up to 100 feet in length; part of the Coxreels SHW Series of spring-driven welding hose reels.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas distribution systems. Shut off all gas supply at the source and bleed the hose before disconnecting or mounting the reel. Secure the mounting surface to support the combined weight of the reel and fully loaded hose; consult applicable OSHA and facility safety codes for welding gas hose management requirements. The EZ-Coil spring cartridge is removable for maintenance without full reel disassembly.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 100 feet
• Drive Type: Spring-driven (EZ-Coil)
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Disc Construction: CNC robotically spun and ribbed with rolled edges
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 84 pounds
• UPC: 674255730168

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHWT-1100
