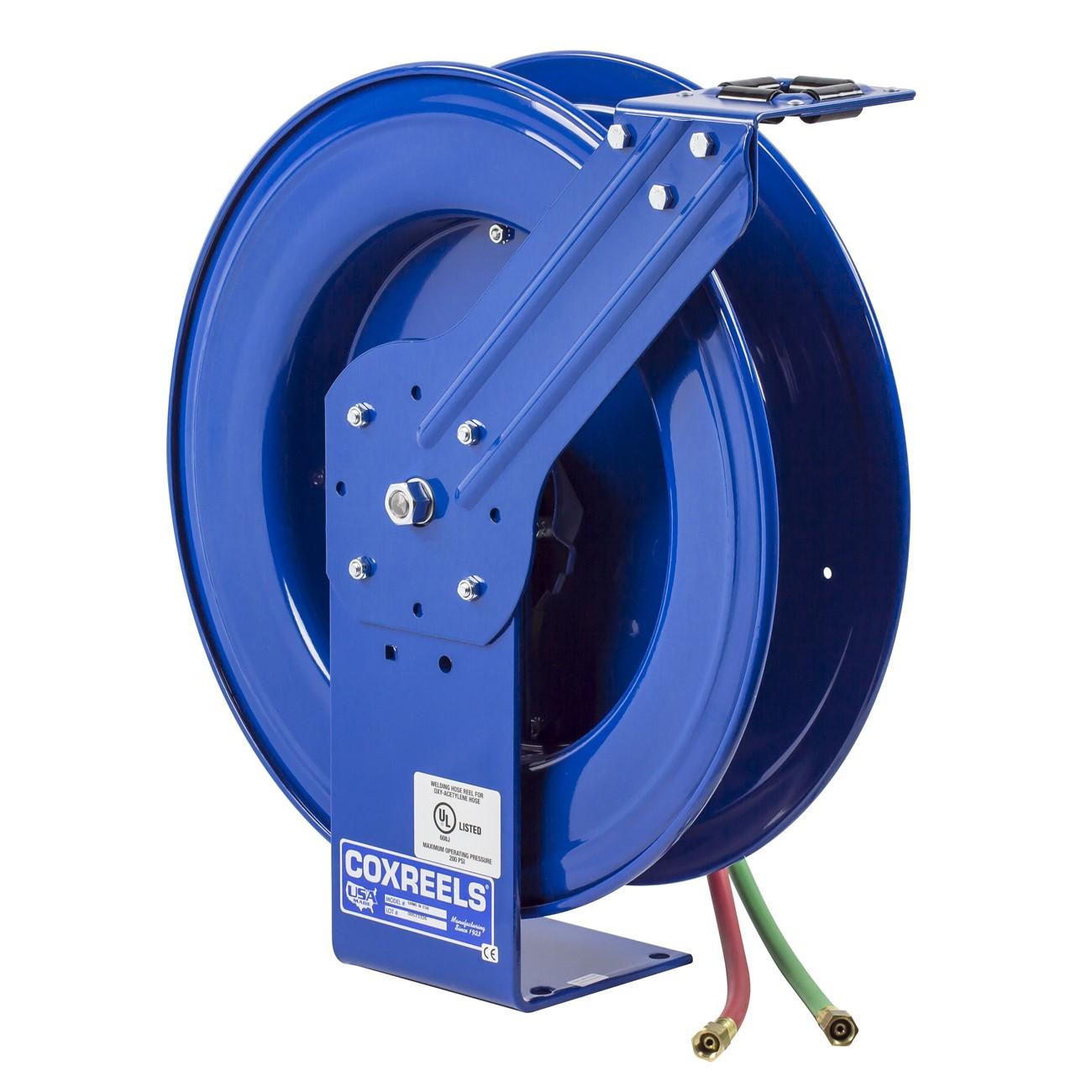

Coxreels EZ-SHWL-175 Welding Hose Reel 1/4 in 75 Ft

Product Description

The COXREELS EZ-SHWL-175 is a spring-driven welding hose reel designed to manage twin-line welding hose in demanding shop and field environments. Part of the SHW Series, it features a larger chassis and frame built to handle longer hose lengths. The reel ships with Coxreels EZ-Coil retraction technology, which slows hose retrieval to up to 80 percent slower than conventional spring reels, reducing snap-back hazards on the job. An external 90-degree full-flow dual-ported brass swivel with Viton seals connects both hose lines from the same side of the reel, eliminating the need to dismount the unit for access. Licensed HVAC technicians, welding supply professionals, and industrial maintenance crews are the typical installers.

The EZ-SHWL-175 is suited for welding gas distribution in residential shops, commercial fabrication facilities, and fleet service environments. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, giving installers flexibility across a wide range of installation scenarios. The 1/4 inch ID hose capacity and 75 foot hose length make it appropriate for mid-range runs where a compact reel would fall short but a full industrial drum reel would be excessive.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than conventional reels for safer hose retrieval
• External 90-degree dual-ported brass swivel with Viton seals keeps both connections accessible from one side without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base with single pedestal and no-weld support post for maximum stability; includes Super Hub dual axle support system
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust for long service life in corrosive environments

Compatibility

Designed as an OEM-style replacement or direct-install spring-driven welding hose reel for twin-line welding hose applications requiring a 1/4 inch ID connection and up to 75 feet of hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas distribution systems and applicable safety codes. Shut off all gas supply lines and relieve hose pressure completely before mounting or servicing the reel. The spring motor cartridge is removable for maintenance without full disassembly. Secure the base mounting hardware to a structural surface rated to support the reel weight and the dynamic load of a fully extended hose under spring tension.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 75 ft
• Retraction Type: Spring driven, EZ-Coil
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Material: One-piece steel, no-weld single pedestal
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 63 pounds
• UPC: 674255725065

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHWL-175
