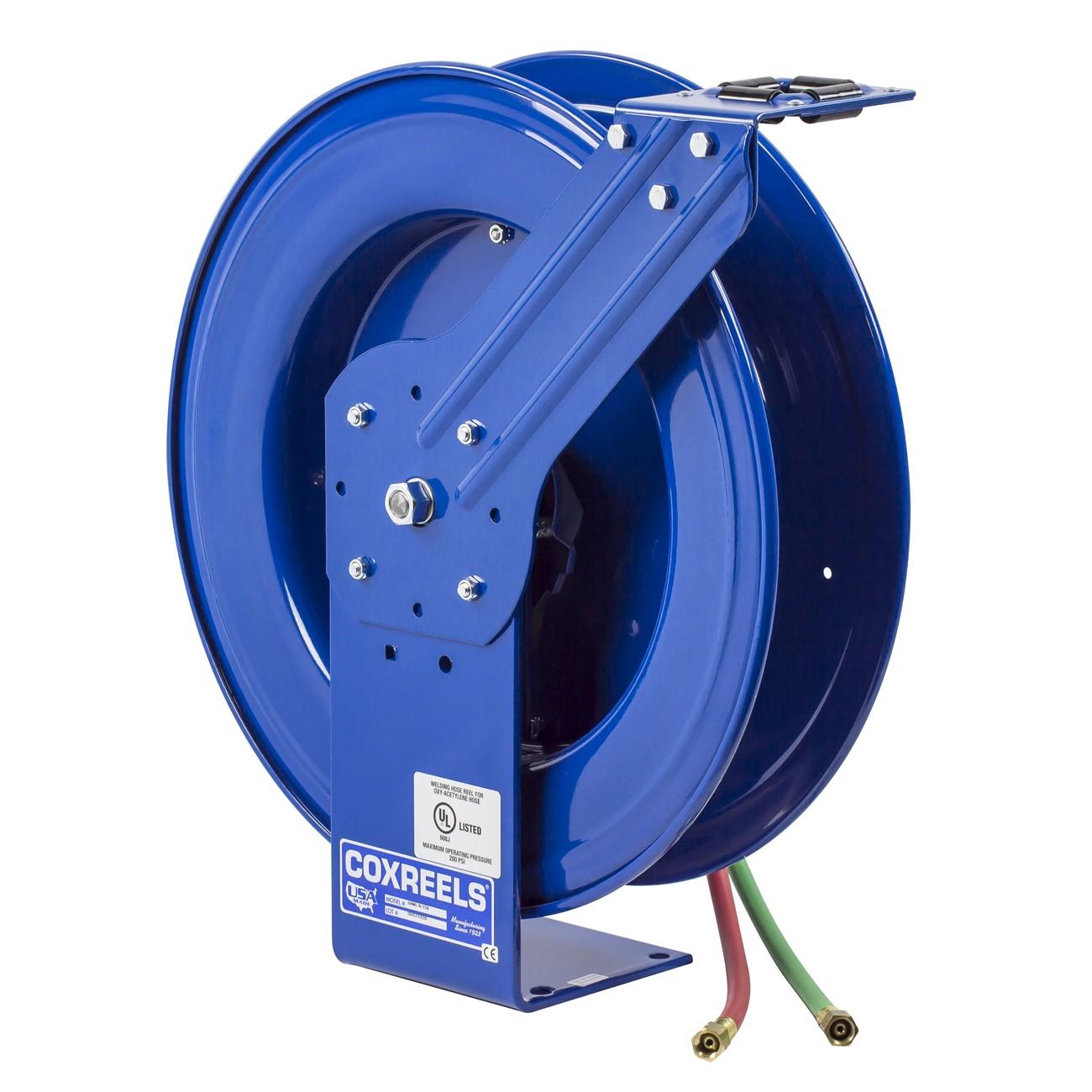

Coxreels EZ-SHWL-150 Welding Hose Reel 1/4 in 50 Ft

Product Description

The COXREELS EZ-SHWL-150 is a spring-driven welding hose reel built for managing twin-line welding hose in demanding shop and field environments. Part of the SHW Series, it features a larger chassis and frame designed to handle longer hose runs, along with Coxreels original Super Hub dual-axle support system for increased stability, reduced vibration, and greater structural integrity. The EZ-Coil retraction system slows hose retraction by up to 80 percent compared to conventional spring reels, reducing snap-back hazards. Weighing 52 pounds and measuring 22.25 inches long by 12.75 inches wide by 23.75 inches tall, this reel is sized for permanent wall, floor, ceiling, or vehicle mounting installations.

The EZ-SHWL-150 is suited for welding gas supply applications in fabrication shops, maintenance facilities, and industrial service settings where controlling bulky twin-line welding hose is a daily requirement. The 1/4 inch inner diameter hose capacity and 50 foot hose length make it appropriate for fixed workstations that need consistent gas delivery reach without hose drag or tangling. The multi-position guide arm and solid single-pedestal steel base allow flexible positioning to fit varied workspace layouts.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts hose up to 80 percent slower than conventional reels for improved operator safety
• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from the same side without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• Solid one-piece steel base with single pedestal design and Super Hub dual-axle support for maximum stability during operation
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Permanently lubricated precision bearings require no routine bearing maintenance

Compatibility

Designed as an OEM-style replacement and direct-use reel for twin-line welding hose applications with a 1/4 inch inner diameter and hose lengths up to 50 feet.

Installation Notes

Installation is typically performed by a qualified industrial or mechanical contractor familiar with welding gas supply systems. Shut off all gas supply valves and relieve line pressure before connecting or disconnecting hose reel swivel fittings. Secure the steel base mounting hardware to a structurally adequate surface rated for the reel weight and hose tension load. Verify all swivel and hose connections are leak-free with an approved leak-detection solution before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length Capacity: 50 feet
• Retraction Type: Spring driven EZ-Coil
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 52 pounds
• Base Material: Steel
• Finish: CPC powder coat

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHWL-150
