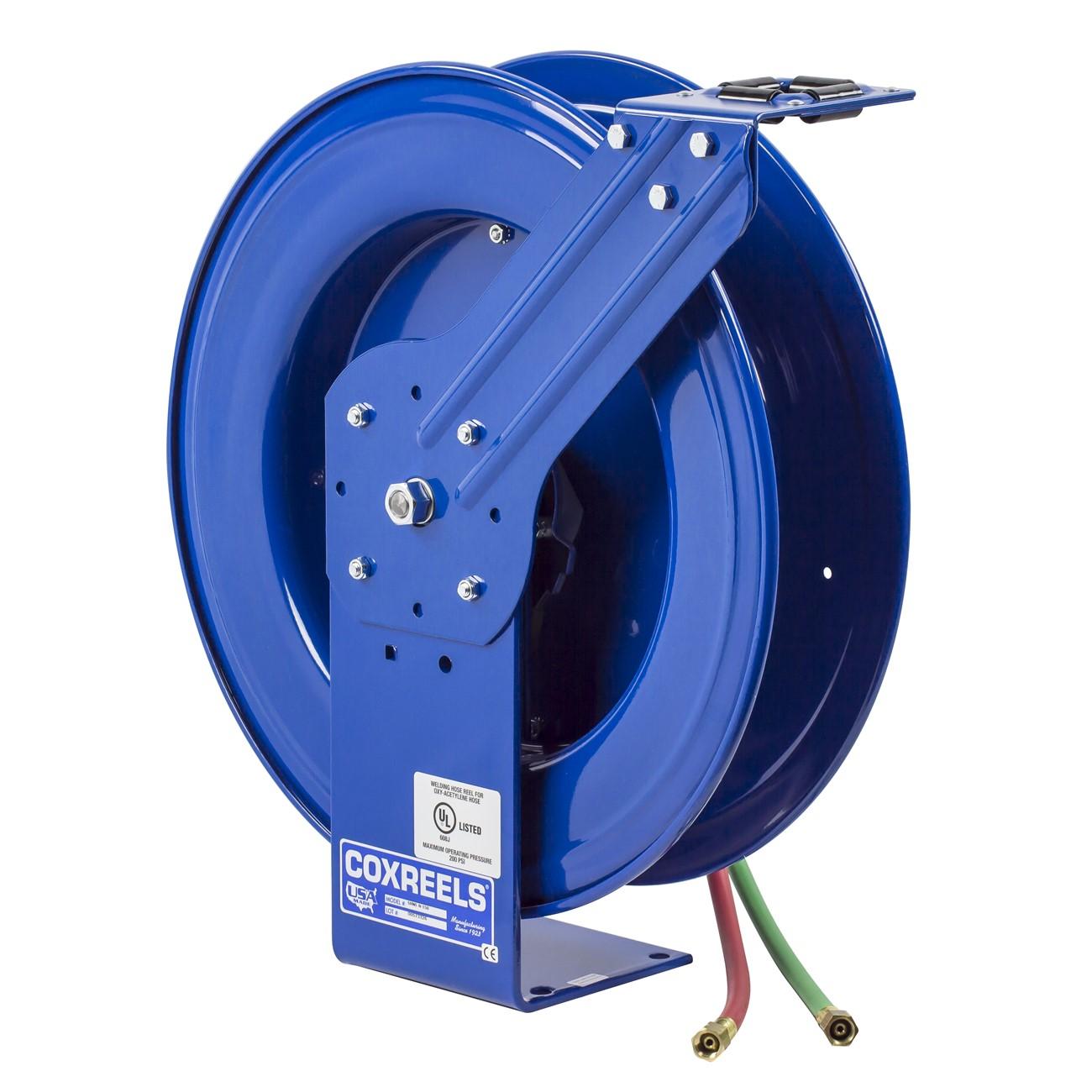

Coxreels EZ-SHWL-1100 Welding Hose Reel 1/4 in 100 Ft

Product Description

The COXREELS EZ-SHWL-1100 is a spring-driven welding hose reel engineered for managing twin-line welding hose in demanding shop and field environments. Built on the SHW Series platform, it features a larger chassis and frame designed to handle longer hose lengths with confidence. The reel includes the Coxreels EZ-Coil retraction system, which retracts hose up to 80 percent slower than conventional spring reels, significantly reducing snap-back hazards. Welding technicians and maintenance professionals will find the enclosed, cartridge-style spring motor easy to remove for inspection and servicing without taking the reel off its mount.

The EZ-SHWL-1100 is suited for welding gas distribution in residential, commercial, and industrial settings where twin-line hose management is required. It accommodates 1/4 inch ID hose up to 100 feet in length. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it a practical choice for service vehicles, fabrication shops, and fixed workstation installations. A licensed welding professional or trained maintenance technician typically handles installation and commissioning.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than conventional reels for improved operator safety
• External 90-degree full-flow dual-ported brass swivel with Viton seals routes both hose connections from the same side of the reel
• Super Hub dual axle support system provides increased stability, reduced vibration, and greater structural integrity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve durability
• Solid one-piece steel base and support post with no-weld single pedestal design for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life

Compatibility

Designed for use with 1/4 inch ID twin-line welding hose up to 100 feet in length as an OEM-style spring-driven welding hose reel for shop, industrial, and mobile service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas distribution systems and applicable safety codes. Shut off all gas supply lines and relieve hose pressure completely before mounting or servicing the reel. Ensure the mounting surface is rated for the combined weight of the reel and fully loaded hose. The spring motor cartridge is removable for maintenance without detaching the reel from its mount.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length Capacity: 100 feet
• Retraction System: EZ-Coil spring-driven, enclosed cartridge-style motor
• Swivel: External 90-degree dual-ported brass with Viton seals
• Disc Construction: CNC robotically spun and ribbed with rolled edges
• Base Material: Solid one-piece steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 62 pounds
• UPC: 674255730151

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHWL-1100
