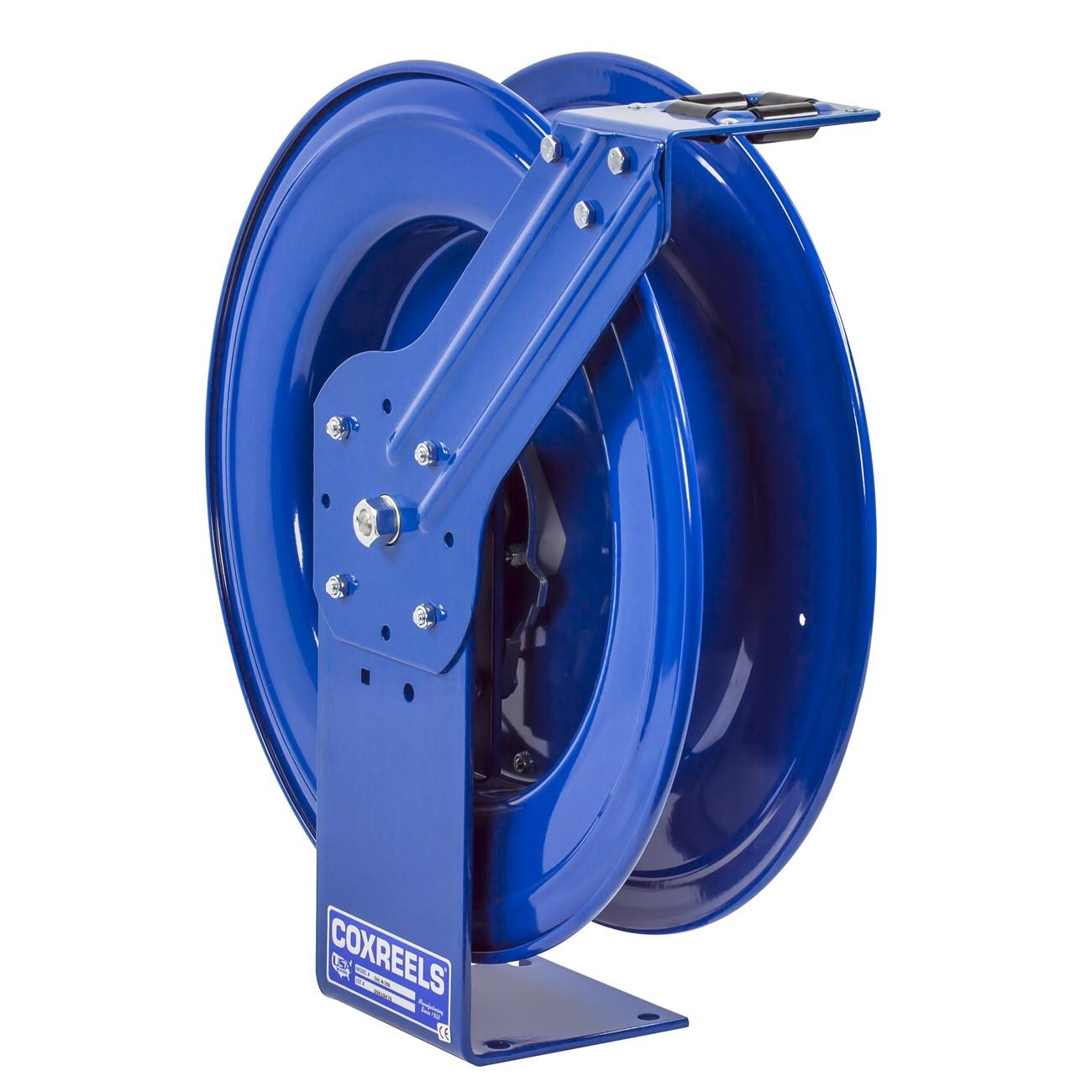

Coxreels EZ-SHL-475 Spring Driven Hose Reel 75 Ft

Product Description

The COXREELS EZ-SHL-475 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding trade applications where reliability and fast retraction matter. The reel features an EZ-COIL enclosed cartridge-style motor that retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back risk on the job. It accommodates 1/2 inch ID, 3/4 inch OD hose up to 75 feet in length. The larger chassis and frame of the SH Series are designed to handle longer hose runs and larger diameters compared to standard P Series reels. Licensed contractors and service technicians in HVAC, plumbing, and industrial maintenance are the primary installers of this unit.

The EZ-SHL-475 is suited for wall, floor, ceiling, and vehicle mounting positions, making it adaptable across shop, fleet, and field service environments. The multi-position guide arm adjusts to fit each mounting orientation without requiring major modifications. The dual axle Super Hub support system reduces vibration and improves structural stability during retraction and payout cycles. This reel is appropriate for residential and commercial service settings where a durable, semi-automatic hose management solution is needed at a fixed or mobile service point.

Key Features

• EZ-COIL cartridge motor retracts hose up to 80 percent slower than conventional reels for improved operator safety
• Lubricated and enclosed cartridge-style motor is removable for maintenance without removing the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• 1/4 inch steel single-pedestal base with one-piece steel support post and no-weld construction for maximum stability
• CPC powder coat finish is chip resistant and rust inhibiting; permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement or direct-fit spring-driven hose reel for stationary and vehicle-mounted service installations requiring 1/2 inch ID hose up to 75 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting requirements for the intended surface type. Shut off all fluid supply lines and relieve system pressure before mounting or servicing the reel. Secure the pedestal base to a structurally sound surface using fasteners appropriate for the load rating of the assembly. Refer to local codes and the reel manufacturer documentation for swivel fitting torque and NPT connection guidance.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 75 feet
• Reel Length: 25 inches
• Reel Width: 13 inches
• Reel Height: 27 inches
• Weight: 57 pounds
• Base Material: Steel
• Swivel Material: Solid Brass
• Drive Type: Spring Driven
• Finish: CPC Powder Coat
• UPC: 674255729711

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHL-475
