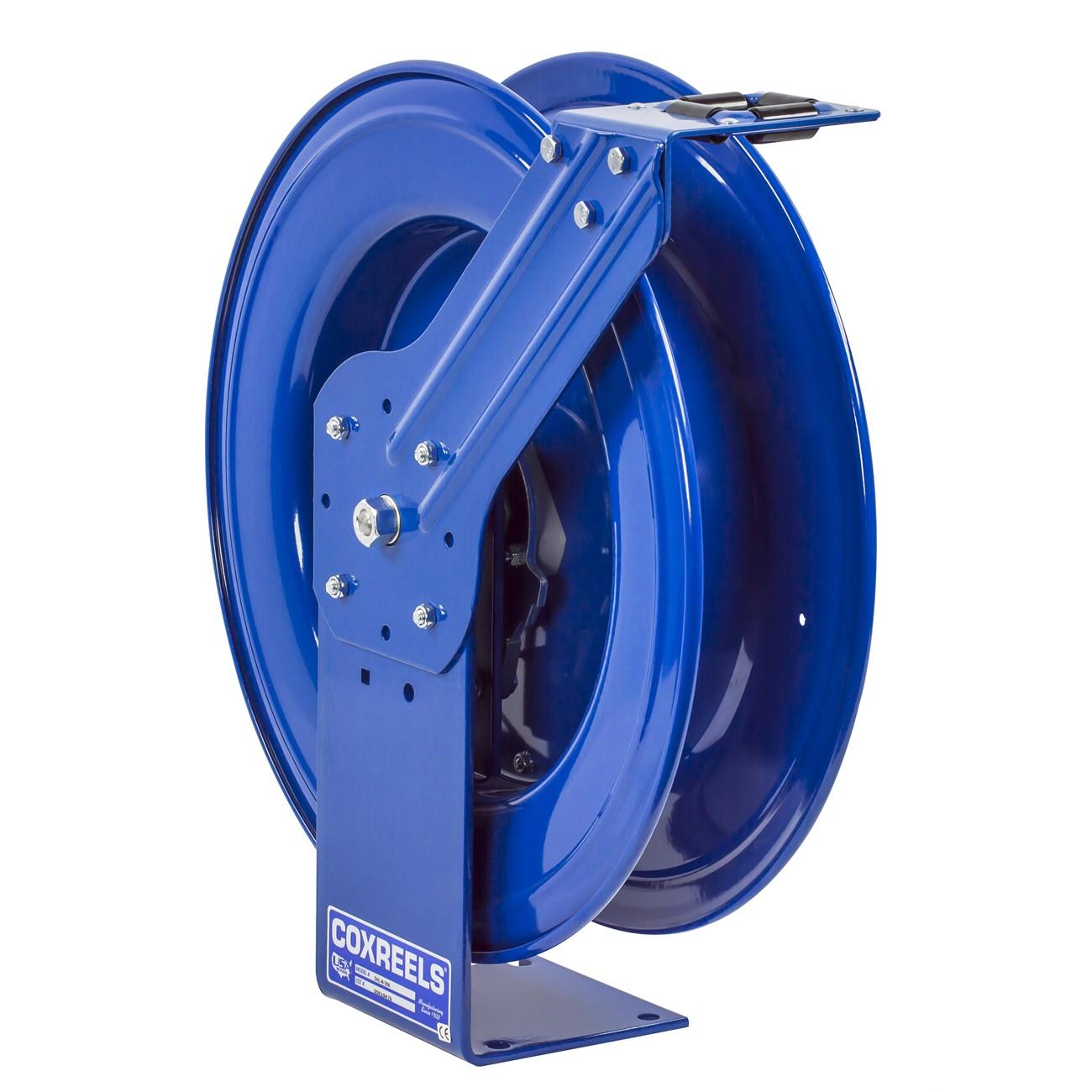

Coxreels EZ-SHL-4100 Spring Driven Hose Reel

Product Description

The COXREELS EZ-SHL-4100 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding trade and industrial applications. It features a 1/2 inch ID hose passage, accommodates up to 100 feet of hose, and is engineered around Coxreels original dual axle Super Hub support system. That dual axle design reduces vibration, increases operational stability, and strengthens the overall structural integrity of the reel. The EZ-COIL retraction system slows hose retrieval to up to 80 percent slower than conventional spring reels, reducing snap-back risk during use. Licensed contractors, fleet mechanics, and service technicians handling air, water, or compatible fluid lines will find this reel suited for fixed and mobile installations alike.

The EZ-SHL-4100 is appropriate for use in automotive service bays, industrial facilities, fleet maintenance garages, and similar environments where a high-capacity, spring-retract hose reel is needed. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across a wide range of installation layouts. The large-chassis SH Series frame is designed to handle longer hose lengths and larger hose diameters compared to standard compact reels, supporting heavier-duty service cycles.

Key Features

• EZ-COIL spring retraction system retracts up to 80 percent slower than conventional reels for improved operator safety
• Dual axle Super Hub support system reduces vibration and increases structural stability during operation
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Lubricated, enclosed cartridge-style spring motor is fully removable for maintenance without special tools
• Heavy duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Single pedestal steel base with no-weld construction and CPC powder coat finish for chip resistance and corrosion inhibition

Compatibility

Designed as an OEM-style spring-driven hose reel replacement or new installation unit suitable for 1/2 inch ID hose applications in industrial and trade service environments.

Installation Notes

Installation is typically performed by a qualified mechanic or maintenance technician. Before mounting, shut off and depressurize any fluid or air supply lines that will connect to the reel. Secure the mounting base to a structurally adequate surface using hardware rated for the combined weight of the reel and a full hose load. Verify that the guide arm position is set and locked before pressurizing the system for the first time.

Technical Specifications

• Hose ID: 1/2 inch
• Hose Capacity: 100 feet
• Reel Length: 25 inches
• Reel Width: 13 inches
• Reel Height: 27 inches
• Weight: 66 pounds
• Swivel Type: Machined brass 90-degree full-flow NPT
• Drive Type: Spring driven
• Finish: CPC powder coat
• UPC: 674255729728

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHL-4100
