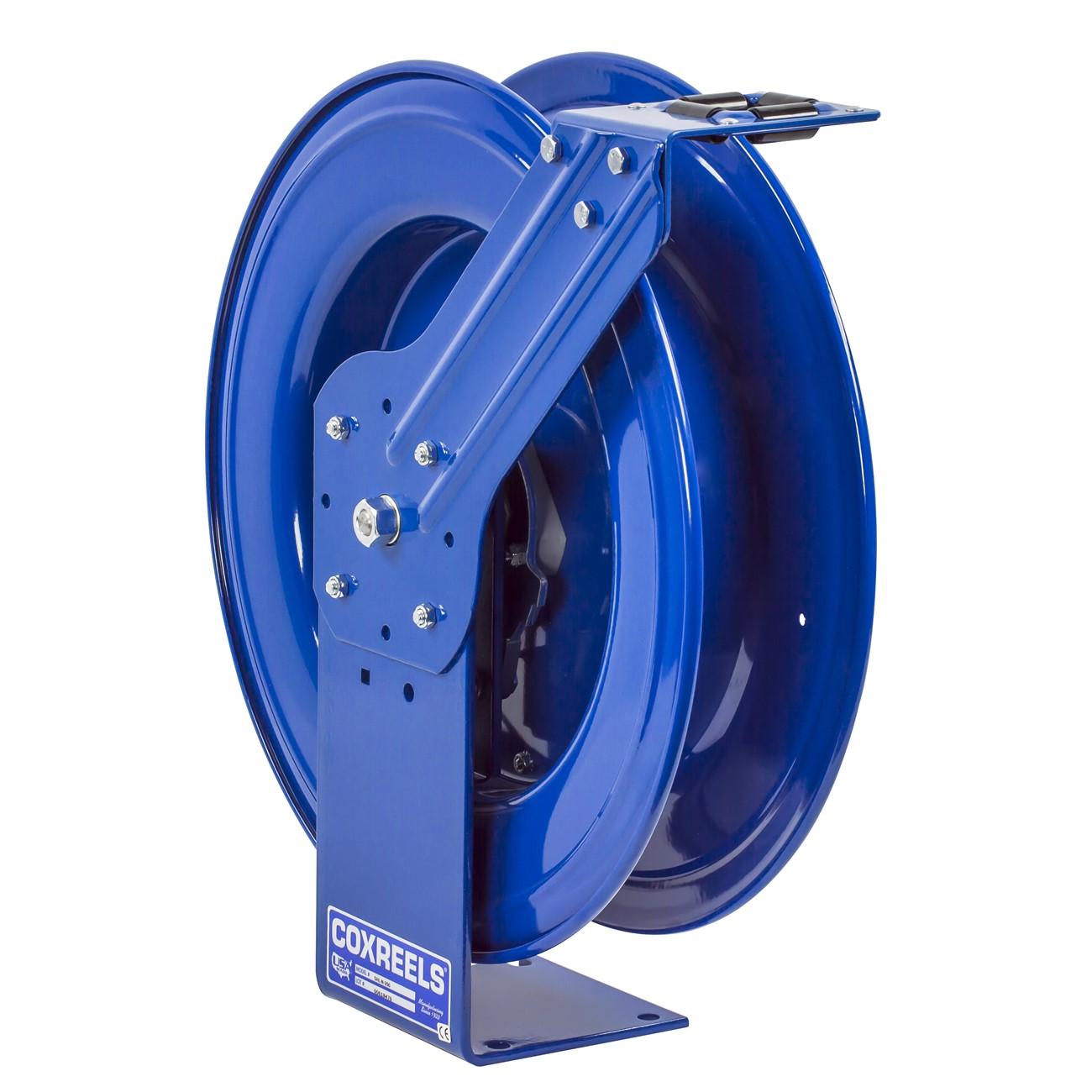

Coxreels EZ-SHL-375 Spring Driven Hose Reel 3/8 in 75 Ft

Product Description

The COXREELS EZ-SHL-375 is a spring-driven hose reel in the SH Series Super Hub line, built for demanding trade and industrial service environments. It features a dual axle support system that increases stability during operation, reduces vibration, and strengthens the structural integrity of the reel. The EZ-Coil retraction system slows rewind speed by up to 80 percent compared to conventional spring reels, reducing hose wear and operator risk. The reel is designed for 3/8 inch ID hose with a 5/8 inch OD and accommodates up to 75 feet of hose. Licensed plumbers, HVAC technicians, and general service contractors commonly install this unit in shops, service bays, and fleet vehicles.

The EZ-SHL-375 suits residential and commercial service applications where a reliable, retractable hose management solution is needed. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across a wide range of fixed and mobile installations. The larger SH Series chassis is specifically designed to handle longer hose lengths and larger hose diameters compared to the standard P Series reels. This makes it a practical choice for service trucks, compressor rooms, wash bays, and utility areas where hose routing and storage are a daily concern.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts hose up to 80 percent slower than conventional reels for improved safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and hose protection
• Super Hub dual axle support system reduces vibration and increases structural stability during operation
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip resistant and rust inhibiting; permanently lubricated precision bearings require no routine greasing

Compatibility

Designed for use with 3/8 inch ID, 5/8 inch OD hose up to 75 feet in length. Suitable for air, water, and similar service fluid applications consistent with the SH Series reel design.

Installation Notes

Installation is typically performed by a qualified technician or maintenance professional using standard hand tools. Before servicing or replacing the reel, shut off the supply line and relieve all pressure from the hose. Mount the reel to a structurally sound surface rated to support the combined weight of the reel and a fully loaded hose. Consult local codes and the manufacturer instructions regarding mounting hardware torque and supply line connections.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Capacity: 75 feet
• Retraction Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 59 pounds
• UPC: 674255729698

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHL-375
