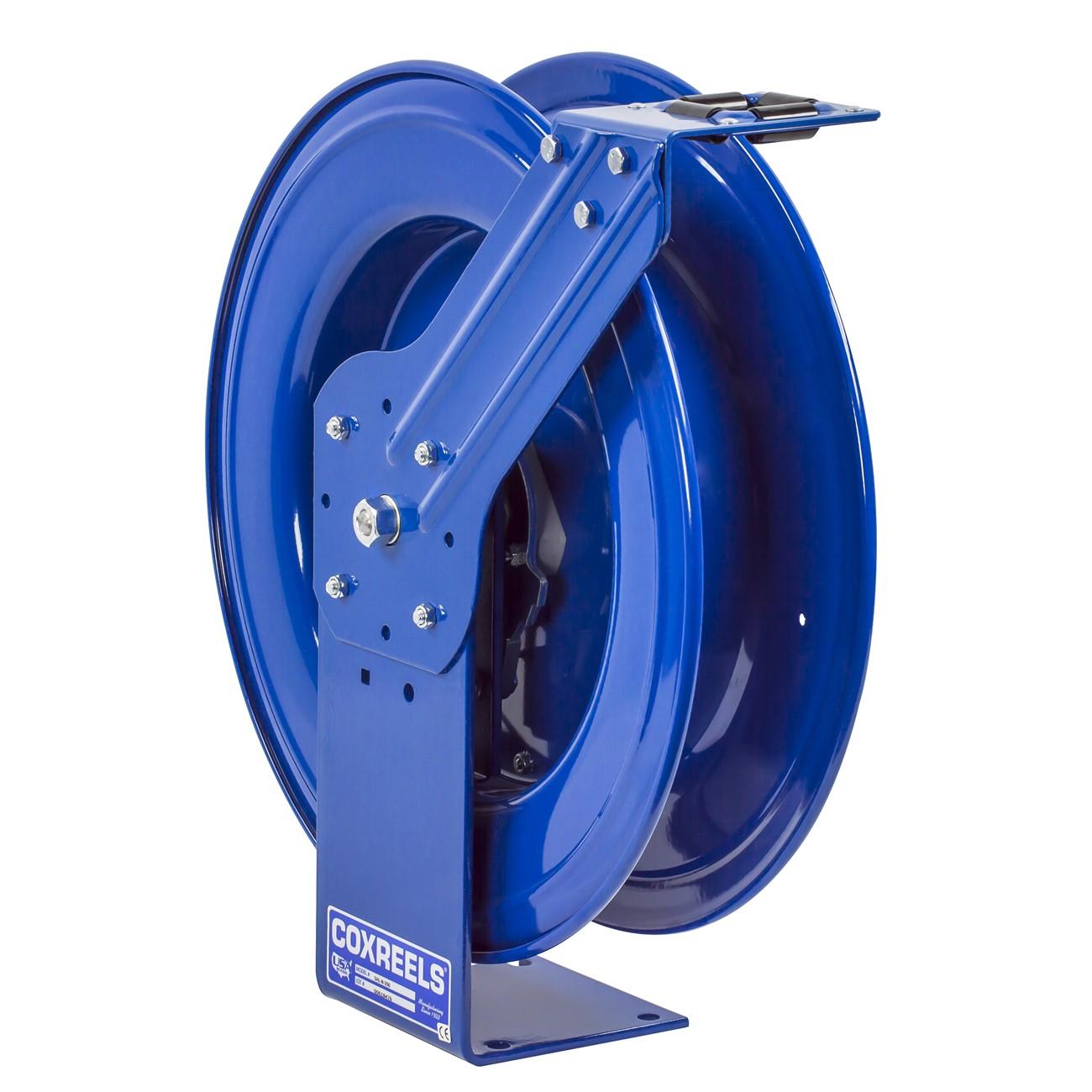

Coxreels EZ-SHL-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-SHL-350 is a spring-driven retractable hose reel from the SH Series Super Hub line, built for demanding trade and industrial applications. It accommodates 3/8 inch ID, 5/8 inch OD hose up to 50 feet in length. The reel features Coxreels patented EZ-COIL system, which retracts hose up to 80 percent slower than conventional spring-driven reels, reducing snap-back hazards during use. The larger chassis and dual-axle Super Hub support system improve structural stability and reduce vibration under load. Licensed trades and service professionals in HVAC, plumbing, and general industrial service install and operate this reel in fixed and mobile mount configurations.

The EZ-SHL-350 is suited for wall, floor, ceiling, and vehicle mounting, making it a practical choice for service vans, shop bays, and facility maintenance environments. The multi-position guide arm adjusts to fit each mounting orientation without requiring custom hardware. The one-piece steel base and support post construction — with no weld joints — provides a stable single-pedestal platform for repeated daily use. Typical applications include compressed air, water, and other fluid delivery in residential service, commercial maintenance, and light industrial settings.

Key Features

• EZ-COIL enclosed cartridge-style spring motor retracts up to 80 percent slower than standard reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• 1/4 inch solid one-piece steel base with no-weld single pedestal design and Super Hub dual-axle support system
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip resistant and rust inhibiting; precision bearings are permanently lubricated

Compatibility

Designed as an OEM-style replacement or direct-fit unit for spring-driven hose reel applications requiring 3/8 inch ID hose up to 50 feet in length with standard NPT swivel connections.

Installation Notes

Installation is typically performed by a qualified technician familiar with pressurized fluid or compressed air systems. Depressurize and disconnect the supply line before mounting or servicing the reel. Secure the base to a structurally rated surface using hardware appropriate for the mounting orientation — wall, ceiling, floor, or vehicle. Verify swivel connections are properly seated and leak-free before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Maximum Hose Length: 50 feet
• Spring Drive Type: EZ-COIL enclosed cartridge motor
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: 1/4 inch steel, no-weld single pedestal
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 44 pounds
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UPC: 674255724006

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHL-350
