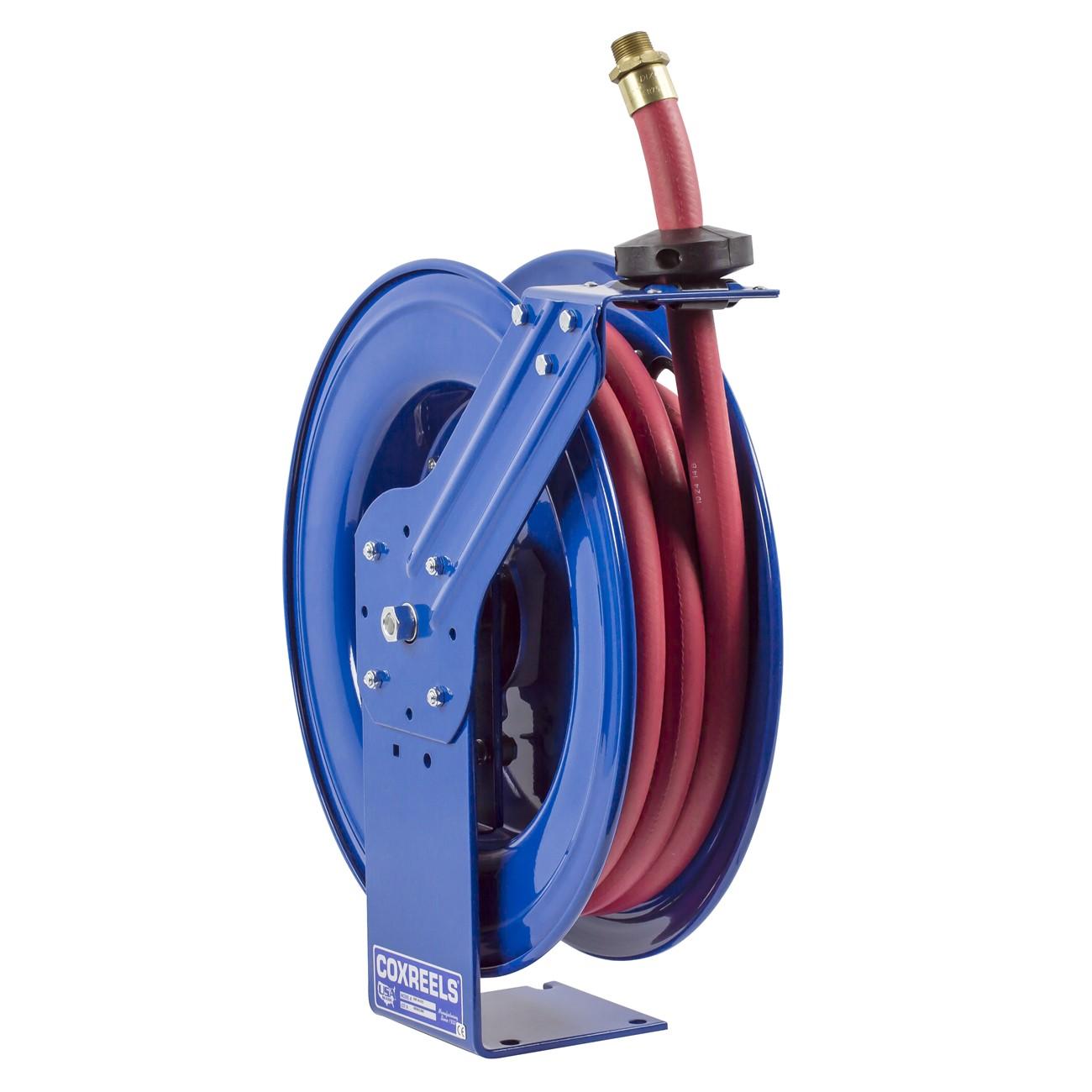

Coxreels EZ-SHF-525 Fuel Hose Reel 3/4 in 25 Ft

Product Description

The COXREELS EZ-SHF-525 is a spring-driven fuel hose reel from the SH Series Super Hub line, designed for reliable fuel dispensing in demanding service environments. Built on a large-chassis frame, it accommodates 3/4 inch ID hose up to 25 feet in length with a 1 3/16 inch OD. The EZ-Coil retraction system slows hose return to up to 80 percent slower than conventional spring reels, reducing snap-back hazard. A machined solid brass 90-degree full-flow NPT swivel is standard, purpose-built for fuel dispensing service. Licensed HVAC techs, plumbers, and fluid-handling technicians recognize this reel as a purpose-engineered unit rather than a general-duty hose manager.

The EZ-SHF-525 is suited for fueling stations, service bays, fleet maintenance facilities, and mobile service vehicles. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to tight or unconventional install spaces. The unit ships as a complete assembly ready for hose connection and includes a fuel dispensing hose, adjustable solid rubber hose stop, and permanently lubricated precision bearings. It is appropriate for use wherever a controlled, retractable fuel hose delivery point is required in a fixed or mobile service setting.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts hose up to 80 percent slower than standard reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel rated for fuel dispensing applications
• Super Hub dual axle support system reduces operational vibration and increases structural integrity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and operator
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chipping and rust for long service life in shop and outdoor environments

Compatibility

Designed as an OEM-style fuel hose reel for fixed and mobile fuel dispensing installations requiring 3/4 inch ID hose up to 25 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with fuel handling equipment and applicable fire and safety codes. Shut off fuel supply and depressurize the line before making any hose or swivel connections. Mounting hardware must be appropriate for the substrate type; verify load capacity for ceiling and vehicle installations before securing the pedestal base. The EZ-Coil cartridge is field-removable for maintenance without disassembling the full reel assembly.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1 3/16 inch
• Hose Length: 25 feet
• Drive Type: Spring driven (EZ-Coil)
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: 1/4 inch solid steel, single pedestal, no-weld construction
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 57 pounds
• UPC: 674255734159

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHF-525
