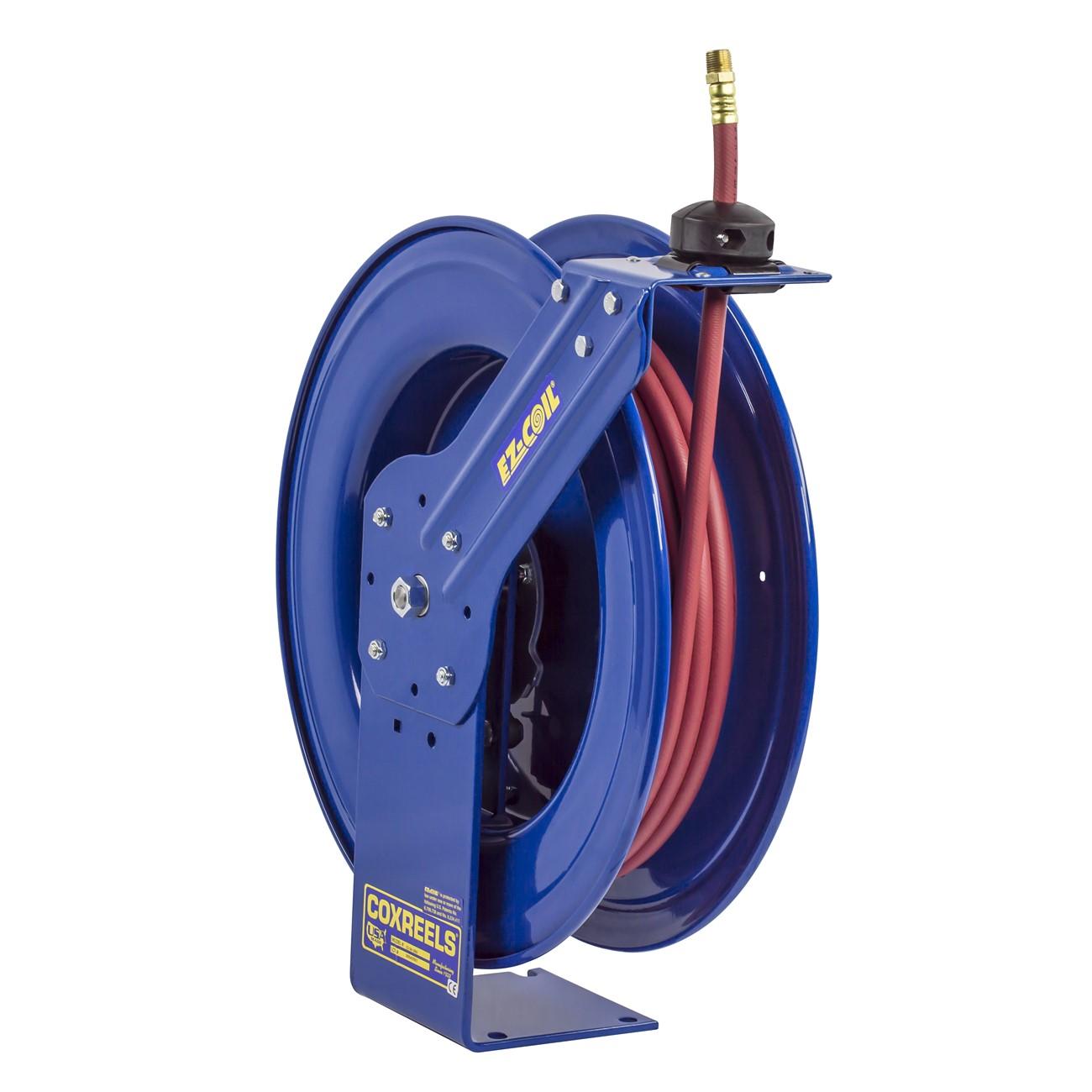

Coxreels EZ-SH-550 Spring Driven Hose Reel 3/4 in 50 Ft

Product Description

The COXREELS EZ-SH-550 is a spring-driven hose reel built on the SH Series Super Hub platform, designed for industrial and commercial fluid transfer applications. The reel features a dual axle support system that reduces vibration and reinforces structural integrity during retraction and deployment. The EZ-Coil spring motor is enclosed in a lubricated cartridge and retracts up to 80 percent slower than conventional reels, significantly reducing snap-back hazard. A machined solid brass 90-degree full-flow NPT swivel allows seal service and hose installation without dismounting the reel. Licensed plumbers, mechanics, and fluid-system technicians are the primary installers.

The EZ-SH-550 is suited for workshop, fleet service, industrial facility, and vehicle-mount installations where a 3/4 inch inner diameter hose line is required. The larger SH Series chassis accommodates longer hose lengths and larger hose diameters compared to the standard P Series frame. The multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting configurations, making this reel a practical fit across a wide range of service environments. It is sold as a single unit without hose included.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for improved operator safety
• Super Hub dual axle support system reduces vibration and increases structural stability during operation
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges protect hose and improve durability
• 1/4 inch solid one-piece steel base and support post with no-weld construction for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting; CPC powder coat finish resists chips and rust

Compatibility

Designed as an OEM-style spring-driven hose reel for 3/4 inch inner diameter hose lines in industrial, commercial, and vehicle-mount fluid transfer systems.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer systems and hose reel mounting requirements. Shut off and depressurize the fluid supply line completely before connecting or disconnecting hose fittings. Secure the reel to a structurally adequate surface using fasteners appropriate for the mounting substrate and load rating. Refer to local facility safety codes and the manufacturer installation guide for torque and anchoring requirements.

Technical Specifications

• Hose Inner Diameter: 3/4 inches
• Hose Outer Diameter: 1-1/16 inches
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: 1/4 inch solid steel, one-piece no-weld construction
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Weight: 69 pounds
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• UPC: 674255729681

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-550
