Coxreels EZ-SH-550-DF-BBX Def Hose Reel 3/4 Inch Id

Product Description

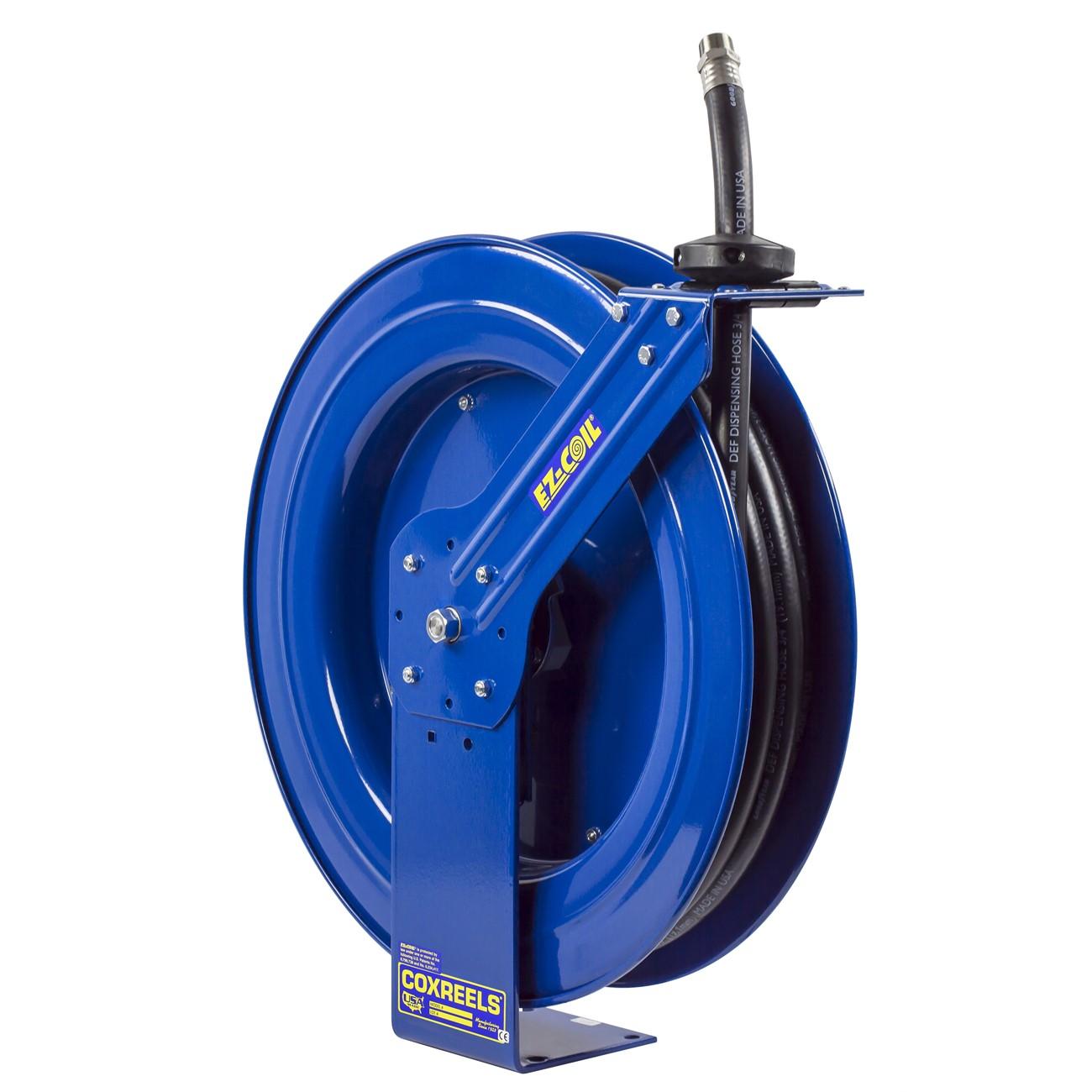

The COXREELS EZ-SH-550-DF-BBX is a heavy-duty single pedestal Diesel Exhaust Fluid (DEF) hose reel designed for reliable, safe DEF dispensing in both stationary and mobile service environments. Built on the SH Series platform, it features a stainless steel 90-degree full-flow NPT swivel with chemical-resistant Viton seals engineered specifically for DEF compatibility. The reel is equipped with Coxreels EZ-Coil retraction technology, which retracts up to 80 percent slower than conventional spring-driven reels, reducing snap-back risk during daily operation. The hose path is sized at 3/4 inch ID and 1-1/8 inch OD. At 76 pounds, this is a substantial unit built for permanent or semi-permanent installation where dependable DEF handling is required.

This reel is suited for commercial and fleet service facilities, truck stops, agricultural operations, and mobile service vehicles that require on-demand DEF dispensing. The single pedestal base supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to shop bays or service trucks. Technicians and fleet service professionals handling AdBlue or DEF in high-cycle environments will find the accessible swivel and enclosed cartridge motor particularly practical for routine maintenance intervals.

Key Features

• Stainless steel 90-degree full-flow NPT swivel with Viton seals for DEF chemical compatibility
• EZ-Coil enclosed cartridge motor retracts up to 80 percent slower than standard reels for improved operator safety
• Cartridge-style motor is fully removable for fast, safe field maintenance
• Heavy-duty CNC robotically spun and ribbed disc plates with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post, no-weld construction, with Super Hub dual axle support for reduced vibration
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chipping, rust, and corrosion for long service life

Compatibility

Designed as an OEM-specification DEF hose reel within the Coxreels SH-DEF Series, compatible with 3/4 inch ID DEF dispensing hose for Diesel Exhaust Fluid (AdBlue) service applications.

Installation Notes

Installation is typically performed by a qualified service technician or fleet maintenance professional. Before mounting or servicing, shut off all fluid supply and relieve any pressure in the line. The multi-position guide arm allows mounting to wall, floor, ceiling, or vehicle surfaces — confirm the mounting substrate can support a loaded reel weight exceeding 76 pounds before fastening. Follow all applicable facility codes and DEF handling guidelines when routing fluid lines to and from the reel.

Technical Specifications

• Hose ID: 3/4 inches
• Hose OD: 1-1/8 inches
• Weight: 76 pounds
• Swivel Material: Stainless Steel
• Seal Material: Viton
• Retraction Type: EZ-Coil enclosed cartridge motor
• Mounting Configurations: Wall, floor, ceiling, vehicle
• Finish: CPC powder coat
• Series: SH-DEF Single Pedestal
• UPC: 674255743403

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-550-DF-BBX
