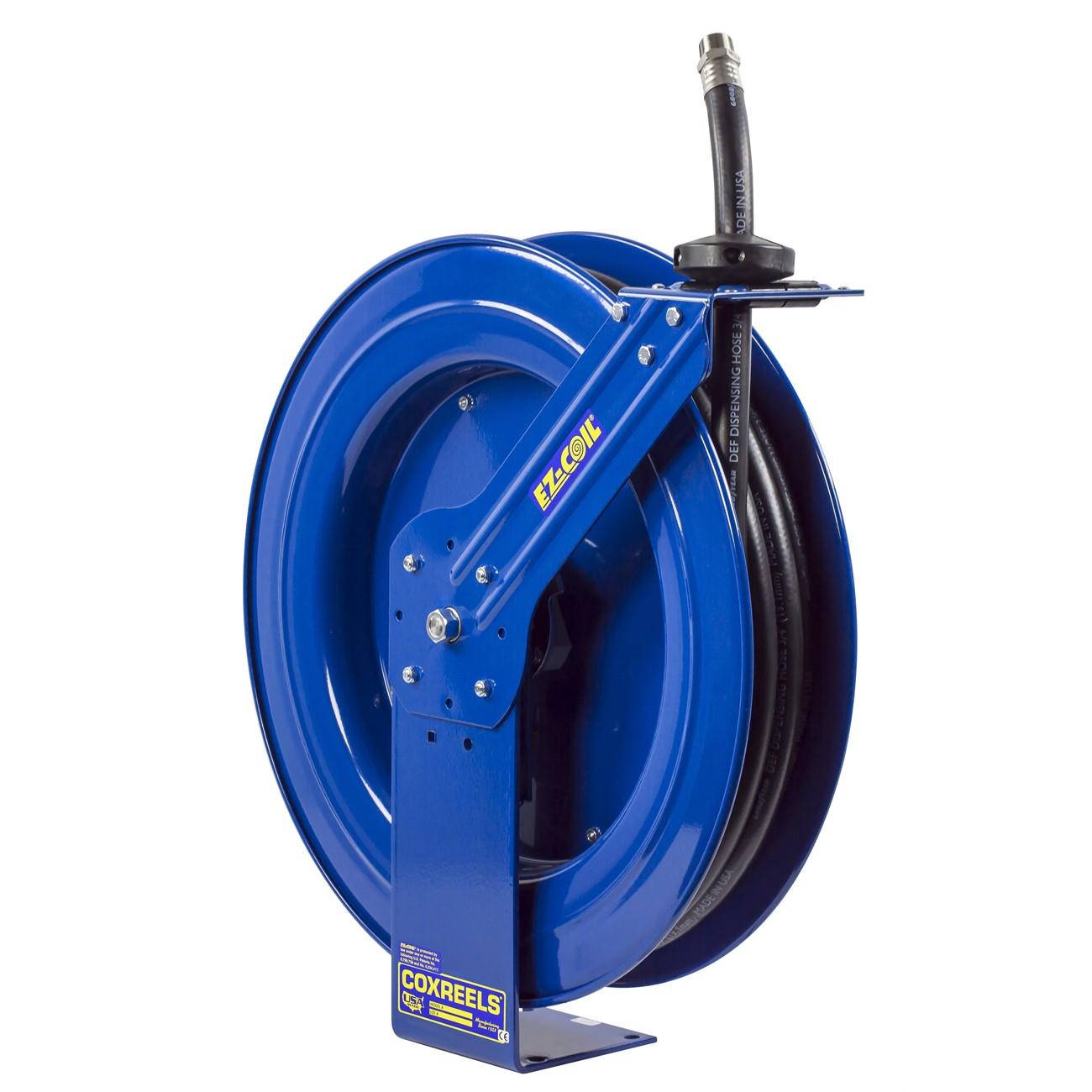

Coxreels EZ-SH-525-DF-BBX Def Hose Reel 3/4 Inch Id

Product Description

The COXREELS EZ-SH-525-DF-BBX is a spring-rewind hose reel from the Pure Flow Series, designed for Diesel Exhaust Fluid (DEF) dispensing applications. It features fully stainless steel fluid paths and a stainless steel swivel, keeping the fluid path non-contaminated and safe for DEF transfer. The EZ-Coil retraction system slows rewind speed up to 80 percent slower than conventional reels, reducing snap-back hazard during daily use. Weighing 57 pounds, this reel is built for fixed or vehicle-mounted installations where reliable, clean fluid transfer is required. Licensed plumbers, fleet service technicians, and industrial maintenance professionals are the primary installers.

The EZ-SH-525-DF-BBX is suited for commercial and industrial DEF dispensing stations, fleet maintenance facilities, and vehicle service bays. The hose inlet ID is 3/4 inch with a 1 1/8 inch OD, accommodating standard DEF dispensing hose. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable across a range of service environments. A DEF dispensing hose is included with the unit.

Key Features

• EZ-Coil spring rewind retracts up to 80 percent slower than conventional reels for operator safety
• Stainless steel 90-degree full-flow NPT swivel rated for DEF dispensing service
• Fully stainless steel air and fluid paths with food-quality grease for non-contaminated transfer
• CNC robotically spun and ribbed discs with rolled edges for hose protection and structural strength
• Solid one-piece steel base with single pedestal design and Super Huba dual axle support, no-weld construction
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish for chip resistance and rust inhibition; includes adjustable solid rubber hose stop

Compatibility

Designed as an OEM-style replacement or direct installation reel for DEF dispensing systems requiring a 3/4 inch ID hose connection in commercial and industrial service environments.

Installation Notes

Installation is typically performed by licensed plumbers or qualified industrial maintenance technicians familiar with fluid dispensing systems. Shut off all fluid supply and relieve line pressure before mounting or connecting the reel. Secure the mounting surface to support the reel weight and dynamic hose load; follow applicable IPC and local plumbing codes for fluid system connections. Do not use this reel with fluids incompatible with stainless steel wetted components.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1 1/8 inch
• Retraction Type: Spring Rewind (EZ-Coil)
• Fluid Path Material: Stainless Steel
• Swivel Type: 90-degree full-flow NPT stainless steel
• Mounting Positions: Wall, floor, ceiling, vehicle
• Finish: CPC powder coat
• Weight: 57 pounds
• UPC: 674255743380

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-525-DF-BBX
