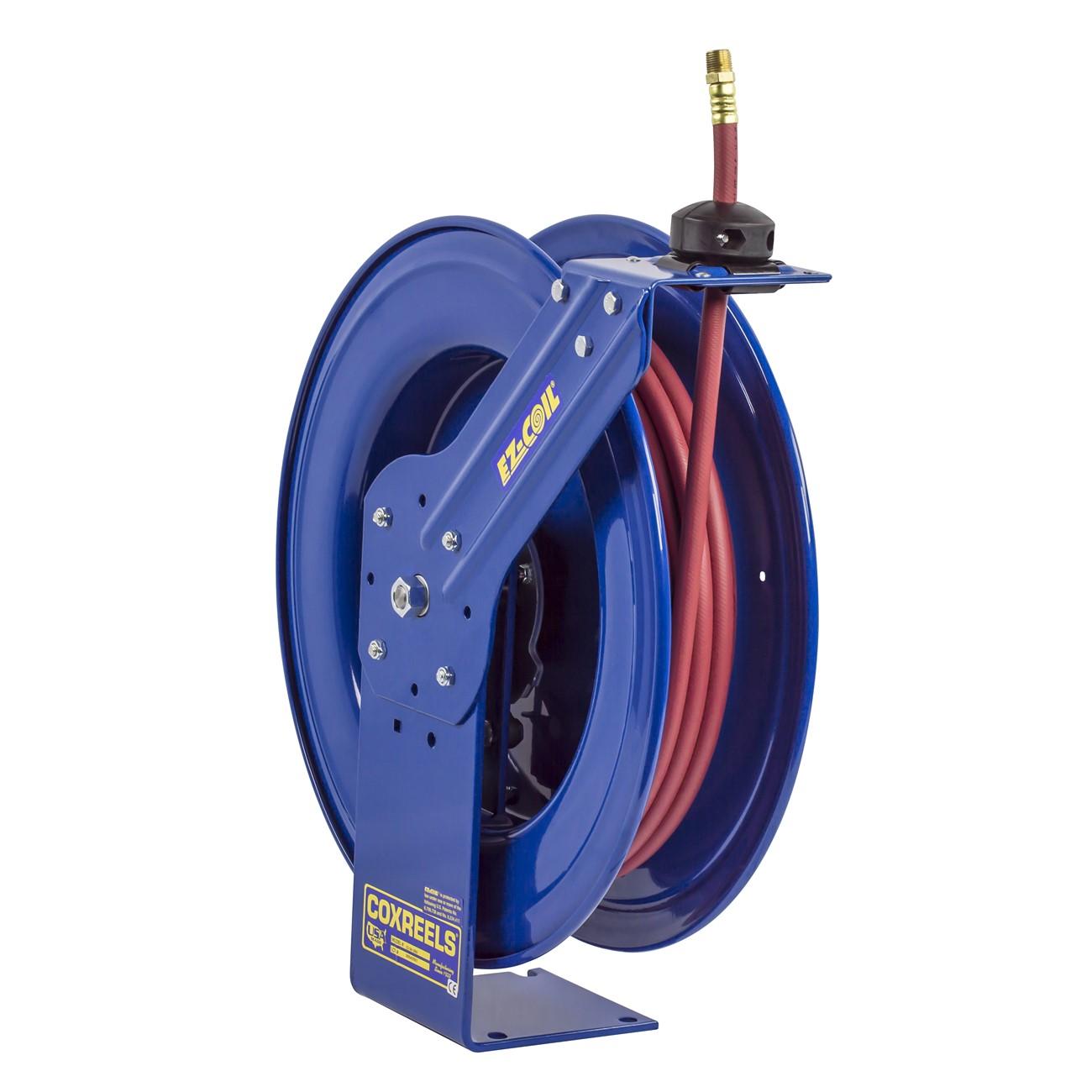

Coxreels EZ-SH-475 Spring Driven Hose Reel 1/2 in Id

Product Description

The COXREELS EZ-SH-475 is a spring-driven hose reel in the SH Series Super Hub line, engineered for demanding service environments where reliable, controlled hose retraction is essential. Built on a large chassis and frame to handle longer hose lengths and larger diameters, this reel features the patented EZ-Coil motor system that retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back hazards. The reel accepts 1/2 inch ID hose up to 75 feet in length and ships as a single unit weighing 68 pounds. It is designed for installation by professional tradespeople in industrial, fleet maintenance, and commercial service settings.

The EZ-SH-475 suits applications requiring controlled retraction of fluid-transfer hose in fixed or vehicle-mounted configurations. The multi-position guide arm allows the reel to be mounted on walls, floors, ceilings, or vehicles, making it adaptable for shop bays, service trucks, and maintenance facilities. Its heavy-duty construction supports continuous-use environments where hose reel durability and operator safety are priorities.

Key Features

• Patented EZ-Coil enclosed cartridge motor retracts hose up to 80 percent slower than conventional spring reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Super Hub dual axle support system increases operational stability, reduces vibration, and strengthens structural integrity
• CNC robotically spun and ribbed discs with rolled edges provide greater strength, hose protection, and durability
• 1/4 inch steel single-pedestal base with one-piece no-weld construction for maximum stability
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 1/2 inch ID hose up to 75 feet in length; the multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid-transfer hose systems and the mounting surface requirements for the intended application. Shut off and depressurize the fluid supply line completely before connecting or disconnecting hose at the swivel inlet. Ensure the mounting surface and fasteners are rated to support the reel weight of 68 pounds plus the weight of the hose and fluid load. Verify inlet connection thread type and size match the supply fitting before installation.

Technical Specifications

• Hose ID: 1/2 inch
• Hose Capacity: 75 feet
• Retraction Type: Spring driven with EZ-Coil patented motor
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: 1/4 inch steel, single pedestal, no-weld construction
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Weight: 68 pounds
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• UPC: 674255729667

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-475
