Coxreels EZ-SH-475-HV High Visibility Safety Hose Reel

Product Description

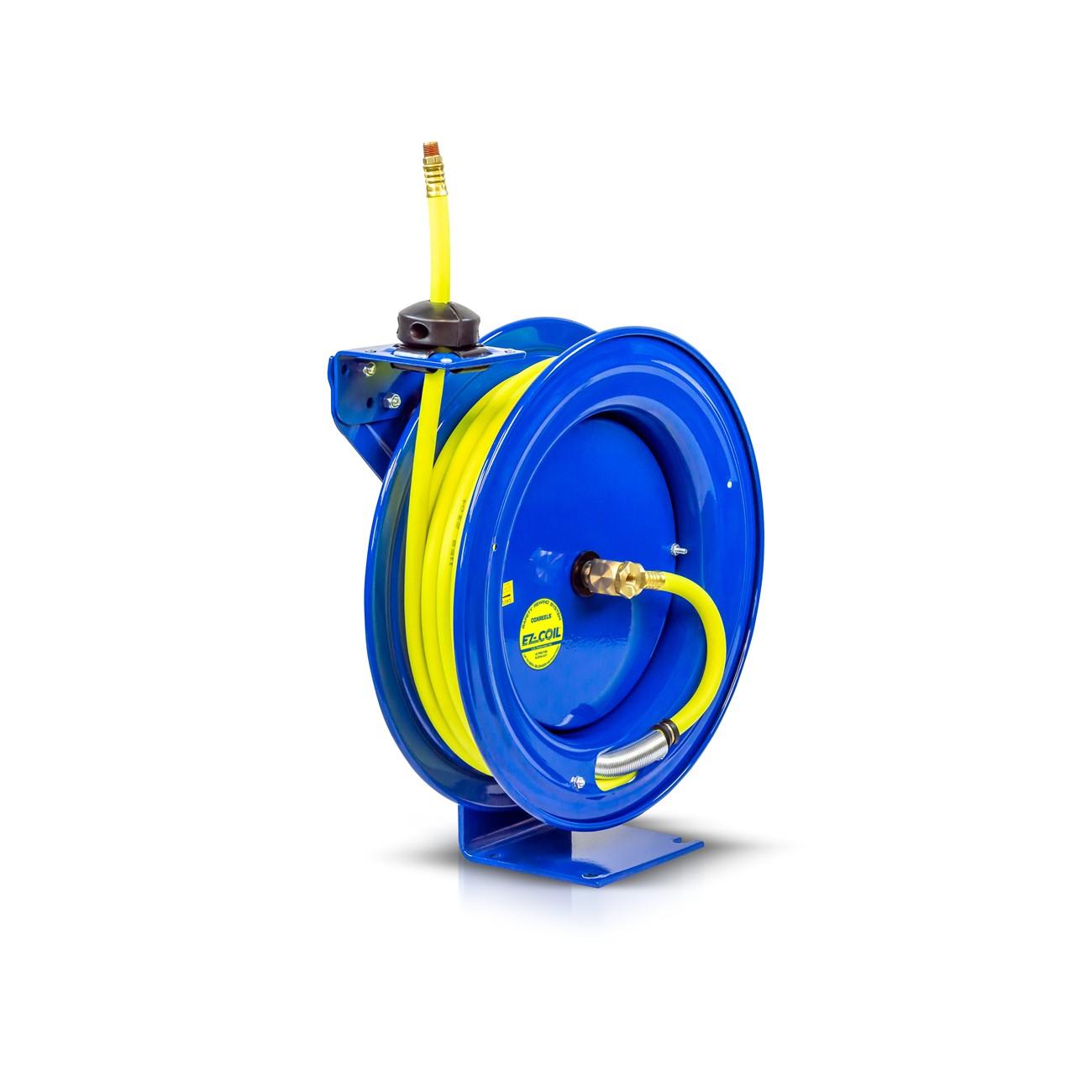

The COXREELS EZ-SH-475-HV is a high-visibility safety hose reel designed for controlled retraction in demanding trade environments. Built around COXREELS patented EZ-Coil system, it retracts up to 80% slower than conventional spring-driven reels, reducing snap-back risk for technicians and service personnel. The reel features a 1/2 inch ID hose channel, CNC robotically spun and ribbed steel discs with rolled edges, and a solid one-piece steel base with a single pedestal design. The hybrid bright yellow hose with white glossy stripe provides immediate visual awareness in busy shop or field settings. Licensed tradespeople working in HVAC, plumbing, fleet service, or industrial maintenance are the primary installers.

This reel is suited for commercial and industrial applications where hose retraction safety and high-visibility identification are priorities. Typical install scenarios include shop service bays, vehicle-mounted service rigs, and fixed wall, floor, or ceiling mounts in mechanical rooms. The adjustable guide arm accommodates wall, floor, ceiling, and vehicle mounting positions, giving installers flexibility across jobsite configurations. The hybrid PVC-rubber hose construction offers improved low-temperature flexibility, enhanced kink resistance, reduced coil memory, and a non-marring jacket surface that stacks cleanly without sticking.

Key Features

• EZ-Coil patented controlled retraction retracts up to 80% slower than conventional reels for improved operator safety
• High-visibility hybrid hose in bright yellow with white glossy stripe increases hose awareness in busy work environments
• Machined solid brass 90-degree full-flow NPT swivel supports simple seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for added strength, durability, and hose protection
• Solid one-piece steel base with single pedestal and no-weld support post provides maximum mounting stability
• Chip-resistant, rust-inhibiting CPC powder coat finish with permanently lubricated precision bearings for long service life

Compatibility

Designed as an OEM-style retractable safety hose reel suitable for wall, floor, ceiling, and vehicle mounting in commercial and industrial service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid distribution systems. Shut off and depressurize the supply line fully before connecting or disconnecting the reel. Secure the mounting base to a structural surface capable of supporting the reel weight and dynamic retraction loads. Consult applicable facility codes and the manufacturer installation guide for fastener and fitting requirements.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Base Material: Steel
• Swivel Material: Solid brass
• Retraction System: EZ-Coil enclosed cartridge-style motor, up to 80% slower retraction
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 68 pounds
• UPC: 674255752672

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-475-HV
