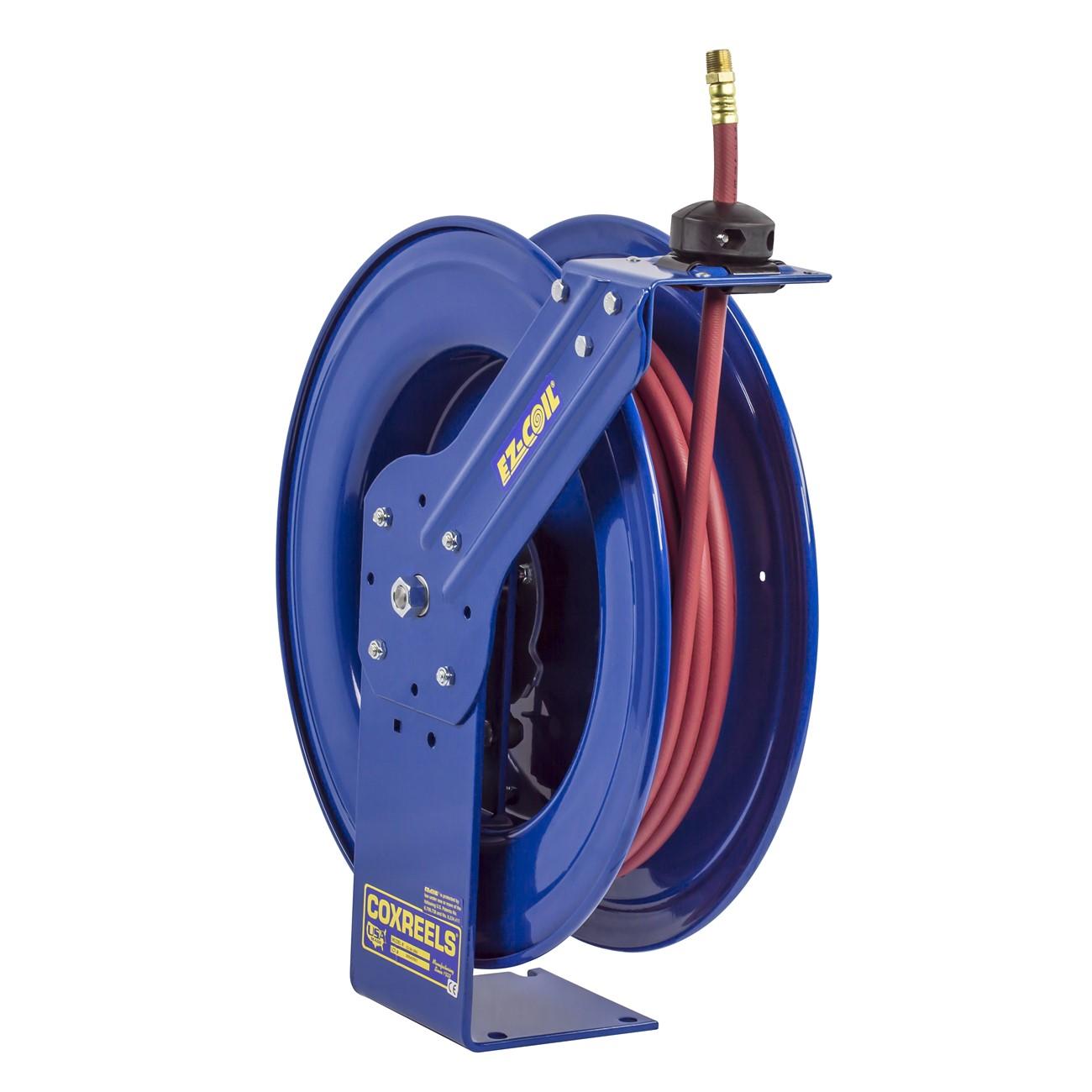

Coxreels EZ-SH-450 Spring Driven Hose Reel 50 Ft

Product Description

The COXREELS EZ-SH-450 is a spring-driven hose reel built on the SH Series Super Hub platform, designed for industrial and commercial fluid delivery applications. The reel features a dual axle support system that reduces vibration and increases structural stability during operation. Its EZ-Coil enclosed cartridge motor retracts hose up to 80% slower than conventional reels, reducing snap-back risk during retraction. CNC robotically spun and ribbed discs with rolled edges provide strength and hose protection. This reel is installed by industrial maintenance technicians, fleet service professionals, and shop mechanics who require a reliable, wall-, floor-, ceiling-, or vehicle-mounted hose management solution.

The EZ-SH-450 is suited for workshop, garage, vehicle, and light industrial service environments where a spring-retract hose reel is needed for consistent fluid or air delivery. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of fixed and mobile service setups. The 1/2 inch ID hose inlet accommodates standard 3/4 inch OD hose up to 50 feet in length.

Key Features

• EZ-Coil patented safety retraction system slows hose retrieval up to 80% compared to conventional spring reels
• Dual axle Super Hub support system reduces operational vibration and increases frame stability
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun ribbed discs with rolled edges protect hose and improve operator safety
• 1/4 inch steel single-pedestal base with one-piece no-weld construction for maximum stability
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style spring-driven hose reel replacement or new installation for industrial, commercial garage, and vehicle service applications requiring a 1/2 inch ID inlet and 50 foot hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid or compressed air system plumbing. Shut off and depressurize the supply line before connecting or disconnecting the reel. Mounting hardware must be appropriate for the substrate type — wall, ceiling, floor, or vehicle frame — to support the reel weight of 54 pounds plus hose and fluid load. Follow all applicable facility safety and plumbing codes when integrating into a pressurized system.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven (EZ-Coil)
• Swivel Type: Machined solid brass 90-degree full-flow NPT
• Base Material: 1/4 inch steel, single-pedestal no-weld construction
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 54 pounds
• UPC: 674255723078

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-450
