Coxreels EZ-SH-450-HV High Visibility Safety Hose Reel

Product Description

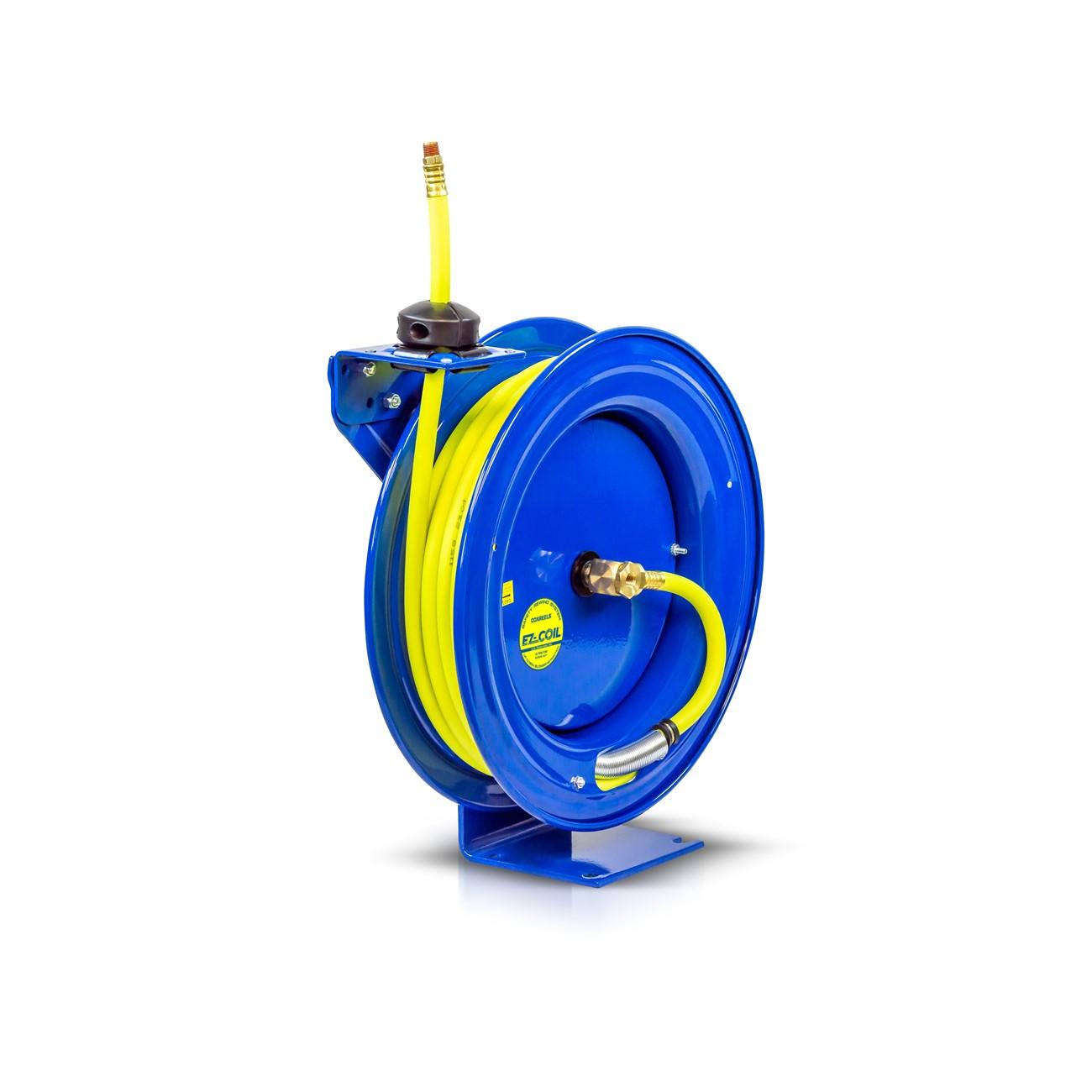

The COXREELS EZ-SH-450-HV is a high-visibility safety hose reel designed for industrial and commercial environments where hose awareness and controlled retraction are essential. Built on a solid one-piece steel base with a single pedestal design, this reel features the EZ-Coil controlled retraction system, which retracts up to 80 percent slower than conventional spring-driven reels. The unit ships with a hybrid bright yellow hose with a white glossy stripe, improving visibility and reducing trip hazard potential. A machined solid brass 90-degree full-flow NPT swivel allows fast hose installation and seal maintenance without removing the reel from its mount. The reel weighs 54 pounds and measures 20.5 inches long, 10.5 inches wide, and 22 inches tall.

The EZ-SH-450-HV is suited for facilities, service shops, and fleet maintenance applications where a retractable hose reel must meet heightened safety requirements. The hose features a PVC and rubber hybrid construction that delivers improved low-temperature flexibility, enhanced kink resistance, and reduced coil memory, allowing it to lay flat when not in use. The 1/2-inch ID and 3/4-inch OD hose sizing makes this reel appropriate for compressed air, water, and compatible fluid delivery lines in medium-duty service environments. The guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions.

Key Features

• EZ-Coil enclosed cartridge-style motor retracts up to 80 percent slower than conventional reels for controlled, safer hose recovery
• High-visibility hybrid hose with bright yellow body and white glossy stripe reduces trip hazard and improves situational awareness
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base with single pedestal and dual axle support hub, no-weld construction, for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement and direct-fit retractable hose reel for medium-duty compressed air, water, and compatible fluid delivery systems in wall, floor, ceiling, and vehicle mount configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with retractable hose reel systems. Before servicing or mounting, depressurize the supply line and relieve all hose tension. Secure the mounting surface to handle the combined load of the reel and hose under full retraction force. Confirm inlet connection thread type and size match the supply fitting before final assembly.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Swivel Type: 90-degree full-flow NPT brass swivel
• Disc Construction: CNC spun and ribbed steel with rolled edges
• Base Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 54 pounds
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• UPC: 674255752665

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-450-HV
