Coxreels EZ-SH-4100-HV High Visibility Safety Hose Reel

Product Description

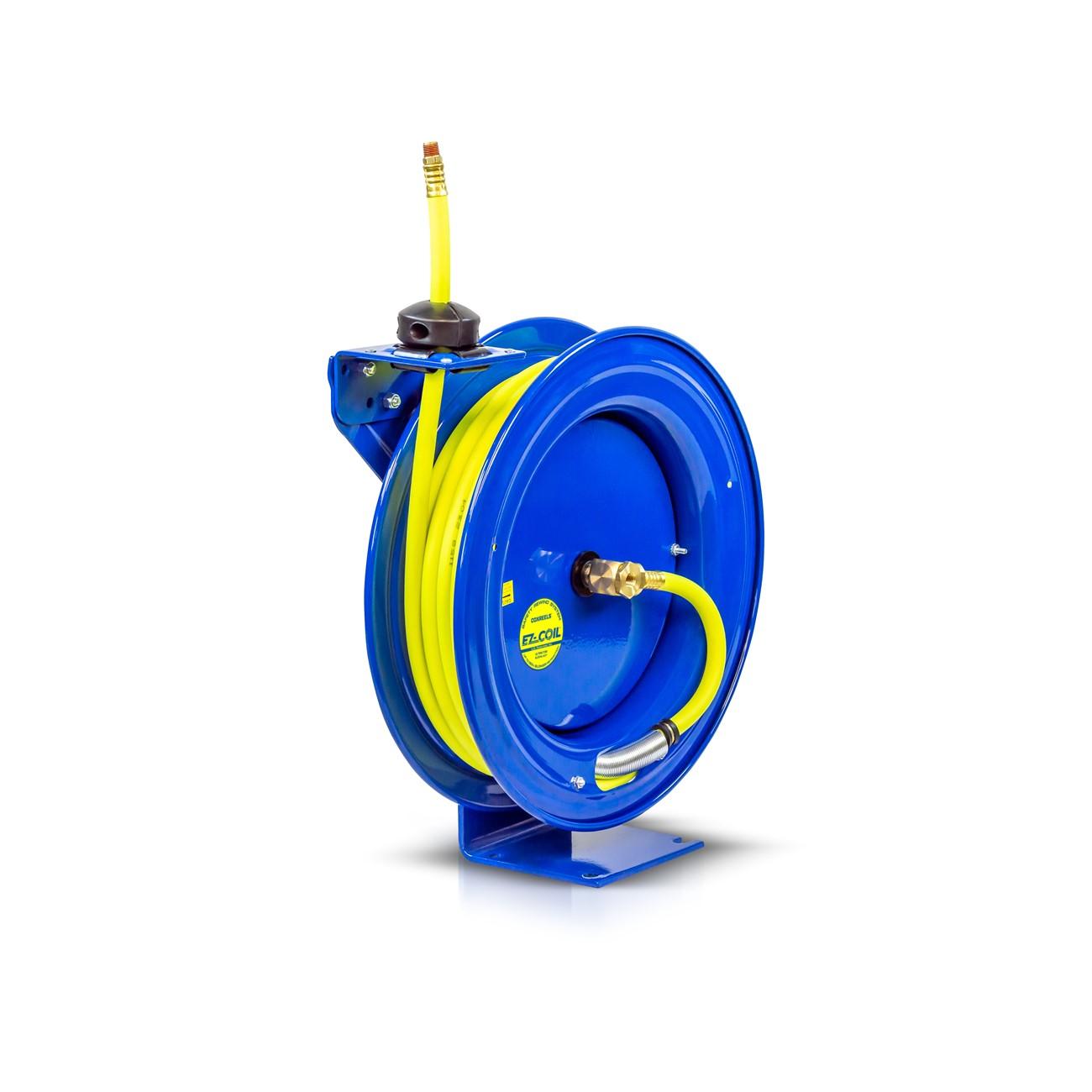

The COXREELS EZ-SH-4100-HV is a spring-retractable, high-visibility safety hose reel built for demanding industrial and trade environments. It features a bright yellow hybrid hose with a white gloss stripe, making it easy to spot and reducing trip hazards on busy job sites. The reel is constructed with heavy-duty CNC robotically spun and ribbed steel discs with rolled edges, and mounts on a solid one-piece steel base with a single pedestal support post. The EZ-Coil enclosed cartridge-style retraction motor retracts the hose up to 80 percent slower than conventional spring reels, reducing snap-back injuries and extending hose life. Licensed HVAC technicians, plumbers, and industrial maintenance crews rely on this reel where controlled retraction and high operator visibility are required.

The EZ-SH-4100-HV is suited for industrial, commercial, and fleet maintenance facilities where hose reels are mounted on walls, floors, ceilings, or service vehicles. The adjustable guide arm supports all four mounting orientations without modification. The 1/2 inch inner diameter hose path and 3/4 inch outer diameter hose make it compatible with common air, water, and fluid transfer lines used in shop and field service applications. Where high-visibility hose is specified for safety compliance, this reel provides a direct solution without requiring a separate hose retrofit.

Key Features

• EZ-Coil enclosed cartridge motor retracts up to 80 percent slower than conventional reels, reducing snap-back risk
• High-visibility hybrid hose (PVC and rubber blend) in bright yellow with white gloss stripe for enhanced job-site awareness
• Machined solid brass 90-degree full-flow NPT swivel allows hose replacement without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base and pedestal support post with no welds and dual axle support hub for maximum stability
• Adjustable guide arm mounts to wall, floor, ceiling, or vehicle; CPC powder coat finish resists chips and rust

Compatibility

Designed as an OEM-style spring-retractable hose reel for industrial and commercial shop environments requiring 1/2 inch ID hose path capacity with high-visibility hose and controlled retraction.

Installation Notes

Installation should be performed by a qualified technician following the mounting instructions supplied with the reel. Shut off and depressurize the fluid or air supply line completely before connecting or disconnecting the hose reel. Secure the mounting surface to support the reel weight of 81 pounds plus dynamic hose load. Reference applicable OSHA and facility safety standards for hose reel placement and clearance requirements.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Retraction Type: EZ-Coil spring-driven controlled retraction
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Material: Steel, one-piece no-weld construction
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Hose Material: Hybrid PVC and rubber blend, high-visibility yellow with white stripe
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Weight: 81 pounds
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• UPC: 674255752689

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-4100-HV
