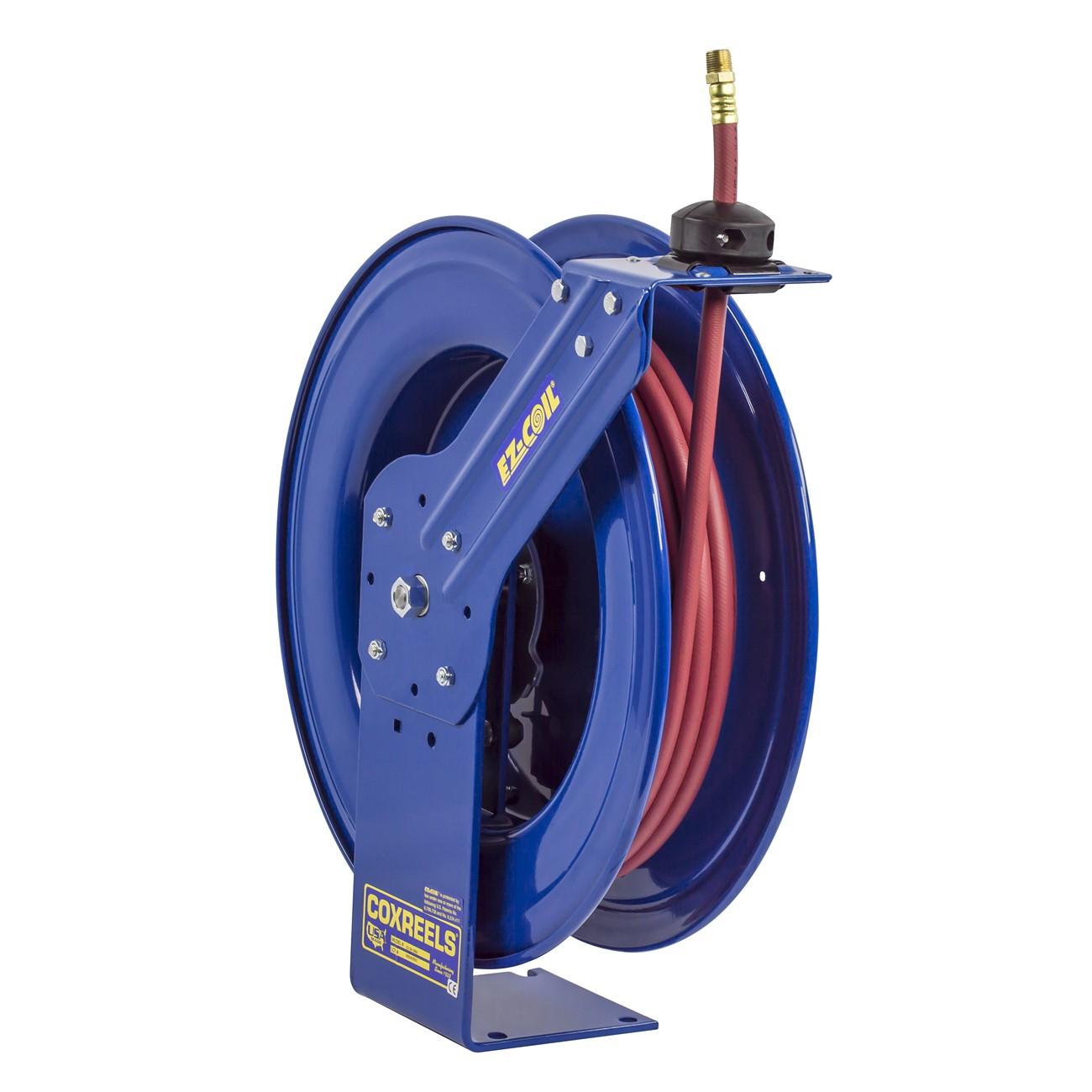

Coxreels EZ-SH-375 Spring Retractable Hose Reel

Product Description

The COXREELS EZ-SH-375 is a spring-driven, self-retracting hose reel built for demanding trade and industrial applications. Part of the SH Series Super Hub line, it accommodates hose with a 3/8 inch ID and 5/8 inch OD at lengths up to 100 feet. The reel features a heavy-gauge steel chassis and CNC robotically spun ribbed discs with rolled edges for structural durability and hose protection. The EZ-Coil enclosed cartridge motor retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back risk. At 50 pounds, this is a full-size unit suited for installation by mechanics, fleet technicians, and shop maintenance professionals.

The EZ-SH-375 is designed for stationary or vehicle-mounted service in automotive shops, fleet maintenance facilities, industrial plants, and equipment service bays. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations. The dual axle Super Hub support system minimizes vibration during hose extension and retraction, making it well-suited for high-cycle environments where reel stability directly affects workflow safety and efficiency.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for improved safety
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Super Hub dual axle support system reduces vibration and increases structural stability during operation
• 1/4 inch solid one-piece steel base with no-weld single pedestal design for maximum stability
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle; CPC powder coat finish resists chips and rust

Compatibility

Designed as an OEM-style spring-driven hose reel for 3/8 inch ID hose up to 100 feet in length; compatible with standard NPT hose fittings in shop, fleet, and industrial service installations.

Installation Notes

Installation is typically performed by a qualified mechanic or maintenance technician. Shut off and depressurize the air or fluid supply line before mounting or connecting the reel. Secure the steel base to a structurally adequate wall, floor, ceiling, or vehicle mount using fasteners rated for the combined weight of the reel and hose. Consult applicable facility and vehicle codes for mounting hardware requirements and hose pressure ratings before placing the reel in service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Maximum Hose Length: 100 feet
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 50 pounds
• Base Material: Steel, 1/4 inch solid one-piece
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Spring Motor: Lubricated enclosed cartridge, EZ-Coil
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-375
