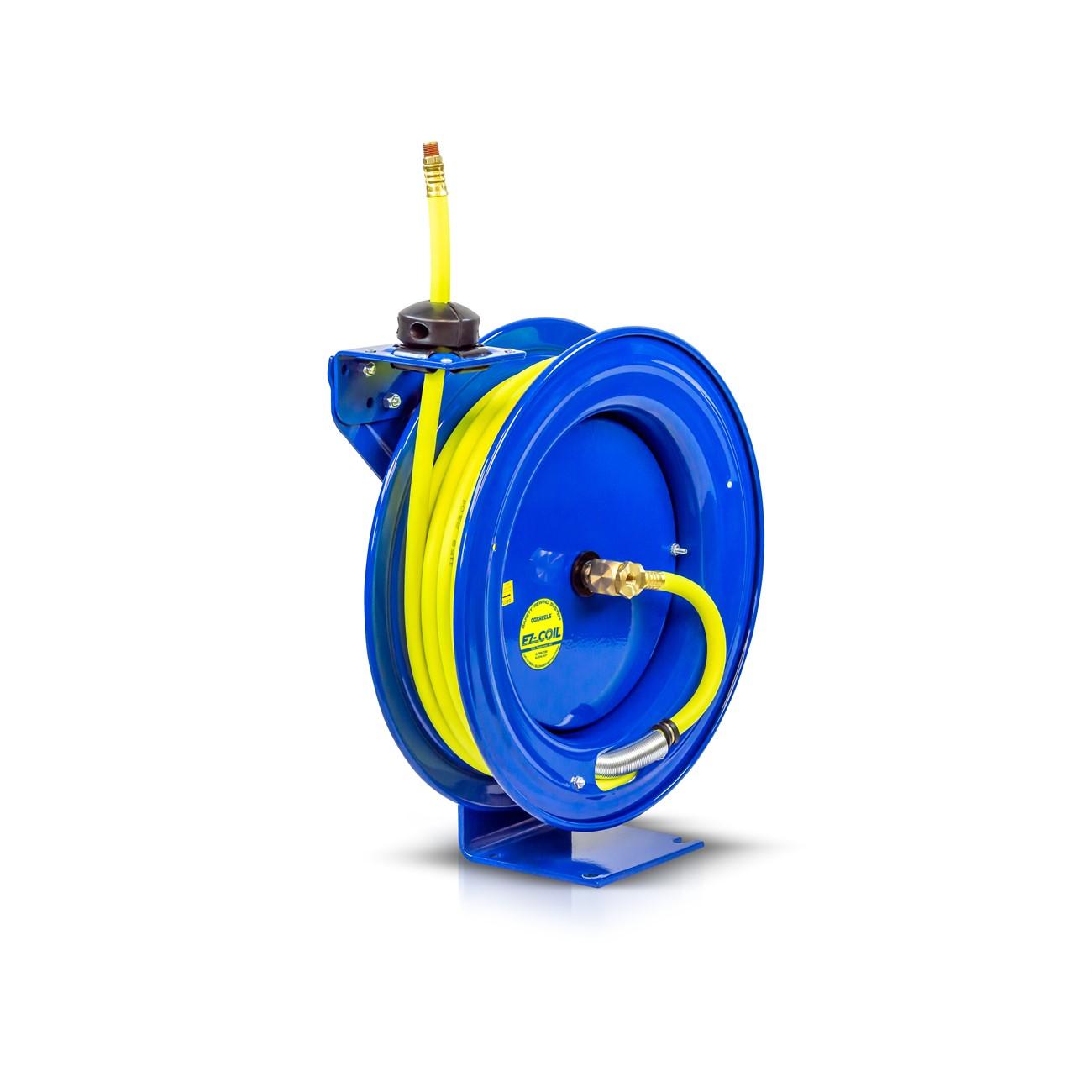

Coxreels EZ-SH-375-HV High Visibility Safety Hose Reel

Product Description

The COXREELS EZ-SH-375-HV is a spring-retractable safety hose reel built for trade environments where hose visibility and controlled retraction are critical. The reel features a 3/8 inch ID, 5/8 inch OD hybrid high-visibility yellow hose with a white stripe, designed to reduce trip hazards and increase awareness on the job site. EZ-Coil controlled retraction slows the rewind speed up to 80 percent compared to conventional spring reels, reducing snap-back risk. The unit ships as a single assembly weighing 68 pounds and is intended for installation by HVAC technicians, mechanics, plumbers, or industrial service professionals who require a durable, wall-, floor-, ceiling-, or vehicle-mounted hose management solution.

The EZ-SH-375-HV is suited for industrial, commercial, and fleet service applications where a retractable hose reel must perform reliably in variable temperatures and demanding conditions. The hybrid PVC-rubber hose construction delivers flexibility and kink resistance across a wide temperature range while keeping overall hose weight lower than full-rubber alternatives. The reel body is built from CNC robotically spun and ribbed steel discs, making it appropriate for permanent installation in service bays, maintenance facilities, and work vehicles. The guide arm adjusts for multiple mounting orientations without requiring a full reel removal from its mount.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than conventional reels, reducing snap-back hazard
• High-visibility hybrid hose in bright yellow with white stripe — PVC and rubber blend for reduced weight, improved flexibility, and enhanced kink resistance
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• 1/4 inch steel single-pedestal base with one-piece construction and no welds, paired with dual-axle super hub support
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style retractable hose reel for industrial, commercial, and fleet service installations requiring a 3/8 inch ID spring-retractable hose reel with high-visibility hose and multi-position mounting capability.

Installation Notes

Install by a qualified technician familiar with compressed air or fluid line systems and applicable facility codes. Shut off all supply pressure and depressurize the line completely before mounting or connecting the reel. Use appropriately rated NPT fittings and thread sealant compatible with the service fluid when making inlet connections. Verify that the mounting surface and fasteners are rated to support the reel weight and dynamic retraction loads before placing the unit in service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Type: Hybrid PVC and rubber blend, high-visibility yellow with white stripe
• Retraction Type: EZ-Coil spring-controlled, up to 80 percent slower than conventional reels
• Swivel: Machined solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Base Material: 1/4 inch solid steel, single-pedestal, no-weld construction
• Finish: CPC chip-resistant, rust-inhibiting powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 68 pounds
• UPC: 674255752641

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-375-HV
