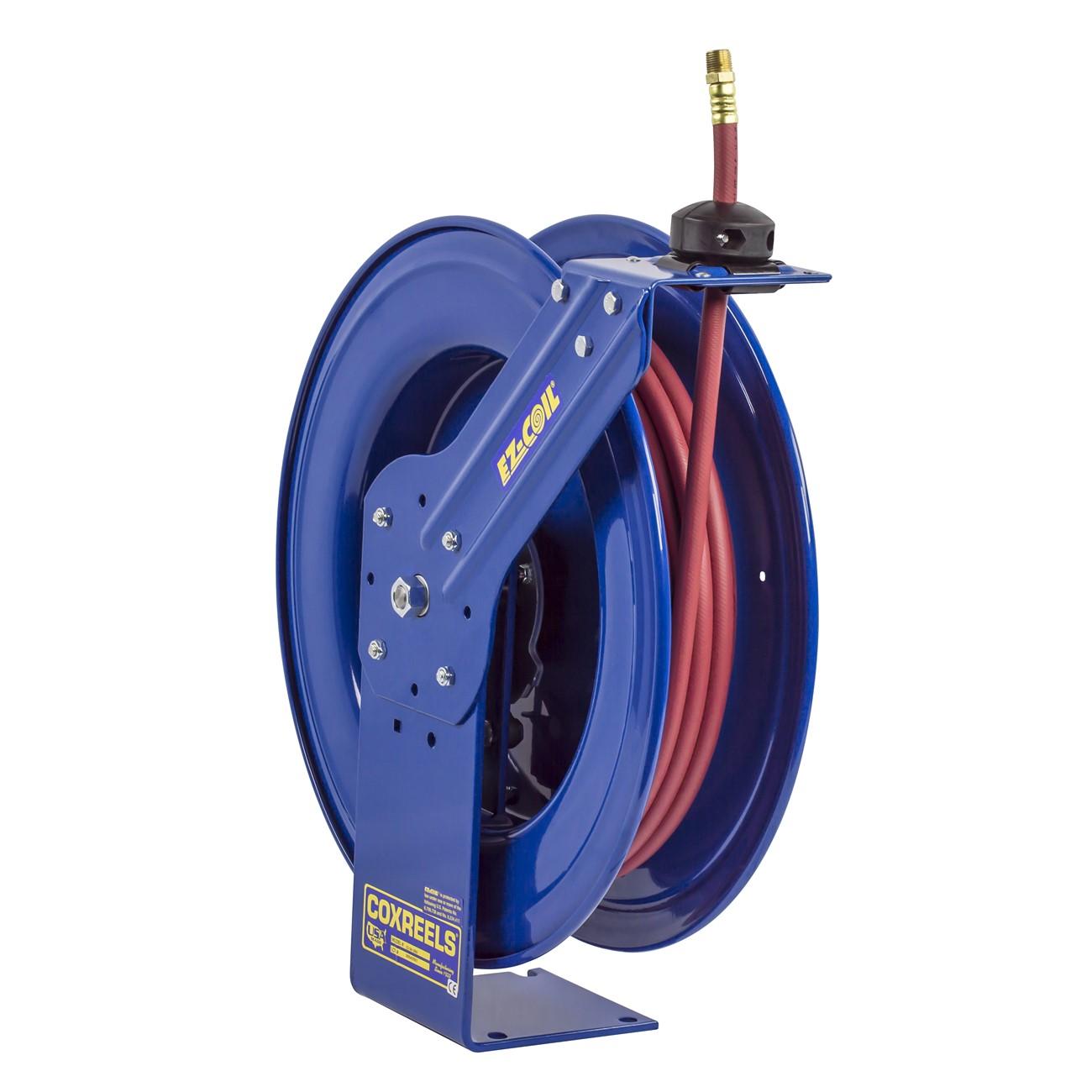

Coxreels EZ-SH-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-SH-350 is a spring-driven retractable hose reel from the SH Series Super Hub line, engineered for demanding service in industrial, commercial, and fleet maintenance environments. Built on a large chassis with a dual axle support system, it accommodates longer hose runs and larger hose diameters than compact-frame reels. The EZ-Coil spring motor is a lubricated, enclosed cartridge design that retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back risk. The reel accepts 3/8 inch ID, 5/8 inch OD hose up to 50 feet. Licensed trades and maintenance professionals install this unit in fixed or vehicle-mounted applications.

The EZ-SH-350 suits stationary shop installations, service trucks, and facility maintenance bays where a reliable, self-retracting hose reel is required. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across a wide range of job site configurations. The unit ships as a reel only; the user supplies compatible hose rated for the intended fluid service. It is well suited for air, water, and light fluid delivery in automotive, manufacturing, and contractor service applications.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels, reducing hose snap-back hazard
• Super Hub dual axle support system reduces vibration and increases structural stability during retraction
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• 1/4 inch solid one-piece steel base with no-weld single pedestal construction for maximum stability
• CPC powder coat finish is chip resistant and rust inhibiting; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement and direct-fit unit for 3/8 inch ID hose assemblies requiring a spring-driven retractable reel in industrial and commercial service environments.

Installation Notes

Installation is typically performed by a qualified maintenance technician or licensed contractor. Depressurize and disconnect all fluid supply lines before mounting or servicing the reel. Secure the mounting surface to a structural member capable of supporting the reel weight plus the loaded hose assembly. Verify that inlet fittings and swivel connections are rated for the intended working pressure before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Capacity: 50 feet
• Spring Motor Type: EZ-Coil enclosed cartridge, spring driven
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Base Material: 1/4 inch solid steel, single pedestal, no-weld
• Finish: CPC powder coat, chip and rust resistant
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 50 pounds
• UPC: 674255723061

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-350
