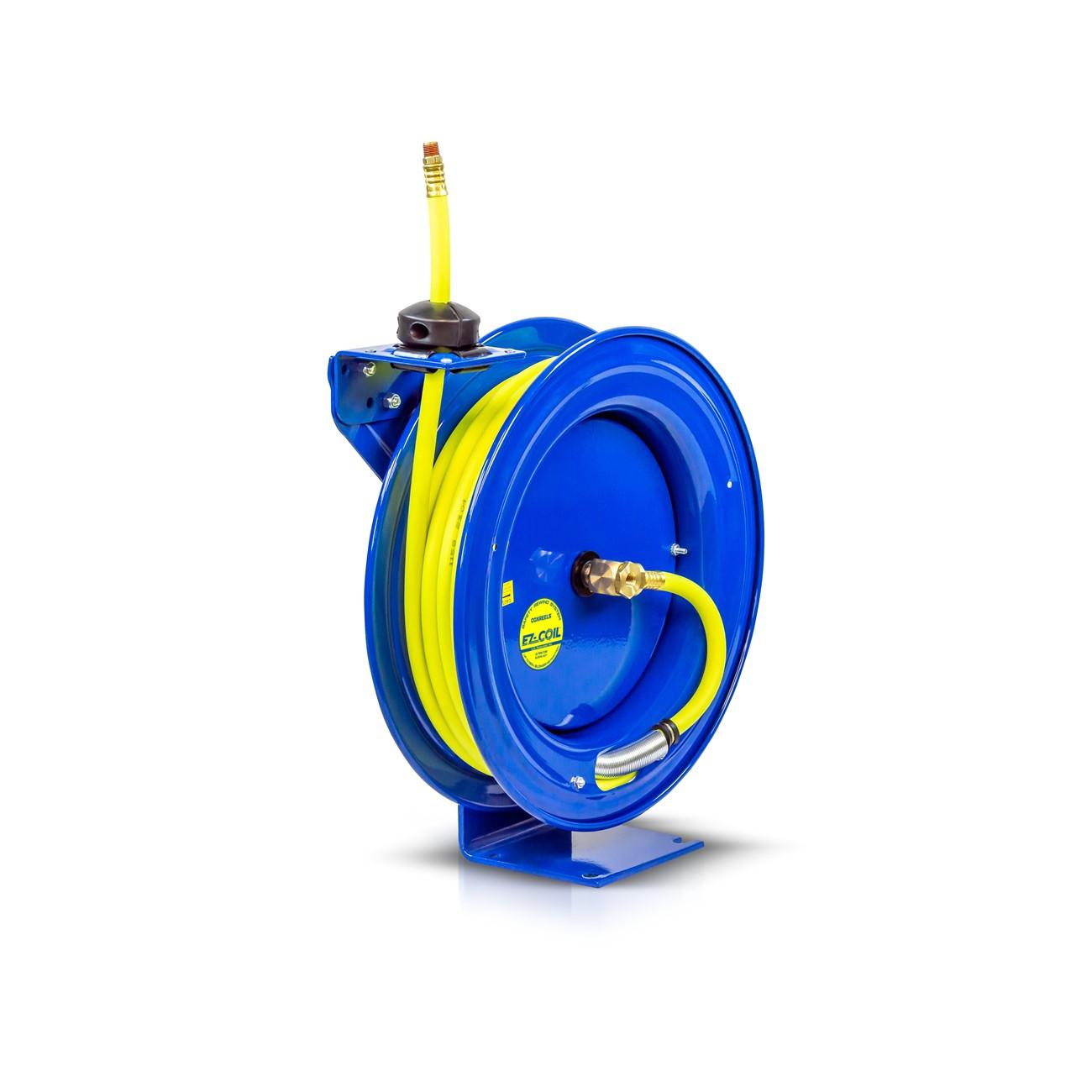

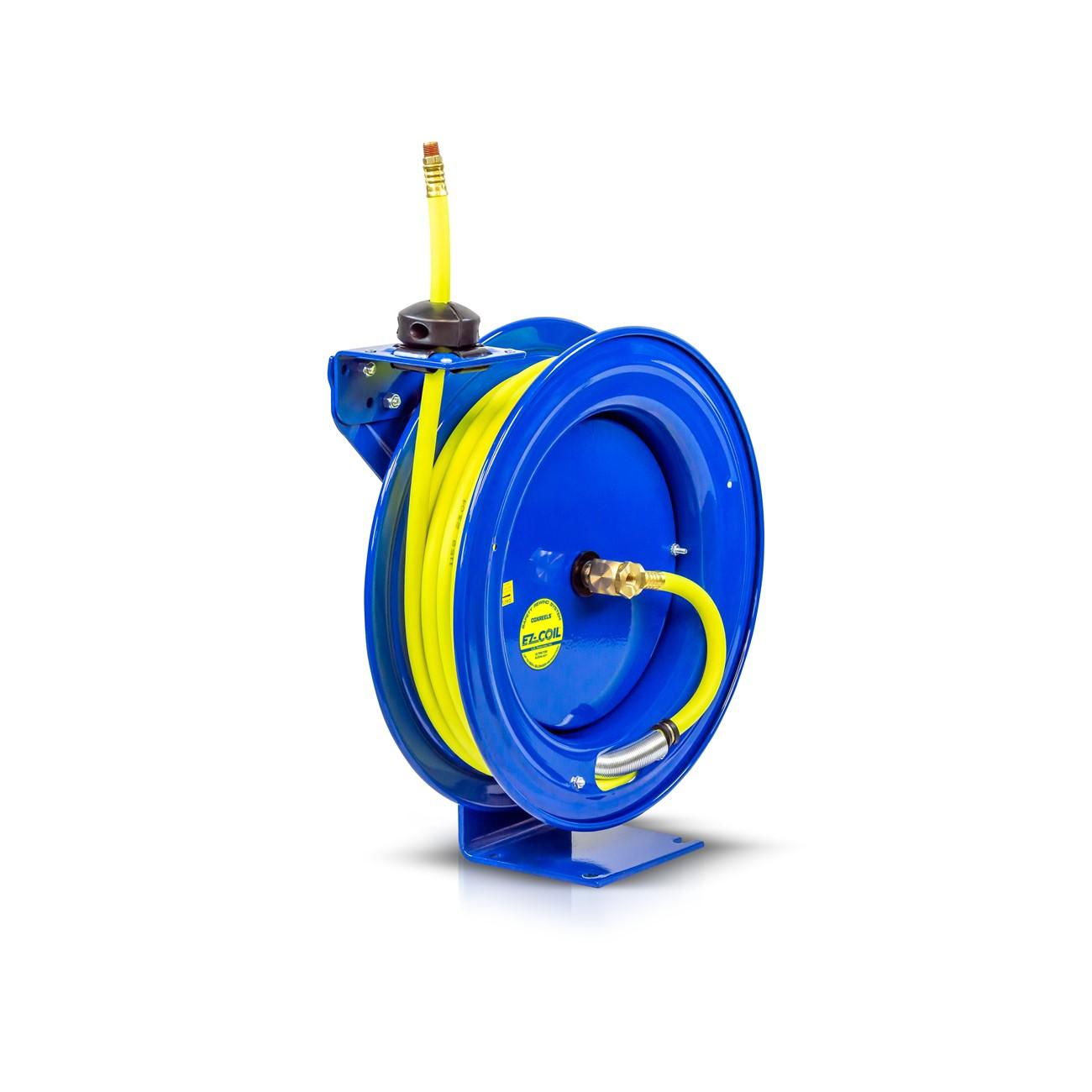

Coxreels EZ-SH-350-HV Safety Hose Reel 3/8 in Hv Steel

Product Description

The COXREELS EZ-SH-350-HV is a high-visibility retractable safety hose reel designed for industrial and commercial environments where hose awareness and controlled retraction are critical. Built on a solid one-piece steel base with CNC robotically spun and ribbed steel discs, this reel delivers structural durability for demanding daily use. The EZ-Coil spring motor retracts the hose up to 80% slower than conventional reels, reducing snap-back hazards. The hybrid bright yellow hose with white glossy stripe maximizes visibility on busy floors. A machined brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount. Licensed HVAC, mechanical, and general maintenance technicians are the primary installers.

The EZ-SH-350-HV suits retractable hose applications in manufacturing facilities, service garages, warehouses, and other industrial settings where a 3/8 inch ID hose is required. The reel mounts to wall, floor, ceiling, or vehicle surfaces via its versatile guide arm. The hi-vis hybrid hose construction combines PVC and rubber for reduced coil memory, enhanced kink resistance, and a non-marring, low-stick jacket that lays flat to minimize trip hazards. This reel is rated for use as a single-pedestal floor or overhead installation in high-traffic service environments.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80% slower than conventional reels for reduced snap-back risk
• High-visibility hybrid hose in bright yellow with white glossy stripe improves floor awareness and reduces trip hazard potential
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base with single pedestal and dual axle super hub support, no-weld construction
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style retractable hose reel for industrial and commercial service applications requiring a 3/8 inch ID hose connection with a standard NPT swivel interface.

Installation Notes

Installation is typically performed by licensed mechanical or general maintenance technicians. Shut off all supply pressure and depressurize the hose line completely before mounting or servicing this reel. Secure the mounting base to a structurally sound surface rated for the combined weight of the reel and hose under load. Refer to local mechanical and building codes for overhead and vehicle-mount installations.

Technical Specifications

• Hose Inside Diameter: 3/8 inch
• Hose Outside Diameter: 5/8 inch
• Hose Type: Hybrid PVC and Rubber high-visibility yellow with white stripe
• Reel Material: Steel
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Retraction System: EZ-Coil lubricated enclosed cartridge spring motor
• Finish: CPC chip-resistant rust-inhibiting powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 50 pounds
• UPC: 674255752634

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-350-HV
