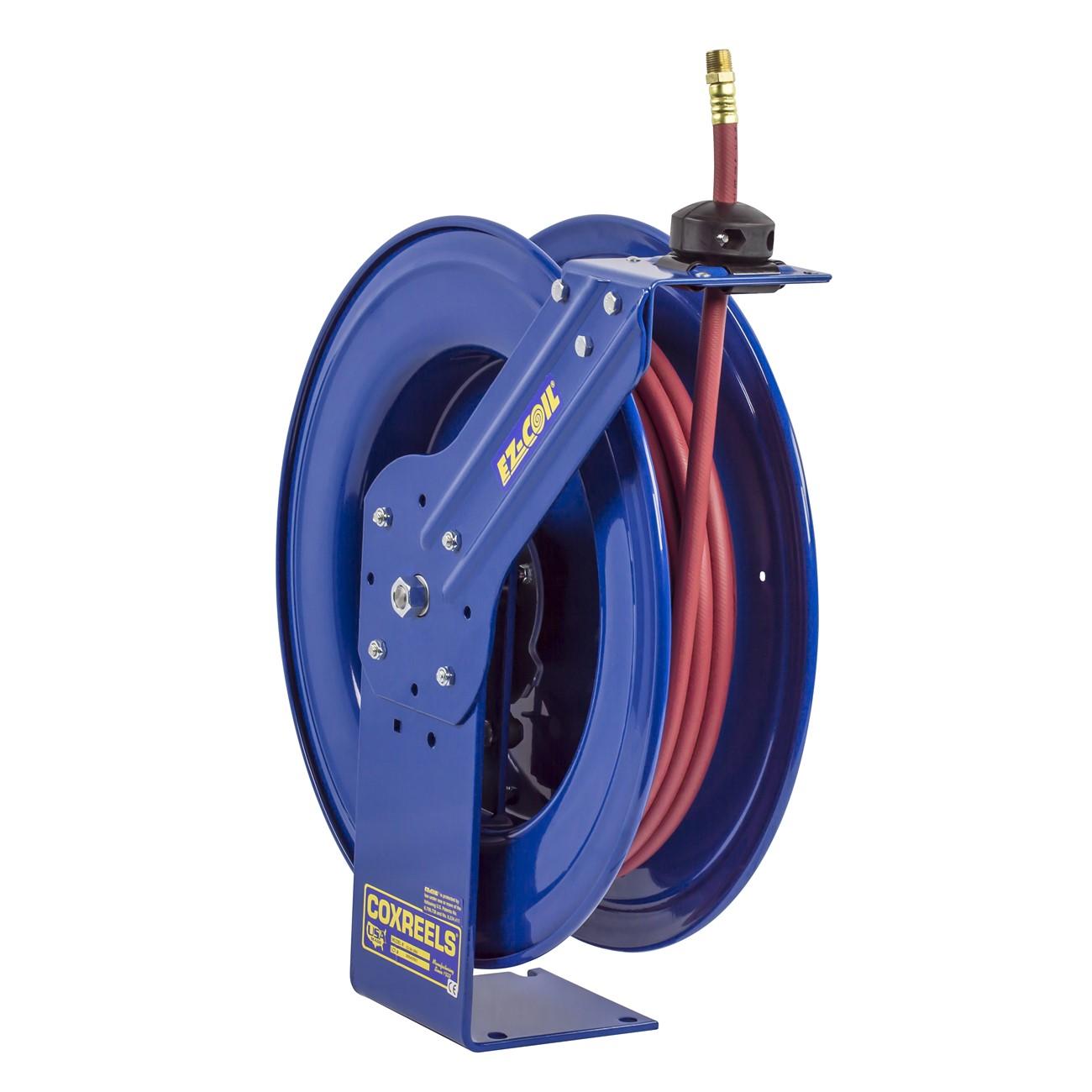

Coxreels EZ-SH-3100 Spring Driven Hose Reel 3/8 in 100 Ft

Product Description

The COXREELS EZ-SH-3100 is a spring-driven hose reel built on the SH Series Super Hub platform, designed for demanding industrial and service applications where reliable hose retraction and structural durability are required. The reel accommodates 3/8-inch ID, 5/8-inch OD hose up to 100 feet in length. Its EZ-Coil retraction system uses a lubricated, enclosed cartridge-style motor that slows retraction speed by up to 80 percent compared to conventional reels, reducing snap-back hazards. The heavy-duty CNC-spun steel discs and solid one-piece steel base give this reel the rigidity to handle extended daily use in professional settings. Technicians and service professionals in industrial, fleet, and facility maintenance environments are the primary installers and operators.

The EZ-SH-3100 is suited for use in automotive service bays, fleet maintenance shops, manufacturing facilities, and other settings where spring-driven hose retrieval is needed for air, water, or compatible fluid delivery lines. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a range of fixed and mobile installations. The integrated 90-degree full-flow brass NPT swivel allows hose installation and seal maintenance without removing the reel from its mount.

Key Features

• EZ-Coil enclosed cartridge motor retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back risk
• Machined solid brass 90-degree full-flow NPT swivel supports simple seal maintenance and fast hose installation without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base with single pedestal support post, no-weld construction, and Super Hub dual axle support for maximum stability and reduced vibration
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit reel for applications requiring a spring-driven reel with 3/8-inch ID hose up to 100 feet in length; consult the COXREELS SH Series compatibility guide to confirm fitment for specific hose types and fluid media.

Installation Notes

Installation is typically performed by qualified maintenance technicians or service professionals familiar with hose reel mounting hardware and fluid line connections. Shut off and bleed all pressure from the connected supply line before mounting or servicing the reel. Secure the reel to a structurally sound mounting surface rated for the combined weight of the reel and loaded hose. Verify that all NPT thread connections are properly sealed before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Capacity: 100 feet
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 71 pounds
• Base Material: Steel
• Swivel Material: Solid Brass
• Finish: CPC Powder Coat
• UPC: 674255729650

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-3100
