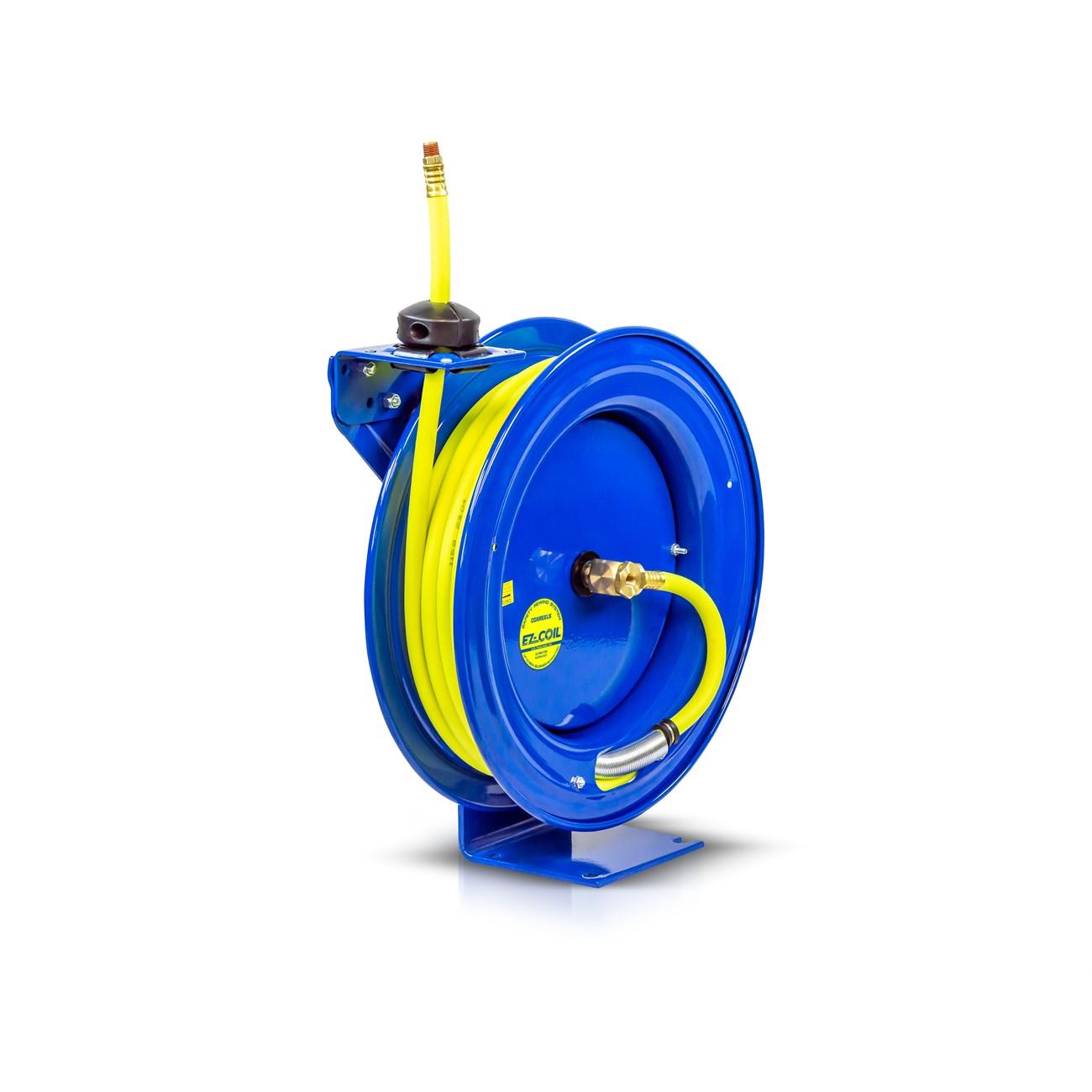

Coxreels EZ-SH-3100-HV Safety Hose Reel 3/8 Inch Id

Product Description

The COXREELS EZ-SH-3100-HV is a high-visibility safety hose reel built for demanding trade environments where hose awareness and controlled retraction matter. The reel features the EZ-Coil spring-driven retraction system, which slows retraction up to 80% compared to conventional reels, reducing snap-back risk during daily use. The hose drum and discs are CNC robotically spun from heavy-duty steel with ribbed construction and rolled edges for durability and operator safety. At 71 pounds, this is a permanent-mount unit suited for shop floors, service bays, and vehicle installations. It ships as a single unit and accommodates a 3/8 inch ID, 5/8 inch OD hose.

This reel is designed for professional use in facilities where hose management and operator safety are priorities. Typical applications include compressed air service in automotive shops, industrial maintenance bays, and fleet service environments. The adjustable guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of fixed and mobile setups. The high-visibility hybrid hose, featuring a bright yellow body with white stripe, improves visual awareness in busy work areas. Licensed technicians and maintenance professionals are the primary installers.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80% slower than standard reels for controlled, safe retraction
• High-visibility hybrid hose (PVC and rubber blend) in bright yellow with white stripe improves workplace awareness and reduces trip hazard potential
• CNC robotically spun, ribbed steel discs with rolled edges for hose protection and structural strength
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• 1/4 inch solid one-piece steel base with single pedestal design and dual axle super hub support, no-weld construction
• CPC powder coat finish resists chips and rust; adjustable guide arm mounts to wall, floor, ceiling, or vehicle

Compatibility

Designed as an OEM-style replacement or direct-install safety hose reel for 3/8 inch ID hose applications in compressed air and similar fluid service systems.

Installation Notes

Installation is typically performed by a licensed technician or qualified maintenance professional familiar with hose reel mounting and plumbing connections. Shut off and depressurize the supply line completely before connecting or disconnecting the swivel inlet. Secure the base to a structurally sound surface using hardware appropriate for the mounting location and load rating. Verify the guide arm angle and hose routing before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Material: Hybrid PVC and rubber blend
• Hose Color: High-visibility bright yellow with white stripe
• Reel Material: Steel
• Base Thickness: 1/4 inches
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Retraction System: EZ-Coil enclosed cartridge spring motor
• Finish: CPC chip-resistant rust-inhibiting powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 71 pounds
• UPC: 674255752658

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-3100-HV
