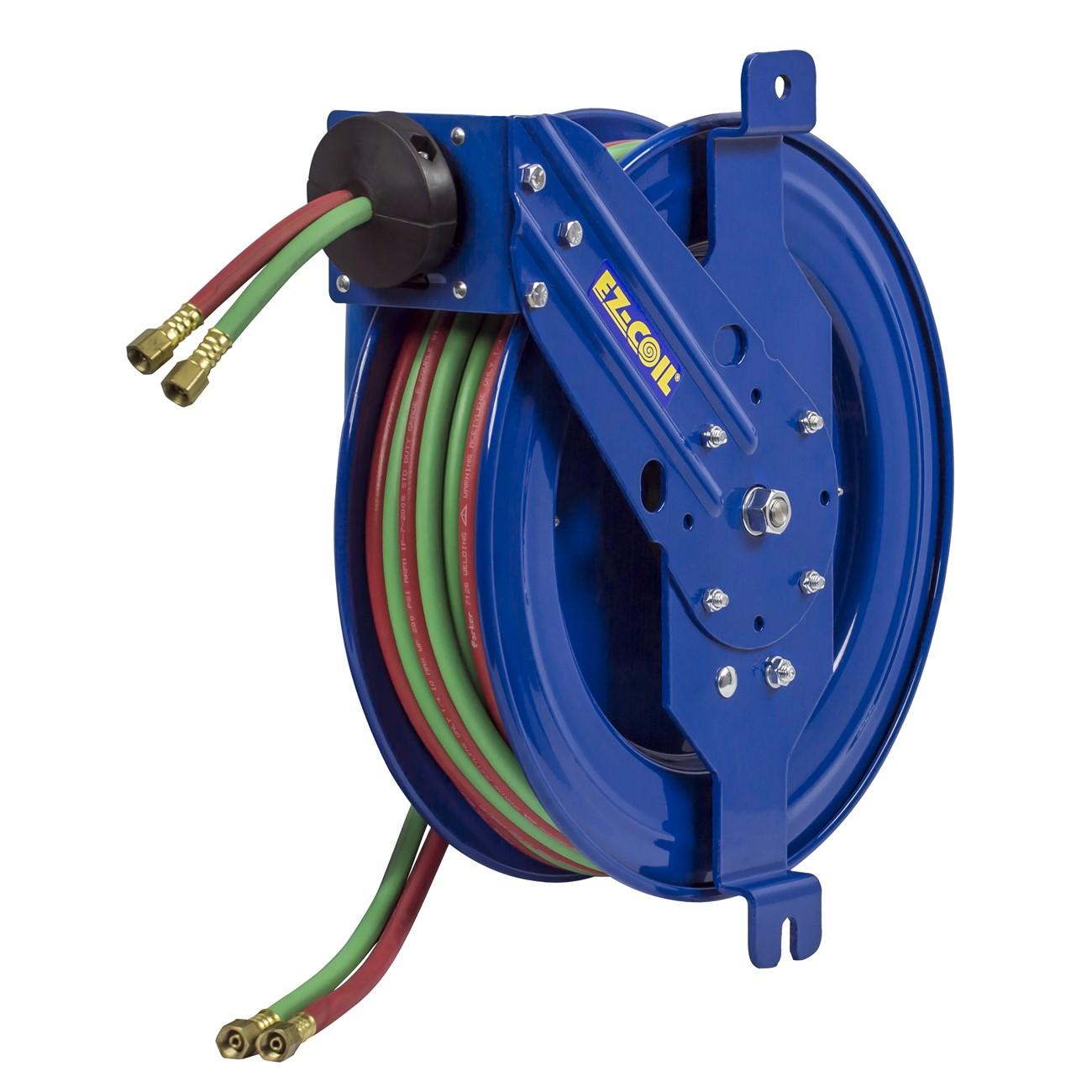

Coxreels EZ-SG19WT-175 Welding Gas Hose Reel 75 Ft

Product Description

The COXREELS EZ-SG19WT-175 is a spring-driven welding gas hose reel from the SGW Series, designed for T-grade oxy-acetylene and welding gas hose in demanding service environments. It accepts 1/4-inch ID hose up to 75 feet and features COXREELS patented EZ-Coil retraction system, which slows hose return up to 80 percent compared to conventional spring reels. The reel mounts to any vertical flat surface using a simple two-bolt pattern, making it well suited for service vehicles, tool benches, wall mounts, and machine tool stations. Licensed HVAC technicians, welding professionals, and shop maintenance crews are the typical installers.

The EZ-SG19WT-175 is built for tight-space installations where controlled hose management is critical. The side-mount, vertical flat-surface design fits service vehicle compartments, enclosed cabinets, lift bays, and shop walls. The adjustable six-position guide arm and roller assembly give the installer precise hose routing control across a range of layouts. Common deployment environments include automotive service shops, fleet maintenance facilities, and industrial tool stations requiring a reliable T-grade welding gas supply at the hose station.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than conventional reels for operator safety; motor is removable for maintenance without disassembling the reel
• External 90-degree full-flow dual-ported brass swivel with Viton seals routes both gas connections from the same side of the reel, eliminating the need to dismount the reel for access
• Adjustable guide arm repositions to six distinct positions for maximum hose control in confined or irregular mounting locations
• Two-bolt side-mount pattern allows quick installation and detachment on vertical flat surfaces, cabinets, beams, or enclosed spaces
• CNC robotically spun and ribbed disc drums with rolled edges provide structural strength, hose protection, and operator safety
• CPC powder coat finish is chip resistant and rust inhibiting for long service life in shop and vehicle environments

Compatibility

Designed for use with T-grade oxy-acetylene and welding gas hose with 1/4-inch ID, up to 75 feet in length, as part of the COXREELS SGW Series of side-mount spring-driven hose reels.

Installation Notes

Installation is performed by qualified welding equipment technicians or industrial maintenance professionals familiar with compressed gas systems and applicable OSHA and NFPA guidelines. Shut off and bleed all gas supply lines before mounting or servicing the reel. Secure the reel to a structurally sound vertical flat surface using fasteners rated for the combined weight of the reel and charged hose. Do not attempt to disassemble the spring motor cartridge under tension; follow the manufacturer service procedure for safe motor removal.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 75 ft
• Hose Type: T-grade welding gas
• Retraction System: EZ-Coil spring-driven, up to 80 percent slower retraction
• Swivel: External 90-degree dual-ported brass with Viton seals
• Guide Arm Positions: 6 adjustable positions
• Mounting: Side mount, 2-bolt vertical flat surface pattern
• Disc Construction: CNC robotically spun ribbed discs with rolled edges
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 77 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG19WT-175
