Coxreels EZ-SG19W-175 Welding Gas Hose Reel Ez-coil

Product Description

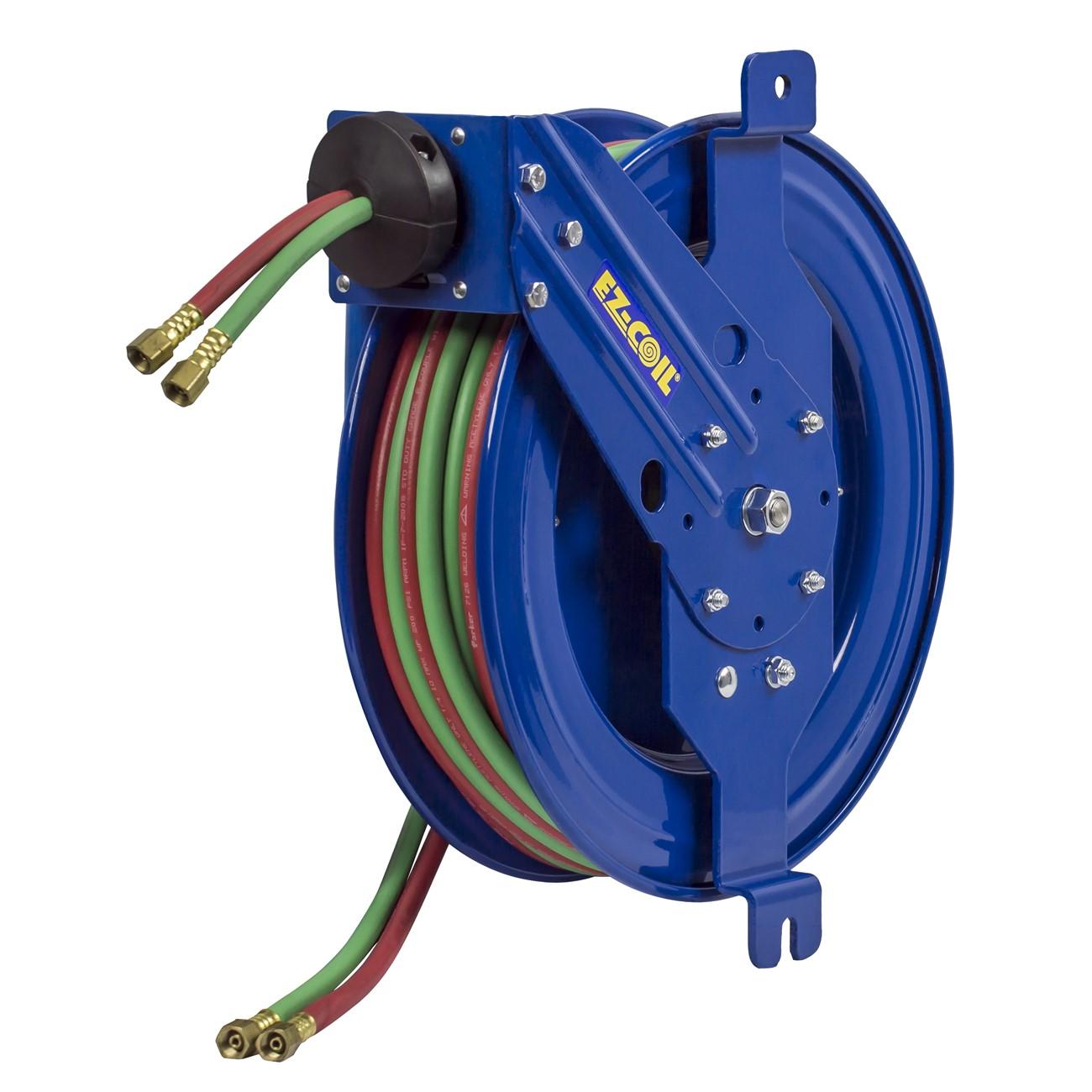

The COXREELS EZ-SG19W-175 is a spring-driven welding gas hose reel built for oxy-acetylene and T Grade gas welding hose applications. Part of the SGW Series, it features a 1/4 inch internal diameter drum rated for 75 feet of hose. The EZ-Coil cartridge motor retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back risk during daily use. The reel weighs 77 pounds and measures 20.5 inches long by 10.5 inches wide by 22 inches tall. Licensed welding technicians and service professionals are the primary installers of this unit.

The EZ-SG19W-175 is designed for side-mount installation on vertical flat surfaces, including service vehicle compartments, tool benches, wall panels, vertical beams, vehicle lift systems, and machine tool stations. Its two-bolt mounting pattern allows fast installation and removal, making it practical for both permanent shop setups and temporary field deployments. The external dual-ported brass swivel routes both gas connections from the same side of the reel, eliminating the need to dismount the unit when connecting supply lines.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts hose up to 80 percent slower than standard reels for improved operator safety
• External 90-degree full-flow dual-ported brass swivel with VITON seals serves both connections from one side of the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• Six-position adjustable guide arm and roller assembly for maximum hose routing control in tight or confined spaces
• Two-bolt side-mount pattern supports quick attachment and detachment on any vertical flat surface
• CPC powder coat finish resists chips, rust, and corrosion for long service life in demanding environments

Compatibility

Designed for use with oxy-acetylene and T Grade gas welding hose with a 1/4 inch internal diameter, up to 75 feet in length. Part of the COXREELS SGW Series platform for welding gas hose management.

Installation Notes

Installation should be performed by a qualified welding technician or licensed professional familiar with compressed gas hose systems and applicable safety codes. Shut off all gas supply valves and relieve pressure in the hose before mounting or servicing the reel. The two-bolt side-mount pattern requires a solid, load-bearing vertical flat surface capable of supporting the weight of the reel plus hose. The EZ-Coil cartridge motor is removable for maintenance without dismounting the reel body from its surface.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Capacity: 75 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 77 pounds
• Swivel Material: Brass with VITON seals
• Finish: CPC powder coat
• Mounting Pattern: 2-bolt side mount
• UPC: 674255741690

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG19W-175
