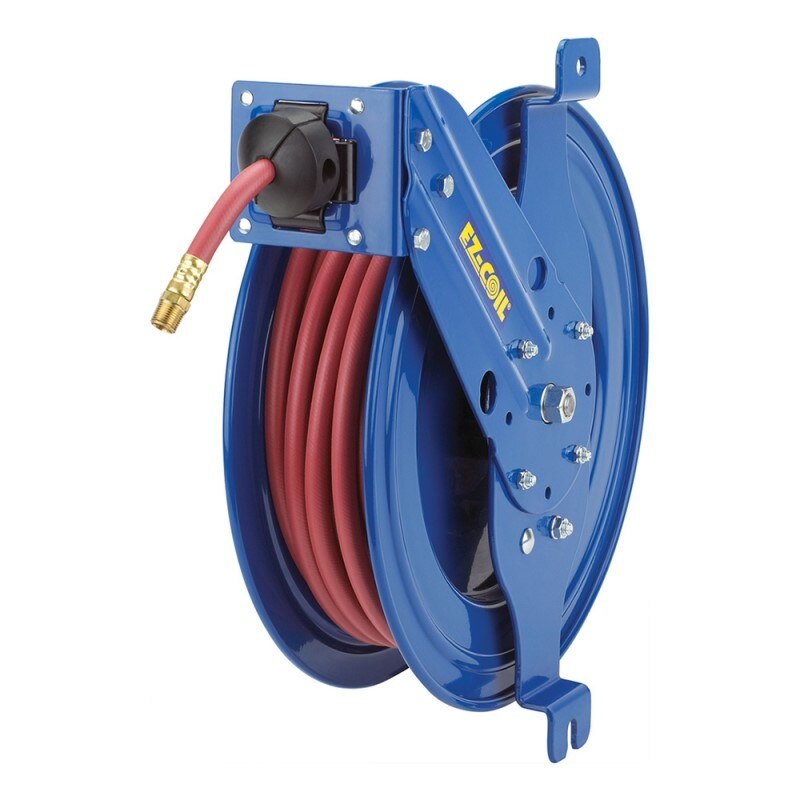

Coxreels EZ-SG19-M450 Spring Driven Hose Reel 50 Ft

Product Description

The COXREELS EZ-SG19-M450 is a spring-driven hose reel from the SG Series, designed for controlled hose retraction in demanding trade and service environments. It accommodates hose with a 1/2 inch ID and 13/16 inch OD up to 50 feet in length. The reel uses Coxreels EZ-COIL technology, a patented system that retracts the hose up to 80 percent slower than conventional spring-driven reels, reducing snap-back risk for the technician. A machined solid brass 90-degree full-flow NPT swivel provides leak-resistant connection with straightforward seal maintenance. Licensed HVAC techs, plumbers, and fleet service professionals are the primary installers of this unit.

The EZ-SG19-M450 is suited for air, water, oil, and grease hose applications in both residential service and light commercial settings. The side-mount two-bolt pattern allows installation on vertical flat surfaces including service vehicle walls, tool benches, beams, and enclosed cabinet spaces. A multi-position guide arm adjusts to six positions, giving the operator precise hose routing in tight quarters such as vehicle lift bays, machine tool stations, and service truck compartments. The compact footprint makes it a practical choice wherever overhead or floor space is limited.

Key Features

• EZ-COIL spring motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back hazard
• Lubricated and enclosed cartridge-style spring motor is removable for maintenance without full reel disassembly
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Six-position adjustable guide arm and roller assembly for maximum hose control in confined spaces
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• CPC powder coat finish resists chips and rust; permanently lubricated precision bearings require no scheduled re-lubrication

Compatibility

Designed as an OEM-style replacement or new-installation option for side-mount spring-driven hose reel applications handling air, water, oil, or grease service lines with 1/2 inch ID hose up to 50 feet.

Installation Notes

Installation is performed by qualified service technicians or mechanics using standard hand tools; the two-bolt mounting pattern requires a flat vertical surface capable of supporting the reel weight and hose load. Depressurize and bleed the supply line fully before connecting or disconnecting any hose or swivel fitting. Follow applicable OSHA and facility safety guidelines when mounting on service vehicles or elevated structures. Do not exceed the hose or fitting pressure ratings specified by the hose manufacturer.

Technical Specifications

• Hose Inside Diameter: 1/2 inch
• Hose Outside Diameter: 13/16 inch
• Hose Capacity: 50 feet
• Reel Length: 20.5 inches
• Reel Width: 10.5 inches
• Reel Height: 22 inches
• Weight: 65 pounds
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Mounting Pattern: 2-bolt side mount
• Guide Arm Positions: 6
• UPC: 674255747586

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG19-M450
