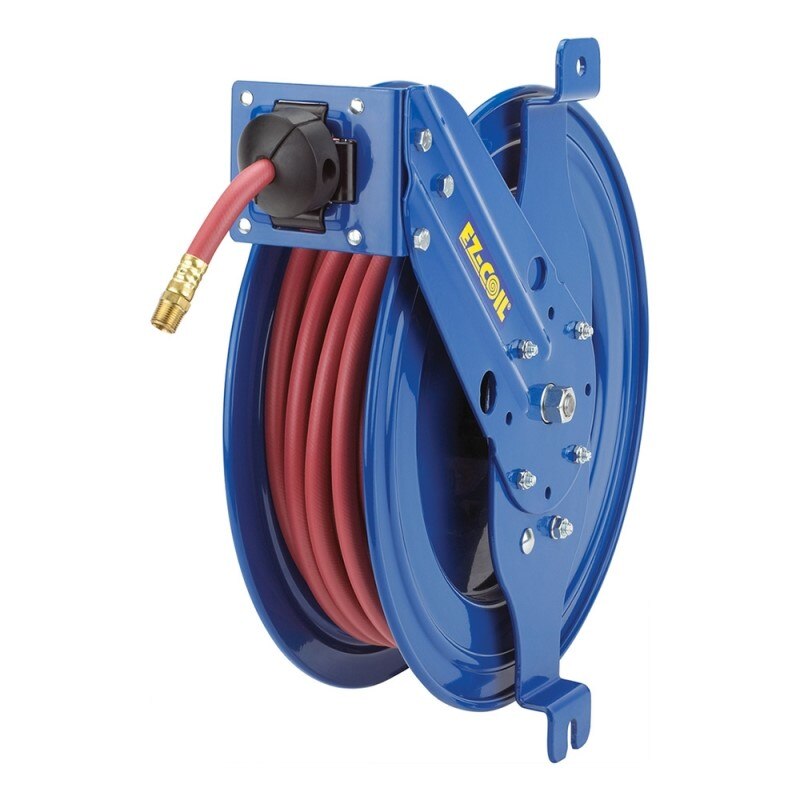

Coxreels EZ-SG19-M350 Spring Driven Hose Reel 3/8 in

Product Description

The COXREELS EZ-SG19-M350 is a spring-driven hose reel from the SG Series, designed for controlled retraction of air, water, oil, and grease hose in demanding service environments. The reel features a patented EZ-Coil cartridge motor that retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back hazards during retraction. A machined solid brass 90-degree full-flow NPT swivel allows fast hose installation and seal maintenance without removing the reel from its mount. The unit accepts 3/8-inch ID hose up to 50 feet in length and is built for professional installation by fleet technicians, shop mechanics, and service vehicle operators.

The EZ-SG19-M350 is suited for use in tight spaces where hose management and controlled retraction are critical. Common installation locations include service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. The side-mount, two-bolt mounting pattern allows fast attachment and detachment from any vertical flat surface, making it practical for both temporary and permanent setups in commercial shops and mobile service rigs. The six-position adjustable guide arm and roller assembly give the installer flexibility to route hose efficiently for the specific workstation layout.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts hose up to 80 percent slower than conventional reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Six-position adjustable guide arm and roller assembly for flexible hose routing in confined or custom layouts
• CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• Two-bolt side-mount pattern mounts and detaches quickly from any vertical flat surface
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life in shop and mobile environments

Compatibility

Designed as an OEM-style fit within the COXREELS SG Series for 3/8-inch ID hose applications carrying air, water, oil, or grease media.

Installation Notes

Installation is typically performed by a qualified shop technician or fleet mechanic using standard hand tools. Mount to a solid vertical flat surface using the two-bolt pattern, ensuring the substrate can support the combined weight of the reel and fully loaded hose. Relieve all line pressure and drain residual fluid from the hose before removing or servicing the swivel or cartridge motor. The guide arm position should be set before finalizing the mount orientation to confirm hose exit angle clears surrounding equipment.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length Capacity: 50 feet
• Reel Weight: 63 pounds
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Mount Type: Side mount, two-bolt vertical flat surface
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Media Compatibility: Air, water, oil, grease
• UPC: 674255747173

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG19-M350
