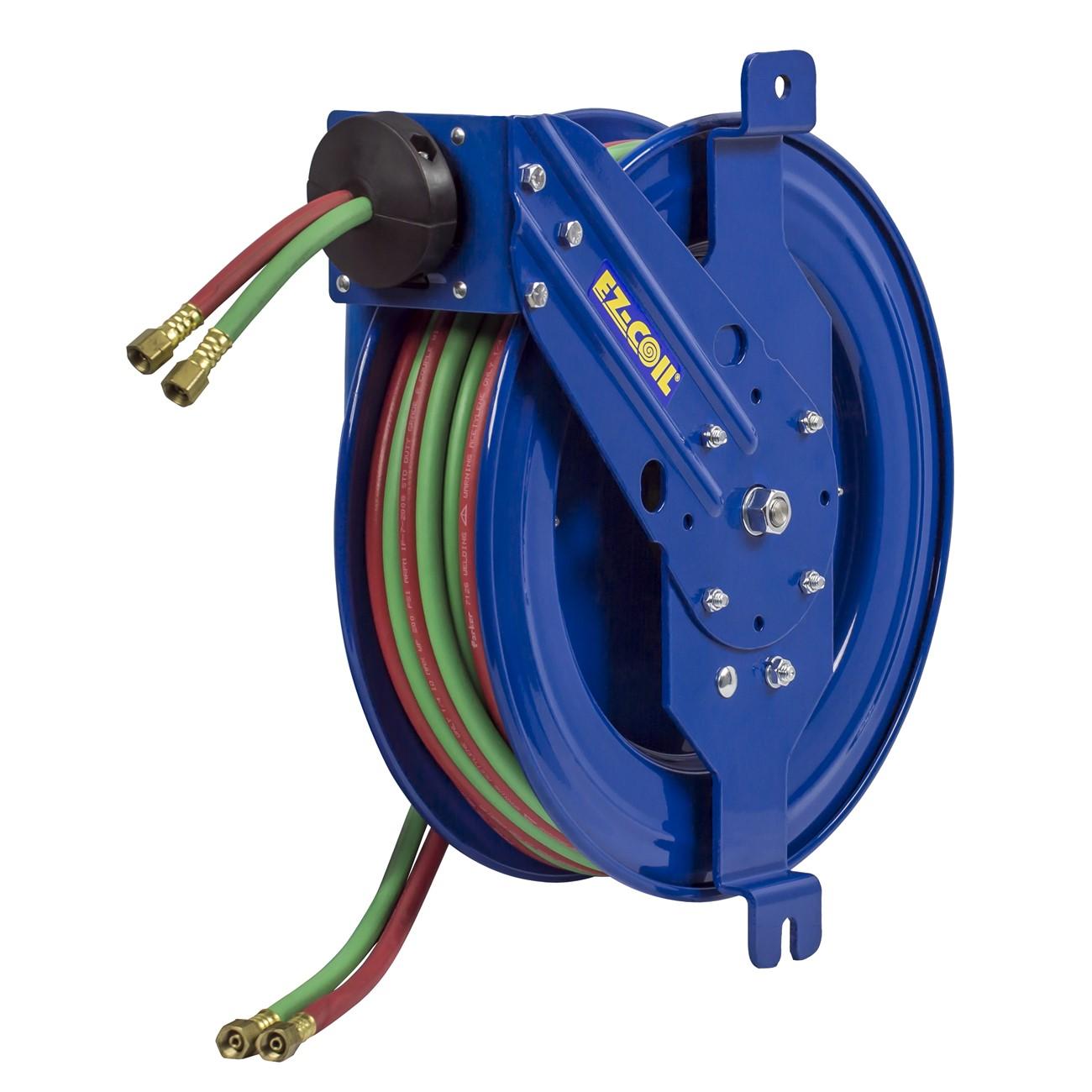

Coxreels EZ-SG17W-150 Welding Hose Reel 1/4 in Side Mount

Product Description

The COXREELS EZ-SG17W-150 is a spring-driven, side-mount welding hose reel engineered for oxy-acetylene and T Grade gas welding hose applications. Part of the SGW Series, it accepts 1/4 inch ID hose and is rated for 150 feet of hose capacity. The reel features COXREELS patented EZ-Coil retraction system, which slows retraction speed up to 80 percent compared to conventional spring reels, reducing snap-back risk during daily use. An external 90-degree full-flow dual-ported brass swivel with VITON seals keeps both inlet and outlet connections accessible from the same side of the reel, eliminating the need to dismount the unit for hose connections.

The EZ-SG17W-150 is suited for service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations where space is limited. The two-bolt side-mount pattern allows fast installation or removal on any vertical flat surface, making it practical for both permanent shop installations and temporary mobile service setups. The adjustable six-position guide arm and roller assembly provide consistent hose control across a range of routing angles, which is valuable in tight or enclosed work areas where hose management directly affects workflow efficiency.

Key Features

• EZ-Coil enclosed cartridge motor retracts up to 80 percent slower than standard spring reels for improved operator safety
• External 90-degree dual-ported brass swivel with VITON seals — both connections accessible from one side, no dismounting required
• CNC robotically spun and ribbed discs with rolled edges for increased structural strength and hose protection
• Six-position adjustable guide arm and roller assembly for precise hose routing control
• Two-bolt side-mount pattern supports quick installation and removal on vertical flat surfaces
• CPC powder coat finish resists chipping, rust, and corrosion for extended service life

Compatibility

Designed for use with oxy-acetylene and T Grade gas welding hose with 1/4 inch ID. Suitable for service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool applications as part of the COXREELS SGW Series.

Installation Notes

Installation is performed by qualified welding equipment technicians or experienced tradespeople familiar with gas hose systems. Shut off all gas supply valves and bleed hose pressure before mounting or servicing the reel. The two-bolt pattern requires a flat vertical mounting surface capable of supporting the loaded reel weight. Follow applicable compressed gas and welding safety codes, including CGA and OSHA standards, when routing and connecting oxy-acetylene hose.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Capacity: 150 feet
• Swivel Type: External 90-degree full-flow dual-ported brass with VITON seals
• Retraction Type: EZ-Coil spring-driven, enclosed cartridge motor
• Mount Style: Side mount, 2-bolt vertical flat surface pattern
• Guide Arm Positions: 6 adjustable positions
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 191.25 inches
• Weight: 59 pounds
• UPC: 674255741683

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG17W-150
