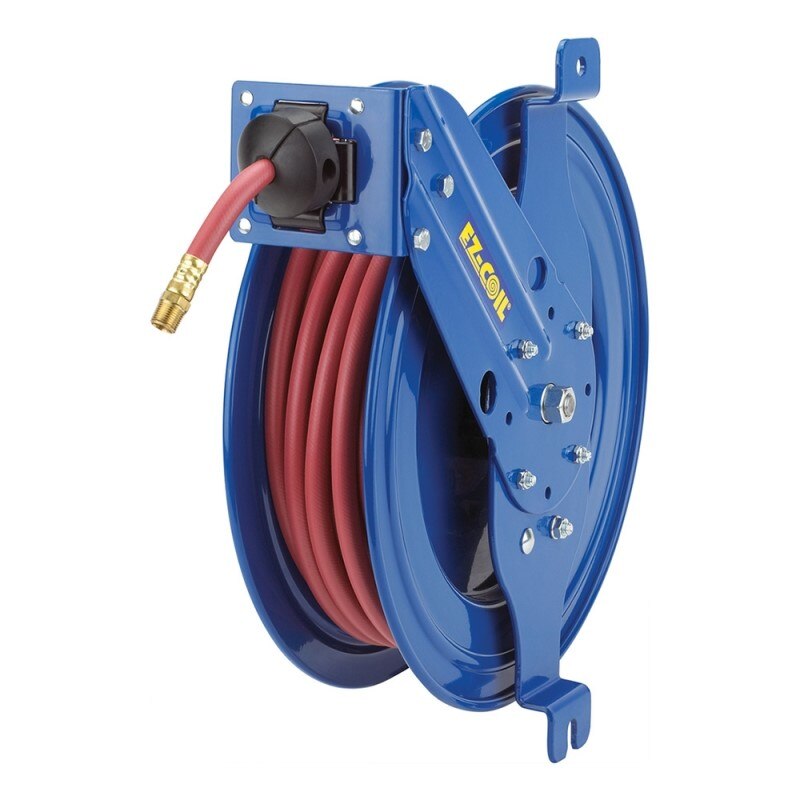

Coxreels EZ-SG17L-L350 Spring Driven Hose Reel 3/8 in

Product Description

The COXREELS EZ-SG17L-L350 is a spring-driven, side-mount hose reel from the SG Series, designed for air, water, oil, and grease service. It accepts hose with a 3/8 inch inner diameter and accommodates up to 50 feet of hose. The reel uses Coxreels EZ-Coil technology, a patented retraction system that retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back risk and improving operator safety. The enclosed, lubricated cartridge-style motor is removable for maintenance without tools. Built for professional trade environments, this reel is installed by mechanics, fleet technicians, and shop service personnel in fixed or temporary service points.

The EZ-SG17L-L350 is suited for service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. Its two-bolt side-mount pattern allows fast installation and removal from any vertical flat surface, making it a practical choice for both permanent shop installations and mobile service rigs where space is limited. The adjustable six-position guide arm provides directional hose control in confined or awkward working positions.

Key Features

• EZ-Coil patented retraction system slows rewind up to 80 percent compared to conventional spring reels for improved operator safety
• Enclosed, lubricated cartridge-style spring motor is removable for maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide structural strength, hose protection, and durability
• Six-position adjustable guide arm and roller assembly deliver maximum hose control across varied routing angles
• CPC powder coat finish resists chips and rust for long service life in shop and vehicle environments
• Two-bolt mounting pattern supports quick detach for temporary or permanent vertical flat-surface installation

Compatibility

The EZ-SG17L-L350 is part of the COXREELS SG Series, compatible with air, water, oil, and grease hose service applications. It accepts 3/8 inch ID hose up to 50 feet in length. Designed as a side-mount spring-driven reel for vertical flat surfaces including service vehicle compartments, shop walls, and enclosed cabinets.

Installation Notes

Installation is typically performed by a qualified mechanic or shop technician using standard hand tools. Shut off all fluid or air supply and relieve system pressure before mounting or connecting hose. The two-bolt pattern mounts to any flat vertical surface rated to support the reel and hose load. Confirm hose end fittings match the NPT swivel inlet before pressurizing the system.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Capacity: 50 feet
• Spring Motor: EZ-Coil enclosed cartridge-style, lubricated
• Swivel: Machined solid brass 90-degree full-flow NPT
• Guide Arm Positions: 6
• Mounting Style: Side mount, 2-bolt vertical flat surface
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 33 pounds
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UPC: 674255744530

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG17L-L350
