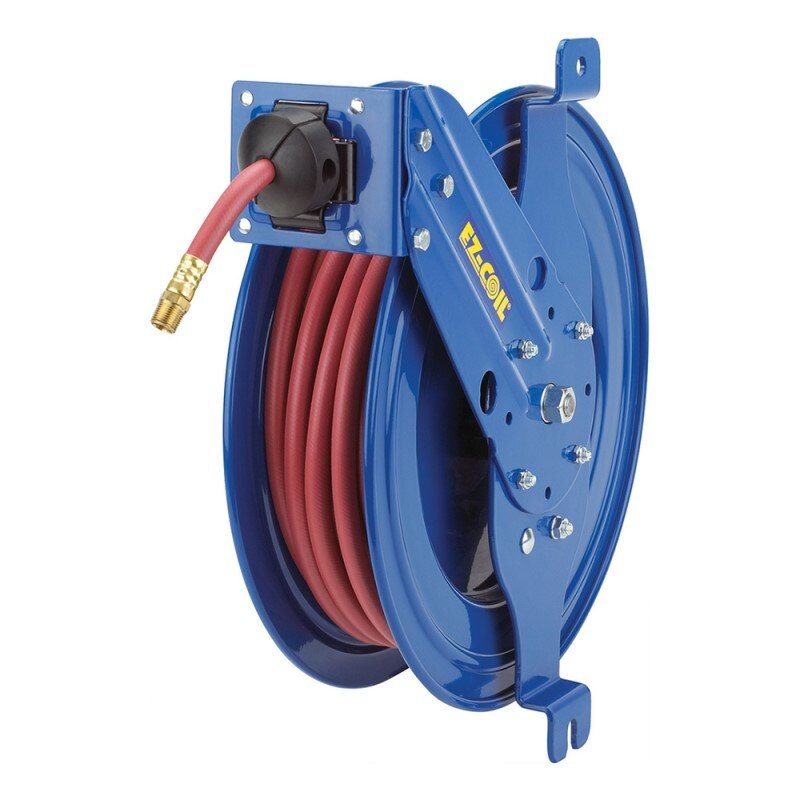

Coxreels EZ-SG17-M425 Spring Driven Hose Reel 25 Ft

Product Description

The COXREELS EZ-SG17-M425 is a spring-driven hose reel from the SG Series, designed for controlled hose retraction in demanding trade and industrial environments. It features a 1/2 inch inner diameter hose inlet with a 13/16 inch outer diameter and accommodates up to 25 feet of hose. The reel uses Coxreels patented EZ-Coil motor system, a lubricated and enclosed cartridge-style spring motor that retracts hose up to 80 percent slower than conventional reels for improved operator safety. A machined solid brass 90-degree full-flow NPT swivel allows for seal maintenance and hose installation without removing the reel from its mount. Licensed HVAC technicians, plumbers, and fleet service professionals install this reel in service vehicles, tool benches, and equipment bays.

The EZ-SG17-M425 is built for air, water, oil, and grease applications. Its side-mount design uses a simple two-bolt pattern that attaches or detaches from any vertical flat surface, making it practical for service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. The adjustable multi-position guide arm moves to six different positions using a standard wrench, giving technicians consistent hose routing in tight or confined spaces. This reel suits both temporary and permanent installations across light industrial and mobile service environments.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts hose up to 80 percent slower than conventional reels for safer operation
• Machined solid brass 90-degree full-flow NPT swivel — seal maintenance and hose swaps without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Two-bolt side-mount pattern installs or detaches quickly from any vertical flat surface
• Six-position adjustable guide arm and roller assembly for precise hose routing in tight spaces
• CPC powder coat finish — chip resistant and rust inhibiting for long service life in mobile and shop environments

Compatibility

Designed for use with air, water, oil, and grease hose applications as part of the Coxreels SG Series side-mount spring-driven reel line. Compatible with 1/2 inch inner diameter hose up to 25 feet in length.

Installation Notes

Installation is typically performed by a qualified service technician or maintenance professional familiar with pressurized hose systems. Before mounting or servicing, depressurize and relieve all hose pressure and disconnect the hose from the supply source. Use appropriate fasteners rated for the mounting surface when securing the two-bolt side-mount pattern to walls, beams, or vehicle surfaces. The spring motor cartridge is removable for maintenance — follow the manufacturer service instructions before disengaging the spring assembly to avoid injury from stored spring tension.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Length: 25 feet
• Weight: 46 pounds
• Mounting Style: Side mount, two-bolt pattern, vertical flat surface
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Guide Arm Positions: 6 adjustable positions
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UPC: 674255753464

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG17-M425
