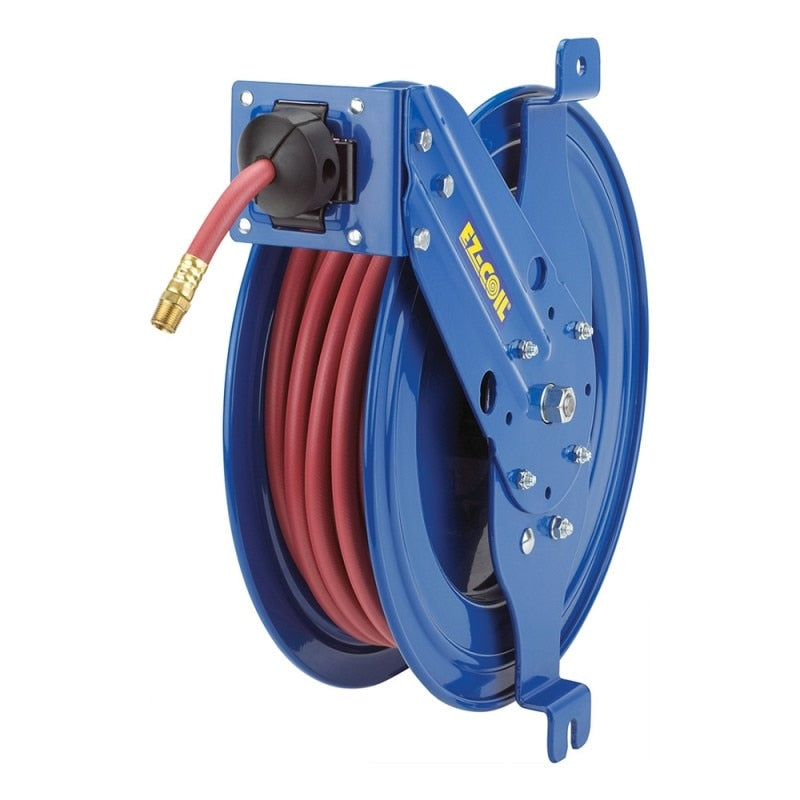

Coxreels EZ-SG17-L350 Spring Driven Hose Reel 3/8 in

Product Description

The COXREELS EZ-SG17-L350 is a side-mount, spring-driven hose reel from the SG Series, designed for controlled hose retraction in demanding trade environments. It accepts hose with a 3/8 inch ID and 5/8 inch OD, with a 50-foot capacity. The reel uses Coxreels EZ-COIL technology, a patented system that retracts up to 80 percent slower than conventional spring reels, reducing snap-back hazards. The unit is built around CNC robotically spun and ribbed steel discs with rolled edges. A machined solid brass 90-degree full-flow NPT swivel is included for simplified seal maintenance. Licensed HVAC technicians, plumbers, fleet mechanics, and general service professionals install this reel in fixed and mobile service setups.

The EZ-SG17-L350 is suited for air, water, oil, and grease applications in both shop and field environments. Its two-bolt side-mount pattern allows installation on vertical flat surfaces, cabinet interiors, service vehicle bodies, tool benches, wall beams, and vehicle lift systems. The multi-position guide arm adjusts to six positions using a standard wrench, making it practical for tight or enclosed spaces where hose routing needs to be managed precisely. It is a common choice for service bays, fleet maintenance vehicles, and machine tool stations.

Key Features

• EZ-COIL patented spring motor retracts up to 80 percent slower than standard reels, reducing snap-back risk
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• Six-position adjustable guide arm and roller assembly for precise hose control in confined spaces
• Two-bolt mounting pattern for quick installation or removal on any vertical flat surface; CPC powder coat finish resists chips and rust

Compatibility

Designed as an OEM-style spring-driven hose reel for air, water, oil, and grease service lines. Compatible with standard 3/8 inch ID hose assemblies up to 50 feet in length. The two-bolt side-mount pattern fits a wide range of vertical flat surface installations including service vehicles, tool benches, and enclosed cabinet mounts.

Installation Notes

Installation is typically performed by qualified mechanics or service technicians using standard hand tools. Mount only to a structurally sound vertical flat surface capable of supporting the reel weight plus hose and fluid load. Depressurize and bleed all lines before disconnecting existing hose connections or servicing the swivel. Follow applicable shop safety procedures and local codes when routing hose for oil or pressurized air and water service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Capacity: 50 feet
• Mount Type: Side mount, 2-bolt pattern, vertical flat surface
• Swivel: Machined solid brass, 90-degree full-flow NPT
• Spring Motor: Lubricated enclosed cartridge, EZ-COIL equipped
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Finish: CPC powder coat, chip and rust resistant
• Guide Arm Positions: 6 adjustable positions
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 40 pounds
• UPC: 674255741676

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG17-L350
