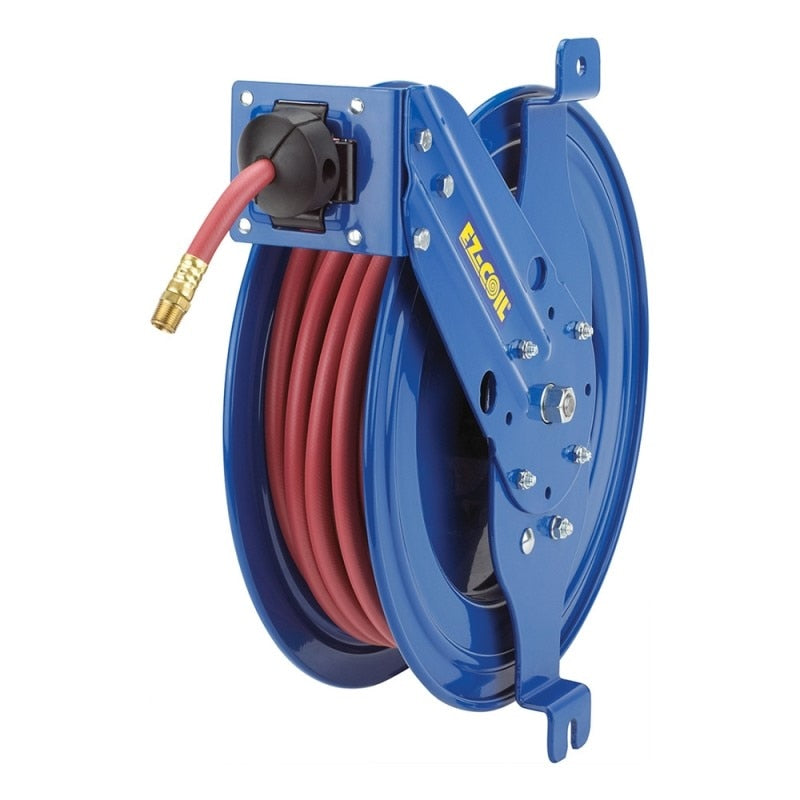

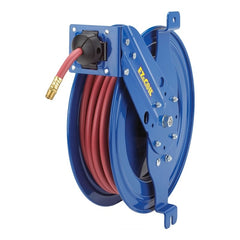

Coxreels EZ-SG13-L325 Spring Driven Hose Reel 25 Ft

Product Description

The COXREELS EZ-SG13-L325 is a spring-driven hose reel from the SG Series, designed for controlled hose retraction in demanding trade environments. It accepts hose with a 3/8 inch ID and 5/8 inch OD and holds up to 25 feet of hose. The reel features Coxreels EZ-Coil technology, a patented safety system that retracts hose up to 80 percent slower than conventional reels, reducing snap-back risk. A machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. Licensed HVAC technicians, plumbers, mechanics, and lube technicians install this unit on service vehicles, tool benches, vertical walls, and vehicle lift systems.

The EZ-SG13-L325 is suited for air, water, oil, and grease applications in both shop and mobile service settings. Its side-mount design attaches to any vertical flat surface using a simple two-bolt mounting pattern, making it practical for tight spaces such as enclosed cabinets, service van interiors, and machine tool stations. The multi-position guide arm adjusts to six different positions using a standard wrench, giving the technician precise hose routing control regardless of the installation orientation.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts hose up to 80 percent slower than conventional reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose swapping and seal service without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed disc drums with rolled edges for strength, durability, and hose protection
• Two-bolt side-mount pattern installs and detaches quickly on any vertical flat surface for temporary or permanent use
• Six-position adjustable guide arm and roller assembly for maximum hose control in varied installation layouts
• CPC powder coat finish is chip-resistant and rust-inhibiting; permanently lubricated precision bearings require no routine greasing

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the Coxreels SG Series, suitable for air, water, oil, and grease hose reel applications on service vehicles, tool benches, vertical walls, beams, and vehicle lift systems.

Installation Notes

Installation is typically performed by a mechanic, lube technician, or fleet service professional. Power down or depressurize the supply line before connecting or disconnecting hose fittings. Use the two-bolt side-mount pattern on a solid vertical flat surface rated for the combined weight of the reel and hose. The guide arm position is adjusted with a standard wrench and should be set before placing the reel into service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Capacity: 25 feet
• Reel Type: Spring driven (EZ-Coil)
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Mounting Style: Side mount, 2-bolt pattern
• Guide Arm Positions: 6
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 26 pounds
• UPC: 674255743274

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG13-L325
