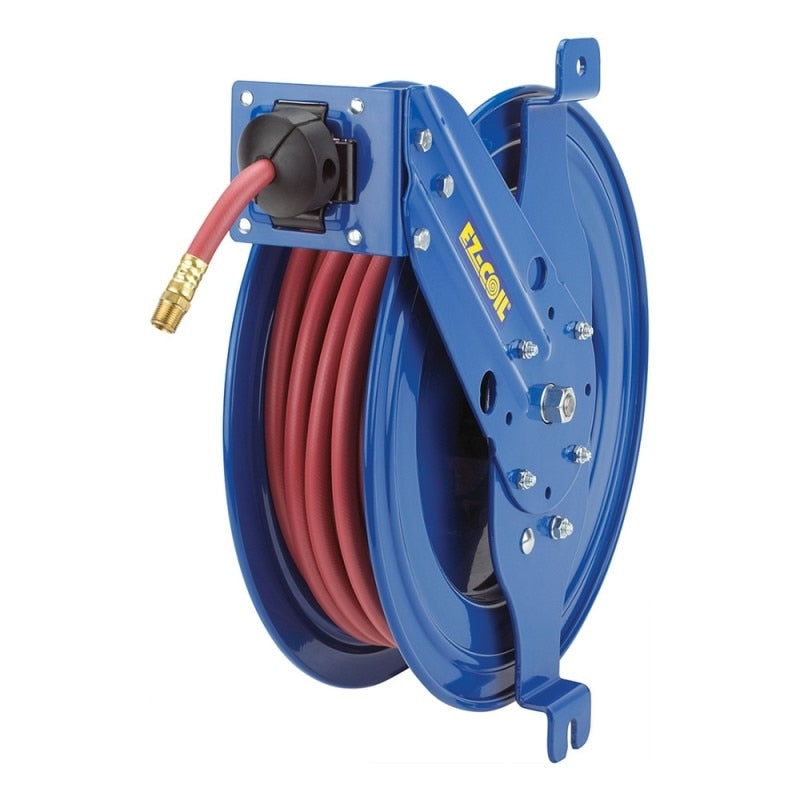

Coxreels EZ-SG13-L135 Spring Driven Hose Reel 35 Ft

Product Description

The COXREELS EZ-SG13-L135 is a spring-driven hose reel from the SG Series, designed for controlled hose retraction in demanding service environments. It accommodates hose with a 1/4-inch inner diameter and 1/2-inch outer diameter up to 35 feet in length, making it well-suited for air, water, oil, and grease applications. The reel features COXREELS patented EZ-COIL retraction system, which slows retraction up to 80 percent compared to conventional spring reels, reducing snap-back risk during daily use. A machined solid-brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. Installed by mechanics, fleet technicians, and industrial maintenance personnel.

The EZ-SG13-L135 is built for side-mount installation on any vertical flat surface using a two-bolt mounting pattern. Common deployment locations include service vehicles, tool benches, vertical walls and beams, vehicle lift systems, and machine tool stations. The multi-position guide arm and roller assembly adjust to six different positions using a standard open-end wrench, providing precise hose routing control in tight or confined spaces. The reel measures 14.5 inches in length, 6.75 inches in width, and 16 inches in height, and ships as a single unit weighing 26 pounds.

Key Features

• EZ-COIL spring motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back hazard
• Machined solid-brass 90-degree full-flow NPT swivel allows hose changes without dismounting the reel
• Lubricated, enclosed cartridge-style spring motor is removable for field maintenance
• Six-position adjustable guide arm and roller assembly for precise hose routing control
• CNC robotically spun and ribbed discs with rolled edges for hose protection and structural strength
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life

Compatibility

Designed as an OEM-style side-mount spring-driven hose reel for air, water, oil, and grease service lines in industrial, fleet, and garage environments.

Installation Notes

Installation is typically performed by a qualified mechanic or industrial maintenance technician. Shut off and depressurize the connected air, water, or fluid supply line before mounting or servicing the reel. The two-bolt side-mount pattern is designed for attachment to a vertical flat surface such as a wall, beam, cabinet, or vehicle bulkhead. Consult applicable OSHA and facility safety guidelines when installing reels on service vehicles or elevated structures.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 1/2 inch
• Hose Length Capacity: 35 feet
• Reel Length: 14.5 inches
• Reel Width: 6.75 inches
• Reel Height: 16 inches
• Weight: 26 pounds
• Swivel Material: Solid brass
• Mounting Pattern: 2-bolt side mount
• Guide Arm Positions: 6
• Finish: CPC powder coat
• UPC: 674255743823

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG13-L135
