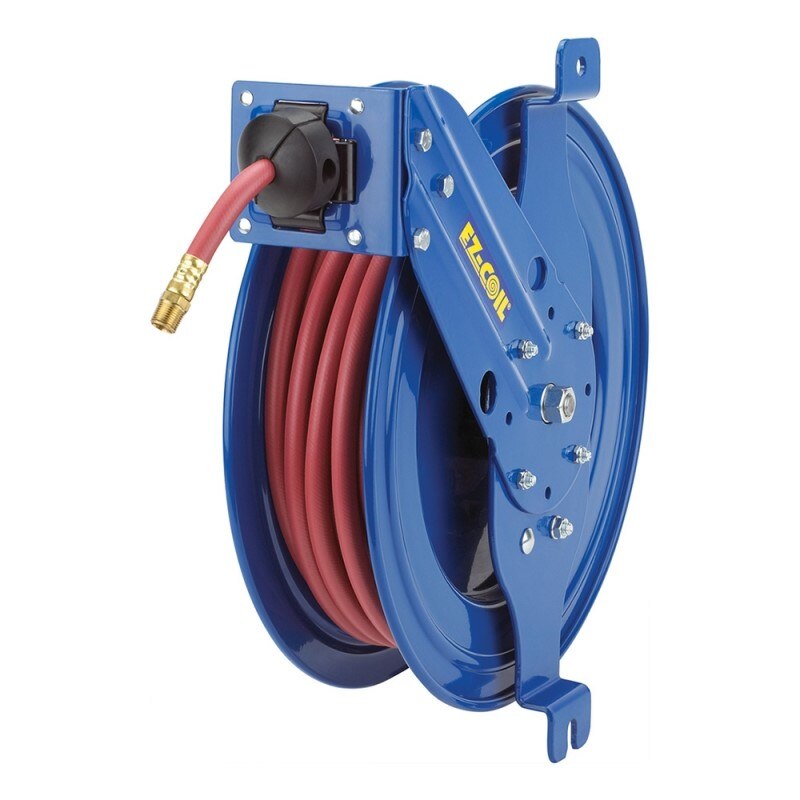

Coxreels EZ-SG13-L125 Spring Driven Hose Reel 25 Ft

Product Description

The COXREELS EZ-SG13-L125 is a spring-driven hose reel from the SG Series, designed for controlled retraction of air, water, oil, and grease hose in demanding trade environments. It accepts 1/4 inch ID hose up to 25 feet and features the patented EZ-Coil retraction system, which retracts up to 80 percent slower than conventional spring reels for safer, more controlled operation. The side-mount design uses a simple two-bolt pattern for quick installation or removal on any vertical flat surface. Licensed HVAC techs, mechanics, and shop technicians rely on this reel for organized hose management at service bays, workbenches, and mobile service vehicles.

The EZ-SG13-L125 is well suited for residential and commercial service environments where space is limited. Common installations include service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. The multi-position guide arm adjusts to six different positions, allowing the hose to be directed precisely where it is needed. The enclosed, lubricated cartridge-style spring motor is removable without taking the reel off its mount, reducing downtime during routine maintenance.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for operator safety
• Multi-position guide arm and roller assembly adjusts to six positions for precise hose direction control
• Two-bolt side-mount pattern allows fast installation and removal on vertical flat surfaces
• Machined solid brass 90-degree full-flow NPT swivel supports easy hose installation without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• CPC powder coat finish is chip resistant and rust inhibiting for long service life
• Permanently lubricated precision bearings and adjustable solid rubber hose stop included

Compatibility

The EZ-SG13-L125 is part of the COXREELS SG Series and is designed for use with air, water, oil, and grease hose with a 1/4 inch ID. It is compatible with vertical flat surface mounts including service vehicle cabinets, shop walls, beams, and enclosed spaces that accept a two-bolt mounting footprint.

Installation Notes

Installation is typically performed by a qualified mechanic, technician, or maintenance professional. Depressurize and bleed the hose line before mounting or servicing the reel. Secure the two-bolt mounting pattern to a structurally sound vertical surface capable of supporting the reel and hose load. Use a standard open-end or box wrench to reposition the guide arm to one of the six available positions after mounting.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 25 feet
• Hose Type: Air, water, oil, grease
• Swivel: Machined brass 90-degree full-flow NPT
• Spring Motor: Enclosed lubricated cartridge, EZ-Coil retraction
• Guide Arm Positions: 6
• Mounting Style: Side mount, 2-bolt vertical flat surface
• Finish: CPC powder coat, chip resistant, rust inhibiting
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 25 pounds
• UPC: 674255741669

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG13-L125
