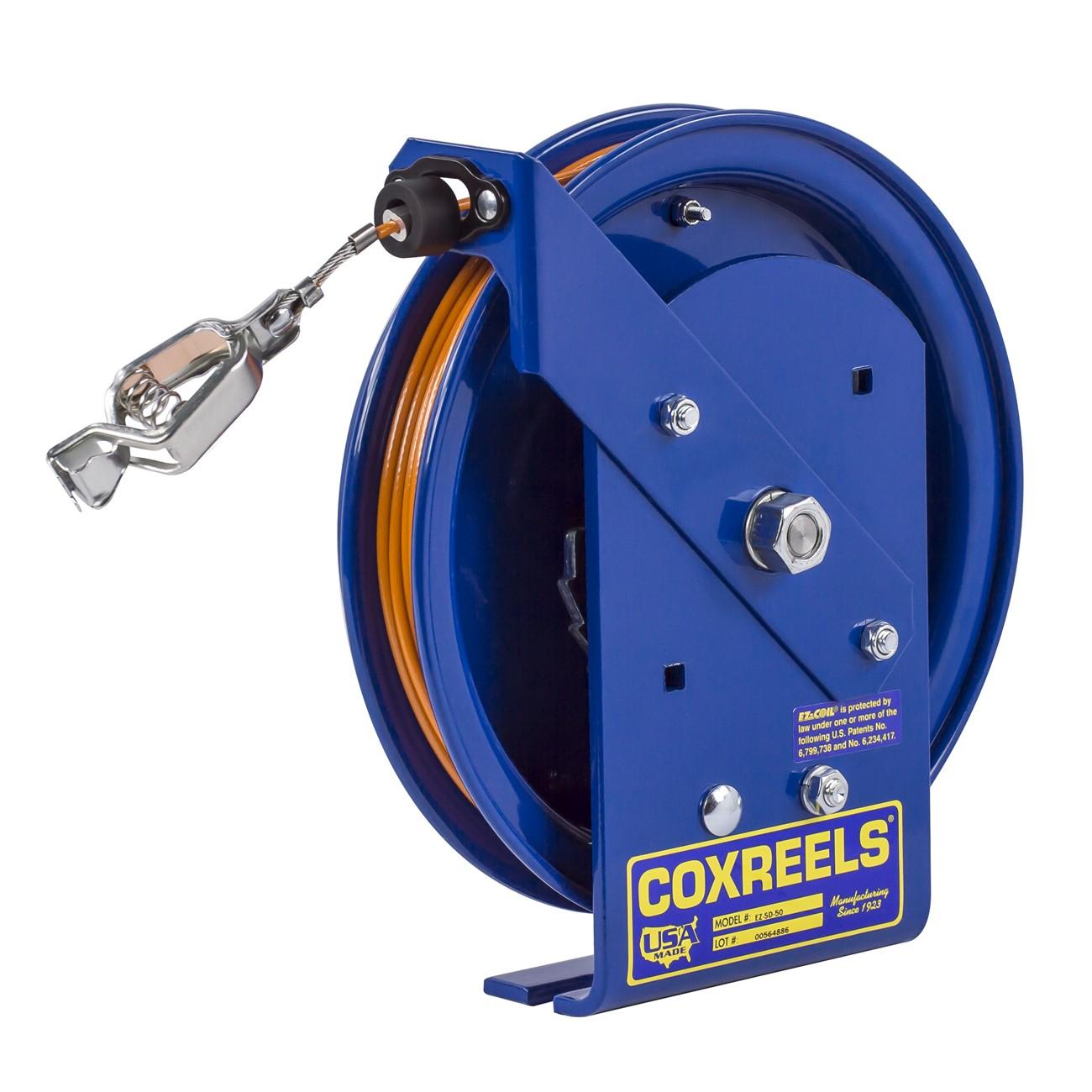

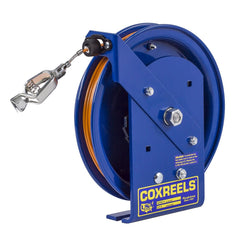

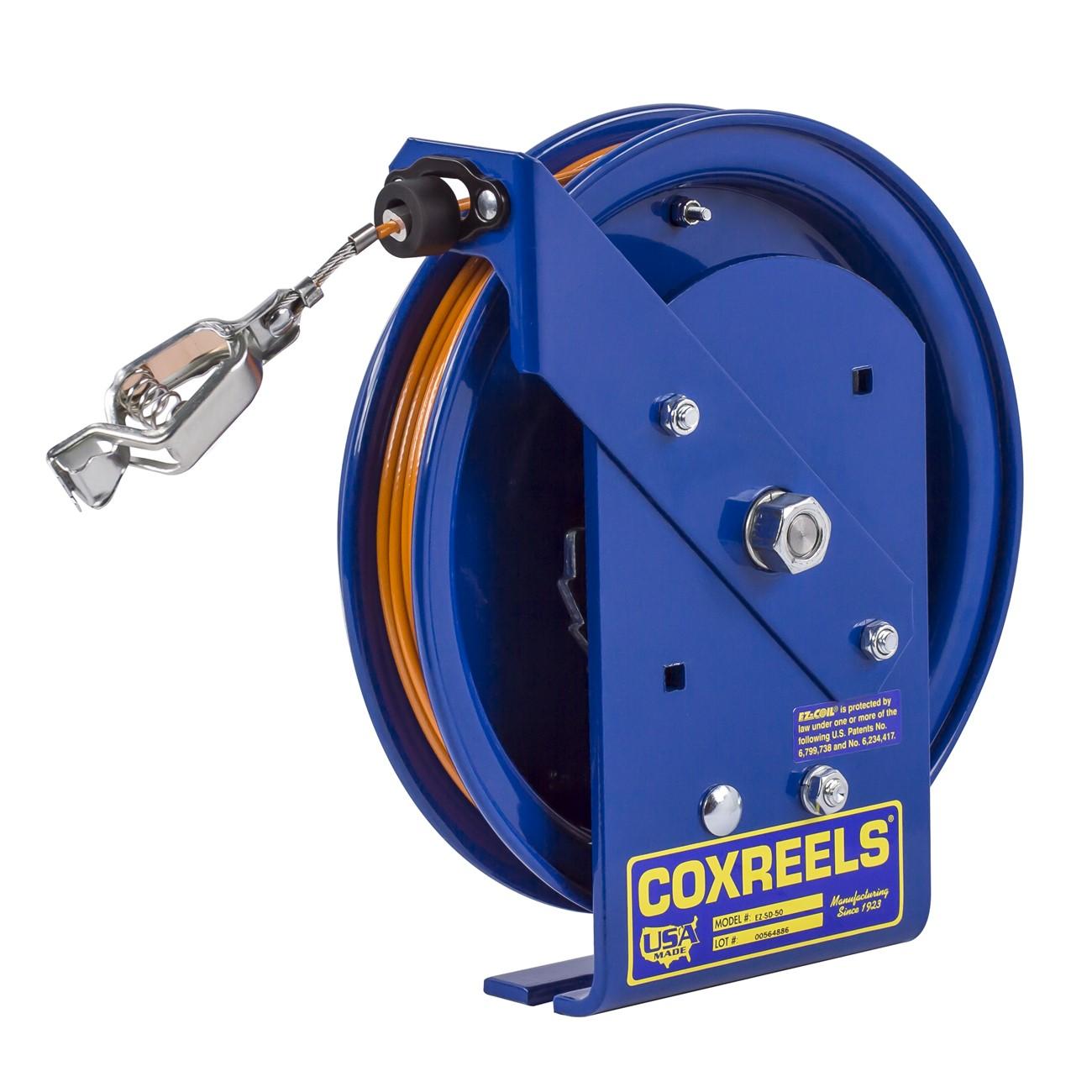

Coxreels EZ-SD-75 Static Discharge Cable Reel 75 Ft

Product Description

The COXREELS EZ-SD-75 is a static discharge cable reel designed for use in combustible and potentially explosive environments where uncontrolled static buildup poses a serious ignition risk. Built on a heavy-duty steel frame with CNC robotically spun and ribbed discs, this reel is engineered for long service life under demanding industrial conditions. The EZ-Coil drive system uses a lubricated, enclosed cartridge-style motor that retracts the cable up to 80 percent slower than conventional spring-driven reels, reducing snap-back hazards. The unit ships as a single piece weighing 31 pounds with overall dimensions of 14.5 inches long, 6.75 inches wide, and 16 inches tall.

This reel is intended for use in fueling stations, tank farms, fleet maintenance facilities, and other locations where grounding or bonding of vehicles, containers, or equipment is required before fuel transfer or other operations involving flammable materials. It is commonly paired alongside fuel hose reels in fixed and mobile dispensing setups. Installation suits floor, wall, ceiling, or vehicle mounting configurations via the multi-position aluminum guide arm. Licensed electricians and fuel-system technicians are the primary installers.

Key Features

• EZ-Coil enclosed cartridge motor retracts up to 80 percent slower than conventional reels, reducing snap-back risk
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and cable protection
• Solid one-piece steel base and support post with no-weld single pedestal construction for maximum stability
• Multi-position aluminum guide arm accommodates wall, floor, ceiling, and vehicle mounting
• 7-strand x 7-wire galvanized steel cable with high-visibility orange vinyl cover
• 50 amp grounding clamp, adjustable solid rubber cable stop, and CPC powder coat finish included

Compatibility

Designed as an OEM-style static discharge and grounding cable reel for use in combustible-environment applications; commonly paired with fuel hose reels in fixed or mobile dispensing systems.

Installation Notes

Installation should be performed by a licensed electrician or qualified fuel-system technician familiar with applicable NEC and NFPA codes governing static grounding in Class I hazardous locations. Disconnect all power and verify the area is free of ignitable vapors before mounting or servicing the reel. Secure the base to a stable surface using hardware appropriate for the mounting substrate. The EZ-Coil cartridge motor is designed for field removal to allow safe maintenance without full reel disassembly.

Technical Specifications

• Cable Length: 75 ft
• Drive Type: EZ-Coil enclosed cartridge motor
• Cable Construction: 7-strand x 7-wire galvanized steel with orange vinyl cover
• Grounding Clamp: 50 amp
• Frame Material: Steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 31 pounds
• UPC: 674255923263

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SD-75
