Coxreels EZ-SD-50-1 Static Discharge Cable Reel 50 Ft

Product Description

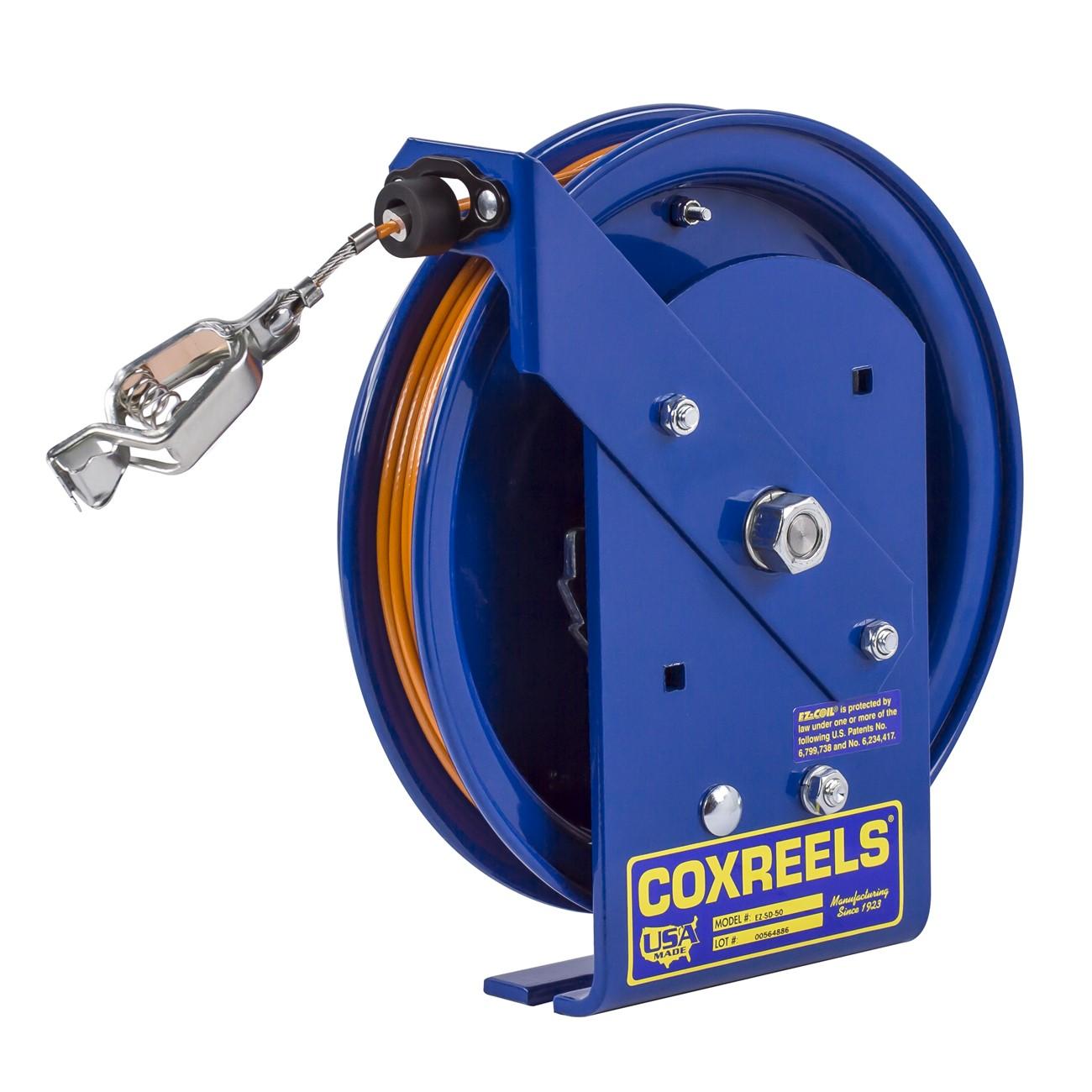

The COXREELS EZ-SD-50-1 is a static discharge cable reel built for use in combustible and hazardous environments where uncontrolled static buildup can ignite fuel vapors or explosive atmospheres. The reel uses an EZ-Coil enclosed cartridge-style motor that retracts cable up to 80 percent slower than conventional spring-driven reels, reducing snap-back risk for the operator. The steel frame rides on permanently lubricated precision bearings and carries a 50-foot, 7-strand by 7-wire galvanized steel cable with a high-visibility orange vinyl cover. A 50-amp grounding clamp is included. Licensed electricians and fuel-system service techs are the primary installers of this type of equipment.

The EZ-SD-50-1 is intended for fixed and mobile installations in environments where flammable liquids or vapors are present, including fuel dispensing stations, fleet maintenance facilities, and industrial sites. It is commonly paired with fuel hose reels to provide a complete static-grounding solution at the point of fuel transfer. The single-pedestal steel base and multi-position aluminum guide arm support wall, floor, ceiling, and vehicle mounting configurations, making it practical for both permanent shop installations and service-truck deployments.

Key Features

• EZ-Coil enclosed cartridge motor retracts cable up to 80 percent slower than conventional reels, reducing snap-back hazard
• 7-strand by 7-wire galvanized steel cable with high-visibility orange vinyl cover
• CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• Solid one-piece steel base with single pedestal support post, no weld construction
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Includes 50-amp grounding clamp, adjustable solid rubber cable stop, and CPC powder coat finish

Compatibility

Designed as an OEM-style static discharge grounding reel for use in combustible environments; commonly paired with fuel hose reels as part of a complete grounding and bonding system at fuel transfer points.

Installation Notes

Installation should be performed by a qualified electrician or licensed technician familiar with NFPA 77 static grounding requirements and applicable local codes. Disconnect and de-energize all associated equipment before mounting or servicing the reel. Verify that the grounding clamp makes solid metal-to-metal contact with the container or vehicle being bonded. The EZ-Coil cartridge motor is removable for maintenance without full reel disassembly.

Technical Specifications

• Cable Length: 50 ft
• Cable Construction: 7-strand x 7-wire galvanized steel
• Cable Cover: High-visibility orange vinyl
• Grounding Clamp: 50 amp
• Drive Type: EZ-Coil enclosed cartridge motor
• Frame Material: Steel
• Guide Arm Material: Aluminum
• Finish: CPC powder coat
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 20 pounds
• UPC: 674255923133

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SD-50-1
