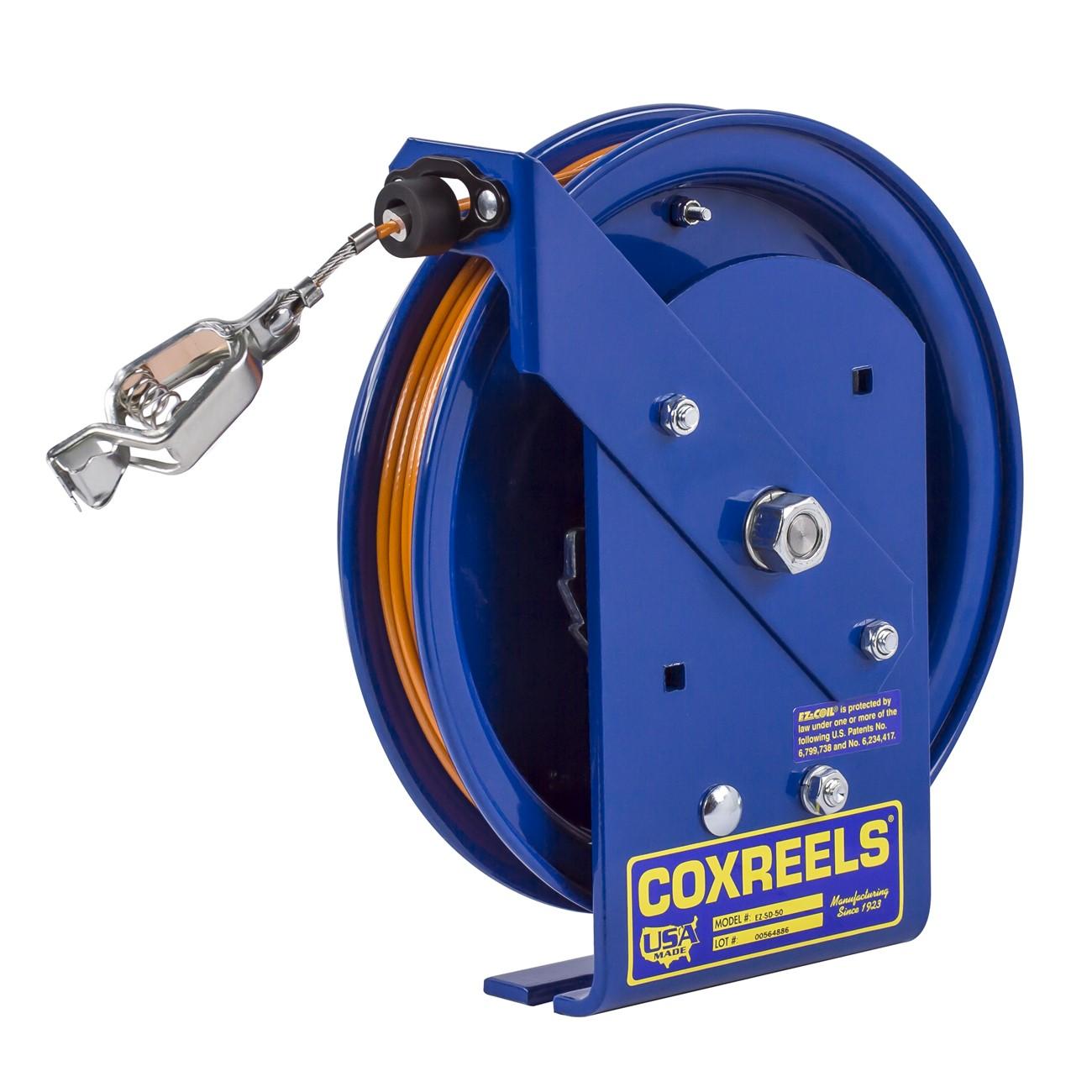

Coxreels EZ-SD-35 Static Discharge Cable Reel 35 Ft

Product Description

The COXREELS EZ-SD-35 is a static discharge cable reel built for use in combustible and potentially explosive environments where uncontrolled static buildup poses an ignition risk. Part of the COXREELS SD Series, this reel features the patented EZ-Coil drive system, a lubricated and enclosed cartridge-style motor that retracts cable up to 80% slower than conventional spring-driven reels, reducing snap-back hazards. The steel cable is a 7-strand by 7-wire galvanized construction with a high-visibility orange vinyl cover. The reel weighs 18 pounds and ships as a single unit. It is installed by licensed electricians and fuel system technicians working in fuel distribution, aviation ground support, and industrial fueling applications.

The EZ-SD-35 is designed for combustible environments where static grounding is required before or during fuel transfer operations. Typical installations include bulk fuel facilities, tank farms, petroleum distribution terminals, and fleet fueling stations. This reel is commonly paired with fuel hose reels to provide a complete static discharge and grounding solution at the fueling point. The single-pedestal steel base supports wall, floor, ceiling, and vehicle mounting configurations via the adjustable multi-position aluminum guide arm.

Key Features

• EZ-Coil patented drive system retracts cable up to 80% slower than conventional reels, reducing snap-back risk
• Lubricated and enclosed cartridge-style motor is removable for maintenance without full reel disassembly
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• Solid one-piece steel base and support post with no-weld construction for maximum stability
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Includes 50-amp grounding clamp, adjustable solid rubber cable stop, and CPC powder coat finish for chip and rust resistance

Compatibility

Designed as an OEM-style static discharge and grounding cable reel for use in combustible fuel-handling environments; commonly paired with fuel hose reels as a complete static control solution.

Installation Notes

Installation should be performed by a qualified electrician or fuel system technician familiar with applicable NFPA and NEC requirements for hazardous locations. Verify that all power and fuel flow to the work area is shut off and the environment is clear of ignition sources before mounting or servicing the reel. The mounting surface must be capable of supporting the reel assembly and the cable tension loads generated during retraction. Do not defeat or bypass the cable stop or grounding clamp hardware.

Technical Specifications

• Cable Length: 35 ft
• Cable Construction: 7-strand x 7-wire galvanized steel with orange vinyl cover
• Drive Type: EZ-Coil enclosed cartridge motor
• Grounding Clamp Rating: 50 amps
• Base Material: Steel, one-piece no-weld construction
• Guide Arm Material: Aluminum
• Finish: CPC powder coat
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 18 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SD-35
