Coxreels EZ-SD-35-1 Static Discharge Cable Reel 35 Ft

Product Description

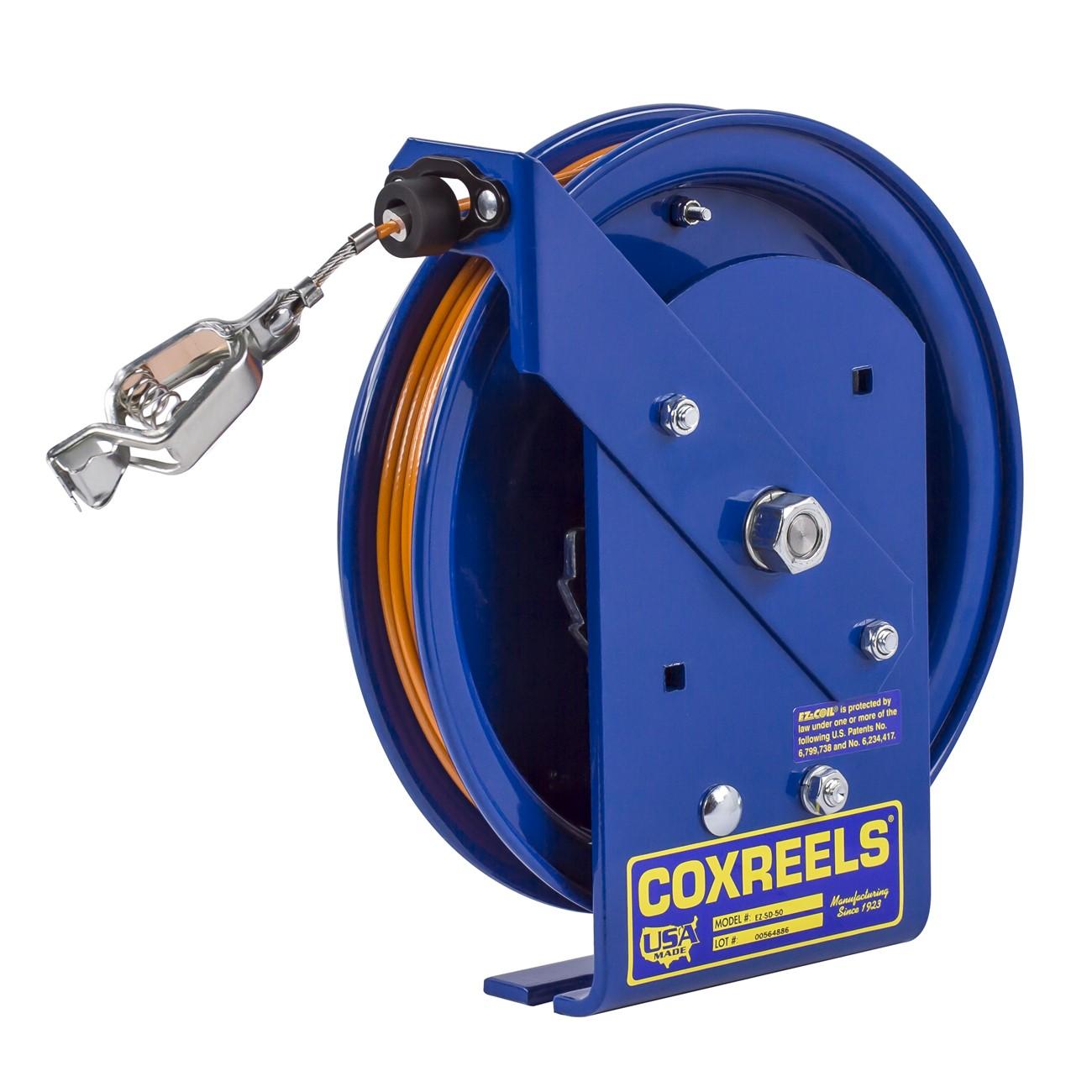

The COXREELS EZ-SD-35-1 is a static discharge cable reel built for use in combustible and fuel-handling environments where uncontrolled static buildup poses an ignition risk. Part of the SD Series, this reel uses a 7-strand by 7-wire galvanized steel cable with a high-visibility orange vinyl cover to safely ground equipment and dissipate static charge before fueling or fluid transfer operations begin. The EZ-Coil drive system retracts the cable up to 80 percent slower than conventional spring-driven reels, reducing snap-back hazards on the job. The steel pedestal base and CNC-spun ribbed discs give this unit the structural integrity needed for daily industrial use. Licensed tradespeople and fleet service technicians are the primary installers.

This reel is designed for combustible environments where static grounding is required prior to fuel transfer or chemical handling. It is commonly paired with fuel hose reels in petroleum, fleet fueling, and industrial service applications. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to service bays, fuel islands, and mobile service rigs. The 50-amp grounding clamp and 35-foot cable reach suit a wide range of stationary and vehicle-mounted installations.

Key Features

• EZ-Coil enclosed cartridge motor retracts cable up to 80 percent slower than conventional reels, reducing snap-back risk
• 7-strand by 7-wire galvanized steel cable with high-visibility orange vinyl cover for durability and easy identification
• CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• Solid one-piece steel base and support post with single pedestal design, no-weld construction
• Multi-position aluminum guide arm mounts to wall, floor, ceiling, or vehicle
• 50-amp grounding clamp and adjustable solid rubber cable stop included
• CPC powder coat finish resists chips and rust for long service life

Compatibility

Designed as an OEM-style static discharge and grounding reel for combustible-environment applications; commonly paired with fuel hose reels in petroleum and fleet fueling service installations.

Installation Notes

Installation should be performed by a qualified technician familiar with static grounding requirements in flammable or combustible environments. Confirm all power and fuel sources are shut off and the area is clear of ignition sources before mounting or servicing this reel. Local fire codes and NFPA guidelines governing static grounding in fuel-handling areas should be consulted prior to installation. The cartridge-style EZ-Coil motor is removable for maintenance without full reel disassembly.

Technical Specifications

• Cable Length: 35 feet
• Cable Type: 7-strand x 7-wire galvanized steel with orange vinyl cover
• Drive Type: EZ-Coil enclosed cartridge motor
• Base Material: Steel
• Grounding Clamp Rating: 50 amps
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 18 pounds
• UPC: 674255923225

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SD-35-1
