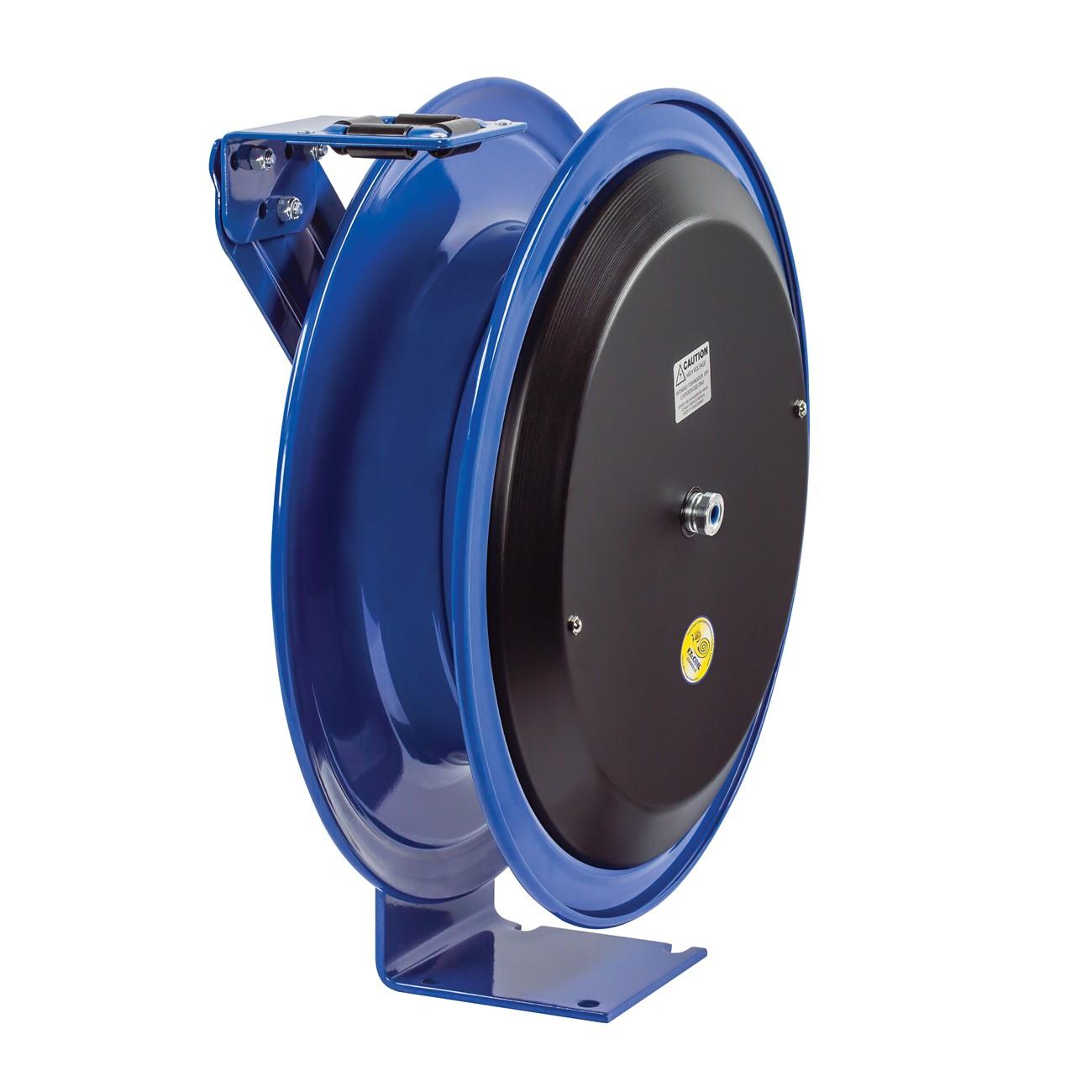

Coxreels EZ-PC24L-0012 Ez-coil Power Cord Reel 100 Ft

Product Description

The COXREELS EZ-PC24L-0012 is a spring-driven power cord reel built for industrial and heavy-duty trade applications. It self-retracts to eliminate tangled extension cords on job sites, in shops, and in service vehicles. The EZ-Coil drive system is the defining feature here: a lubricated, enclosed cartridge-style motor that retracts the cord up to 80 percent slower than conventional spring reels, reducing snap-back and wear. The reel body is constructed from CNC robotically spun and ribbed steel discs with rolled edges, and the entire unit weighs 64 pounds. A powder-coated steel component cover provides corrosion resistance without adding unnecessary mass.

This reel is designed for electricians, HVAC technicians, facility maintenance crews, and industrial service professionals who need a reliable, self-retracting power source at a fixed or vehicle-mounted location. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting, making the EZ-PC24L-0012 adaptable across shop, warehouse, and mobile service environments. It is suitable for applications where a 100 ft cord capacity is required and where routine maintenance access without dismounting the reel is a priority.

Key Features

• EZ-Coil spring drive retracts cord up to 80 percent slower than standard reels, reducing snap-back and extending cord life
• Lubricated, enclosed cartridge-style motor is removable for maintenance without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• External powder-coated steel component cover allows slip ring maintenance access without dismounting
• Solid one-piece steel base with single pedestal design and no-weld support post for maximum stability
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle

Compatibility

Designed as an OEM-style replacement or direct-install power cord reel for industrial and commercial service environments requiring a spring-driven, self-retracting 100 ft cord reel.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power before servicing the slip ring assembly or replacing the cord. The multi-position guide arm must be secured to a structural surface rated for the unit weight prior to use. Do not exceed the rated cord capacity or voltage rating marked on the unit.

Technical Specifications

• Cord Capacity: 100 ft
• Drive Type: EZ-Coil Spring Drive
• Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 64 pounds
• UPC: 674255923638

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC24L-0012
