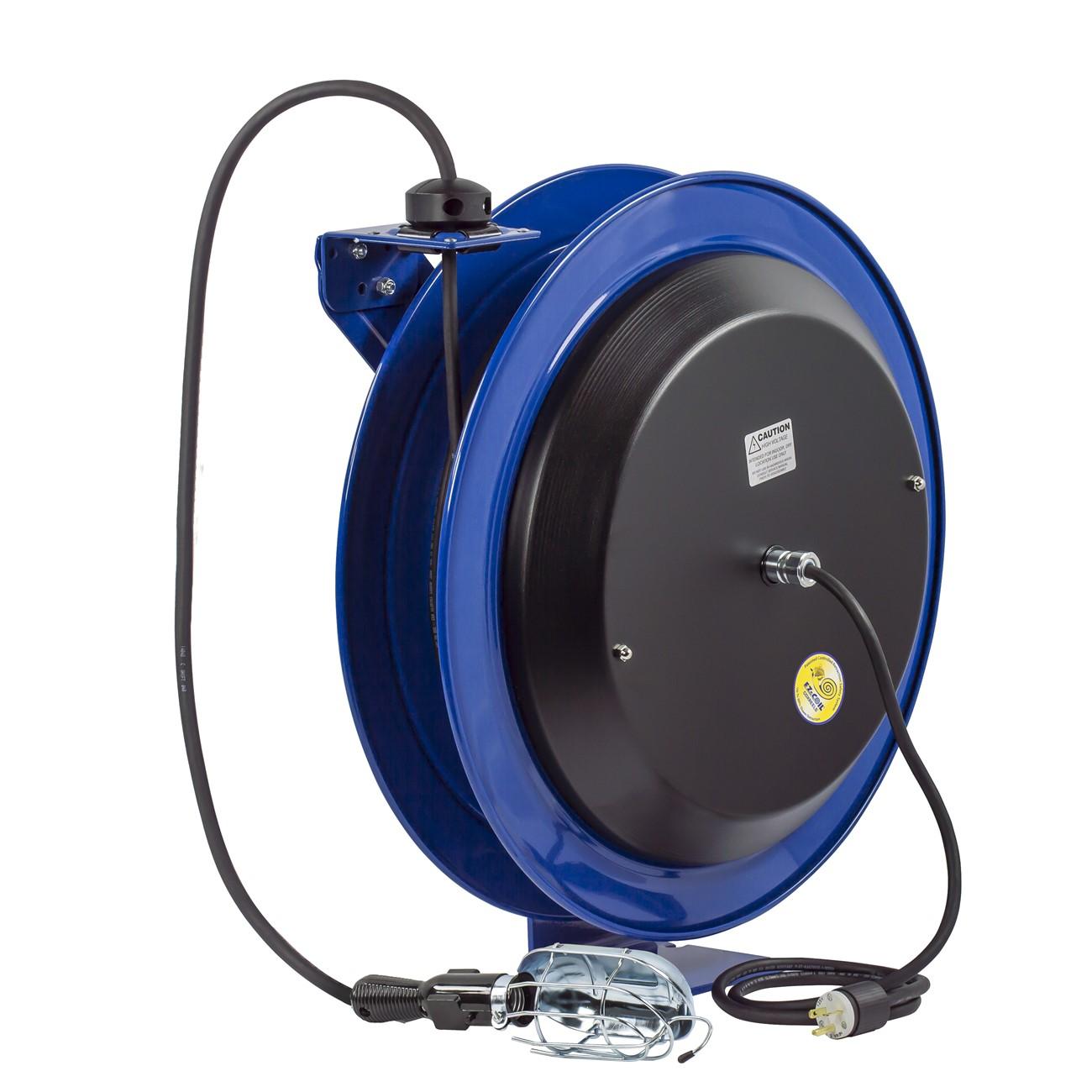

Coxreels EZ-PC24-0016-E Power Cord Reel 100 Ft

Product Description

The COXREELS EZ-PC24-0016-E is a spring-driven power cord reel built for heavy-duty industrial use. The EZ-Coil retraction system slows retraction speed up to 80 percent compared to conventional reels, reducing snap-back hazards on the job. The reel is constructed with CNC robotically spun and ribbed steel discs featuring rolled edges for structural strength and cord protection. At 80 pounds, this is a substantial unit intended for permanent or semi-permanent mounting in shops, service bays, warehouses, and fleet maintenance facilities. Electricians and maintenance technicians install and service this unit, replacing tangled extension cord setups with a self-retracting, organized power source.

The EZ-PC24-0016-E is suited for commercial and industrial environments where a reliable, stationary power cord management solution is required. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of facility and service vehicle layouts. A 5-foot lead cable and grounding plug are included. The unit ships as a single piece with a minimum order quantity of one.

Key Features

• EZ-Coil spring-driven retraction slows cord retrieval up to 80 percent versus conventional reels for improved operator safety
• Externally accessible component cover in heavy-gauge CPC powder-coated steel allows slip ring maintenance without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and cord protection
• Solid one-piece steel base with single pedestal and support post requires no welding and provides a stable, no-flex foundation
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and incandescent caged drop light with tool tap plug
• Long-lasting CPC powder coat finish is chip-resistant and rust-inhibiting

Compatibility

Designed as an OEM-style heavy-duty power cord reel replacement for industrial and commercial applications requiring spring-driven retractable cord management. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation is typically performed by a licensed electrician or qualified maintenance technician. Disconnect and lock out all power sources before servicing the slip ring assembly or any electrical components. The multi-position mounting arm should be secured to a surface rated for the full loaded weight of the reel and cord. Reference applicable NEC requirements for the installation environment and grounding configuration.

Technical Specifications

• Cord Length: 100 ft
• Drive Type: EZ-Coil Spring Drive
• Frame Material: Steel
• Weight: 80 pounds
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• UOM: Each
• UPC: 674255922792

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC24-0016-E
