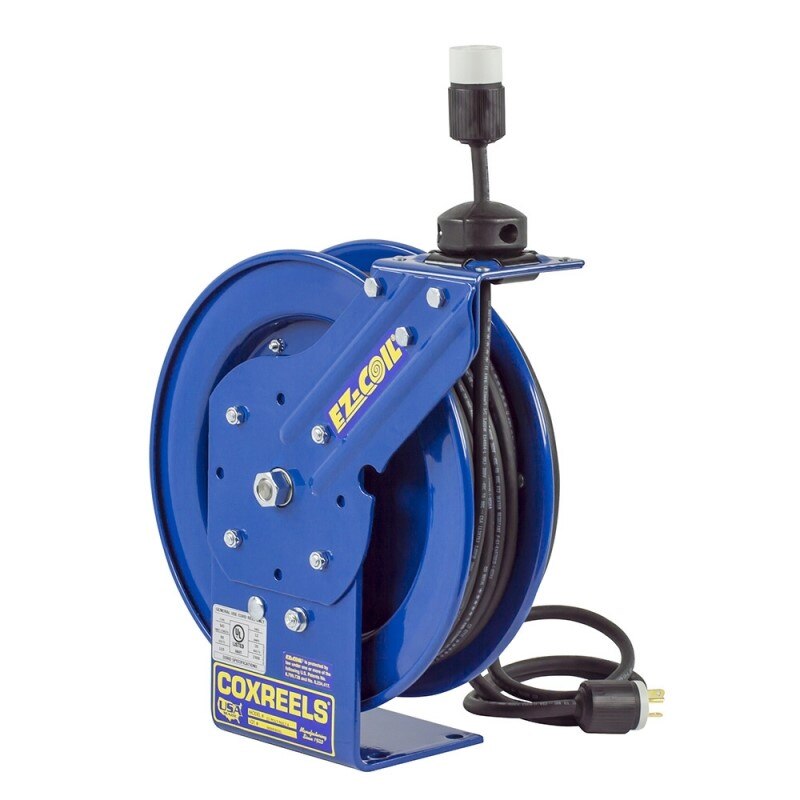

Coxreels EZ-PC24-0016-A Power Cord Reel 100 Ft Steel

Product Description

The COXREELS EZ-PC24-0016-A is a spring-driven power cord reel built for industrial and commercial trade environments. Part of the PC Series, it replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel features EZ-Coil drive technology, which slows retraction to approximately 80 percent of conventional reel speed, reducing snap-back hazards. The drum and discs are CNC robotically spun from steel and ribbed with rolled edges for structural strength. At 80 pounds, the unit is built for stationary or vehicle-mounted permanent installation by electricians and industrial maintenance technicians.

This cord reel is suited for commercial, industrial, and fleet service applications where a reliable, self-retracting power source is required. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations. A 5-foot lead cable and grounding plug are included. The single industrial receptacle makes it appropriate for powering tools, equipment, and lighting in shops, service bays, and facilities maintenance settings where cord management and operator safety are priorities.

Key Features

• EZ-Coil spring-driven retraction system slows cord return to reduce snap-back risk
• CNC robotically spun and ribbed steel discs with rolled edges for durability and operator safety
• External component cover in powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Solid one-piece steel base with single pedestal and support post — no welds — for maximum stability
• Multi-position guide arm adjustable for wall, floor, ceiling, and vehicle mounting
• Includes 5-foot lead cable, grounding plug, adjustable rubber cord stop, and single industrial receptacle
• Permanently lubricated precision bearings and chip-resistant, rust-inhibiting powder coat finish

Compatibility

Designed as an OEM-style heavy-duty replacement or new-installation cord reel for industrial, commercial, and fleet service environments requiring a spring-driven self-retracting power cord solution.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Power down the circuit before making any electrical connections to the lead cable and grounding plug. Ensure the mounting surface — wall, floor, ceiling, or vehicle — is rated to support the weight of the reel and loaded cord. Do not exceed the cord or receptacle amperage ratings specified on the unit label.

Technical Specifications

• Drive Type: Spring driven EZ-Coil
• Cord Capacity: 100 feet
• Material: Steel
• Weight: 80 pounds
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Includes: 5-foot lead cable, grounding plug, single industrial receptacle, adjustable rubber cord stop
• UPC: 674255922563

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC24-0016-A
