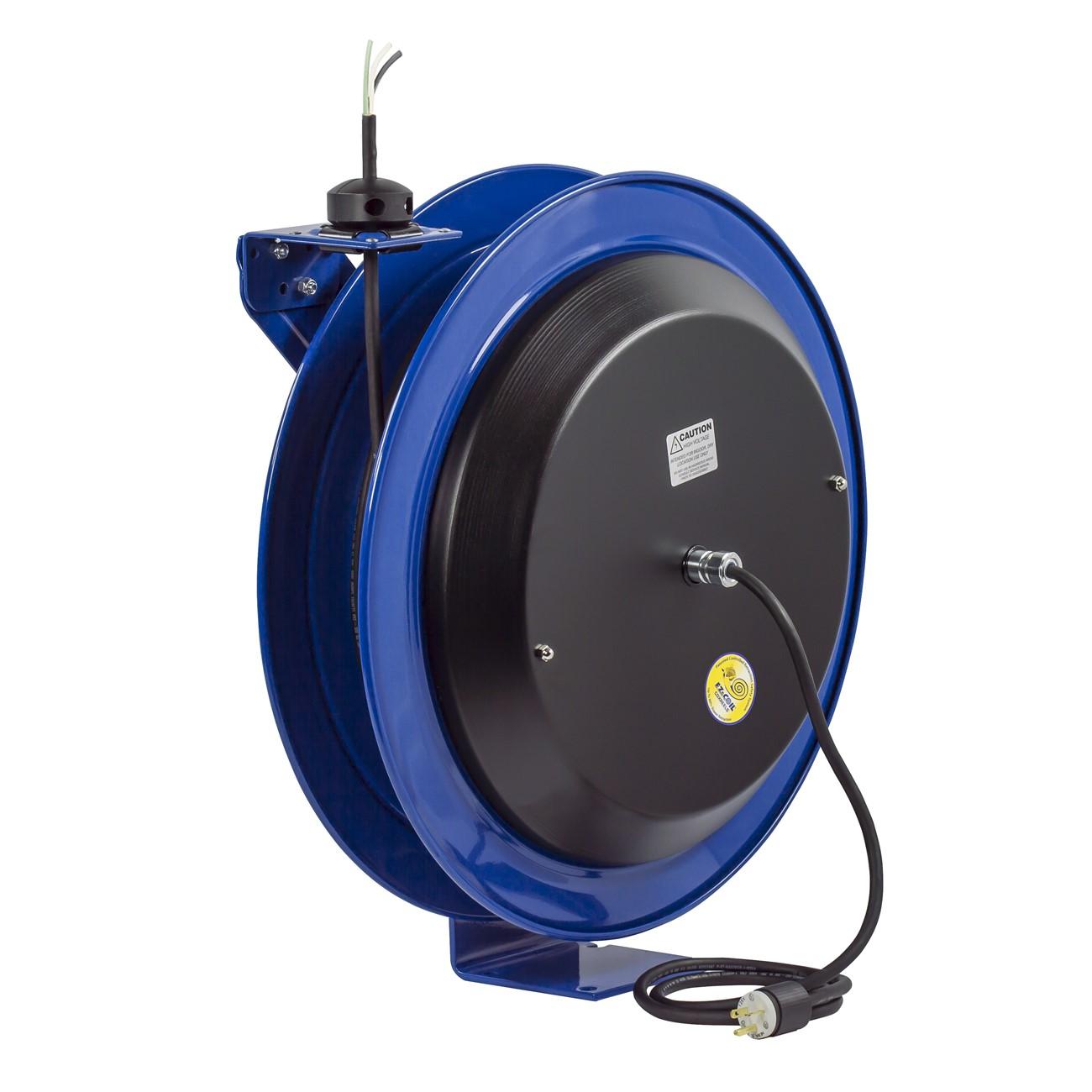

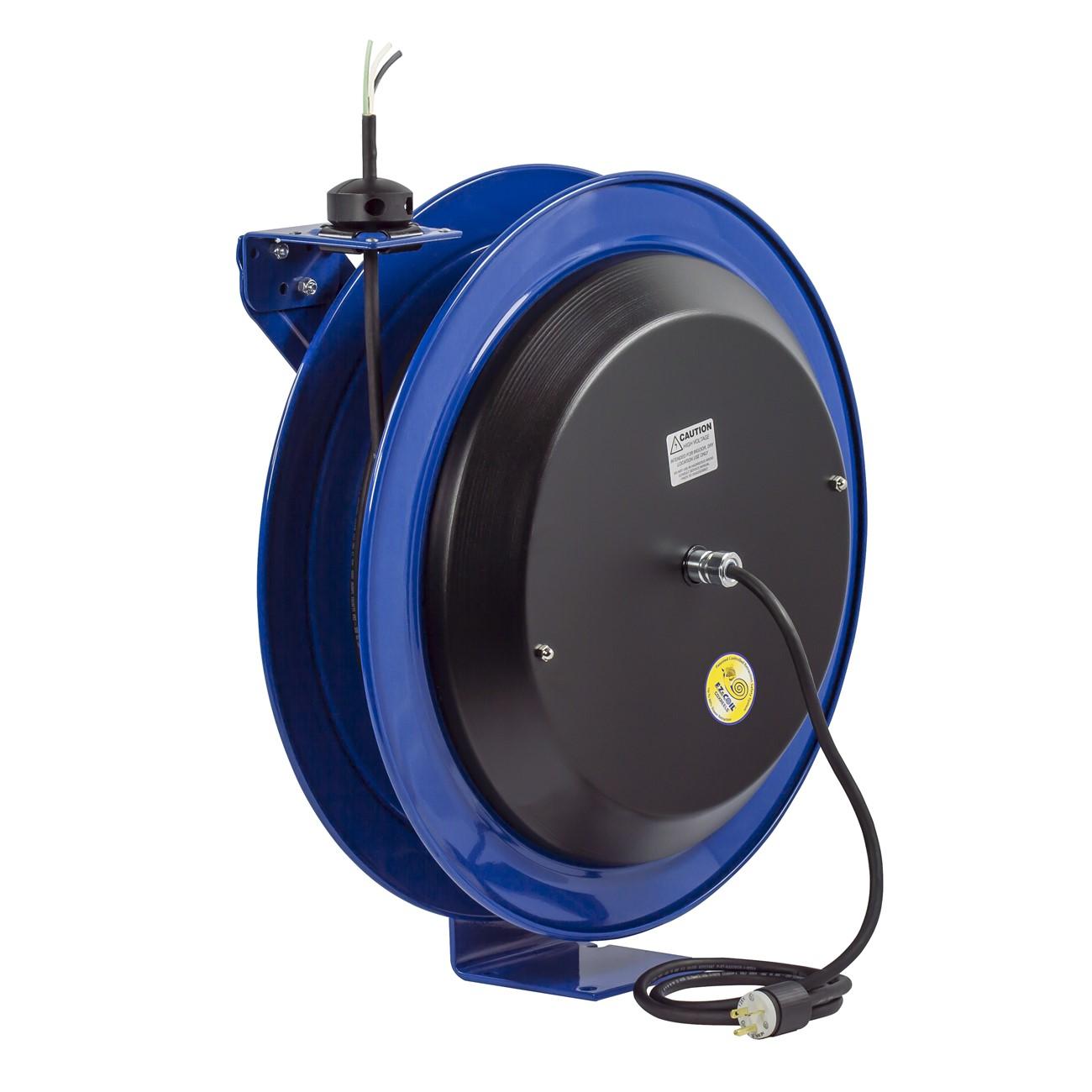

Coxreels EZ-PC24-0012-X Power Cord Reel 100 Ft Spring Driven

Product Description

The COXREELS EZ-PC24-0012-X is a spring-driven power cord reel built for heavy-duty industrial and trade applications. It replaces tangled extension cords by self-retracting the cord after each use, reducing trip hazards and downtime on the job. The EZ-Coil drive system retracts at up to 80 percent slower than conventional reels, protecting both the cord and personnel. The reel body is fabricated from CNC robotically spun and ribbed steel discs with rolled edges, providing structural rigidity under demanding daily use. At 81 pounds, this unit is a permanent or semi-permanent installation piece intended for electricians, facility maintenance crews, and industrial service professionals who need a reliable, managed power source at a fixed station.

This cord reel is suited for industrial facilities, service bays, warehouses, and workshop environments where a consistent, managed power source is required. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of installation scenarios. It ships as a single unit and is intended for professional installation. The 5-foot lead cable and grounding plug are included, allowing the reel to integrate directly into a fixed power circuit without additional adapters.

Key Features

• EZ-Coil spring-driven retraction system retracts up to 80 percent slower than standard reels for added safety
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for strength, cord protection, and operator safety
• Solid one-piece steel base with single pedestal design and no-weld support post for maximum stability
• Multi-position guide arm adjustable for wall, floor, ceiling, and vehicle mounting
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct installation unit within the COXREELS PC Series lineup, modeled after the P and SH Series platform for interchangeable mounting and service compatibility.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements for fixed cord management equipment. Power down the circuit before making any electrical connections to the lead cable or grounding plug. Verify that the mounting surface can support the unit weight of 81 pounds plus dynamic cord load before securing the base. Do not exceed the rated cord capacity of the reel drum during installation or cord replacement.

Technical Specifications

• Cord Capacity: 100 ft
• Drive Type: EZ-Coil Spring Driven
• Body Material: Steel
• Base Material: Steel
• Finish: CPC Powder Coat
• Lead Cable: 5 ft included
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 81 pounds
• UPC: 674255923799

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC24-0012-X
