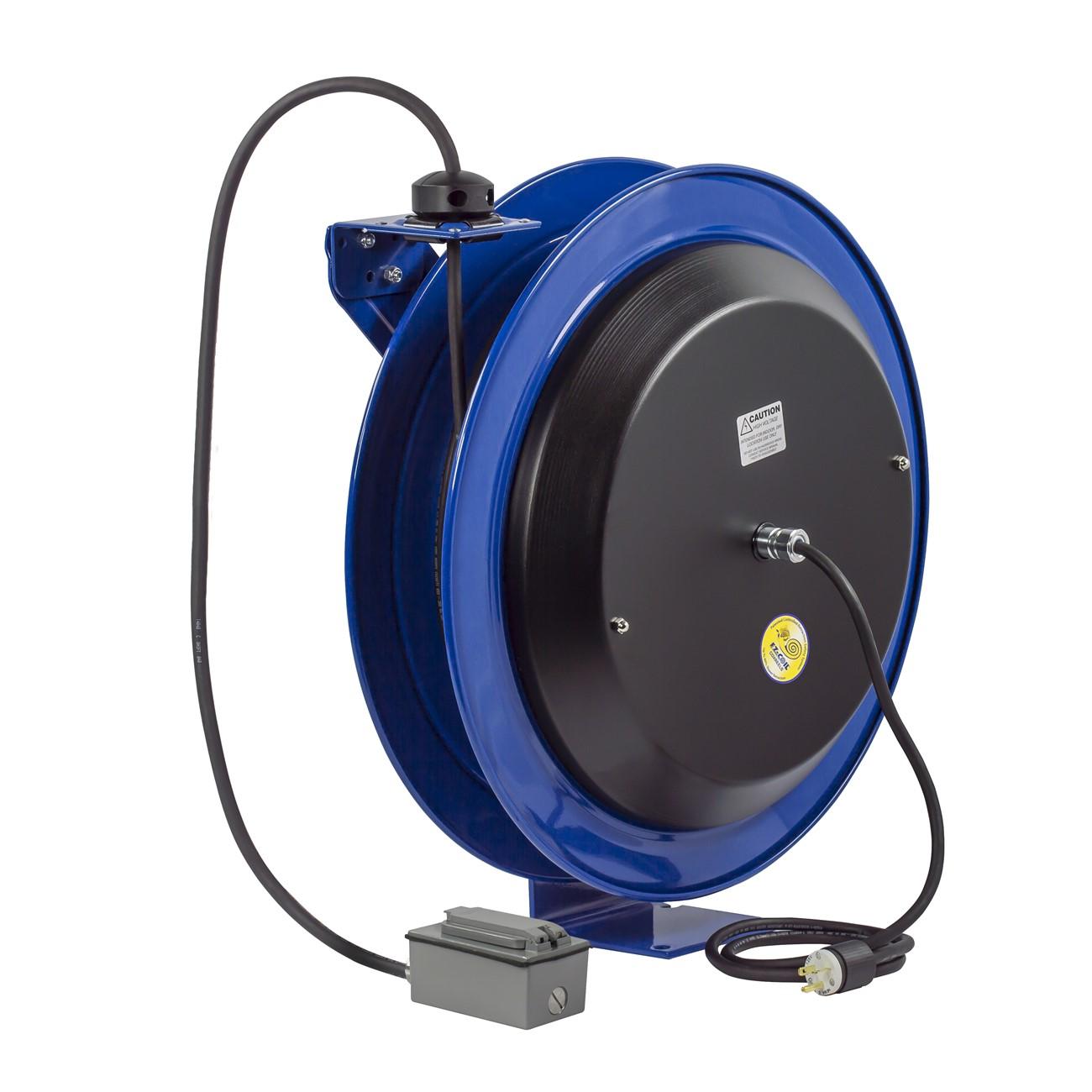

Coxreels EZ-PC24-0012-F Power Cord Reel 100 Ft Steel

Product Description

The COXREELS EZ-PC24-0012-F is a spring-driven power cord reel built for heavy-duty industrial and commercial applications. The EZ-Coil drive system retracts the cord up to 80 percent slower than conventional reels, reducing snap-back and improving jobsite safety. The unit ships with a 5-foot lead cable, a grounding plug, and a duplex GFCI metal industrial receptacle, making it a self-contained power delivery solution. CNC robotically spun and ribbed steel discs with rolled edges protect the cord during repeated use. The reel replaces tangled extension cords and mounts in multiple orientations to suit fixed or mobile installations. Licensed electricians and industrial maintenance technicians are the primary installers.

The EZ-PC24-0012-F is suited for industrial facilities, service vehicles, construction sites, and maintenance operations that require a reliable, self-retracting power cord source. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, giving installers flexibility across a wide range of deployment scenarios. The external component cover and removable cartridge-style EZ-Coil motor allow routine slip ring maintenance without removing the reel from its mount, which is a significant advantage in permanent or hard-to-reach installations.

Key Features

• EZ-Coil patented retraction system slows cord retraction up to 80 percent compared to conventional spring reels
• External, heavy-gauge powder-coated steel component cover allows slip ring maintenance without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for cord protection and operator safety
• Solid one-piece steel base with single pedestal design and no-weld construction for maximum stability
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and duplex GFCI metal industrial receptacle
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct upgrade for industrial spring-driven power cord reel applications. The PC Series shares design lineage with the COXREELS P and SH Series platforms.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize all circuits before mounting or servicing the reel. Verify that the mounting surface can support the reel weight of 90 pounds and that the selected mounting position aligns with the guide arm adjustment range. Do not exceed the cord or electrical ratings stamped on the unit.

Technical Specifications

• Cord Capacity: 100 ft
• Drive Type: EZ-Coil Spring Driven
• Frame Material: Steel
• Weight: 90 pounds
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Receptacle: Duplex GFCI Metal Industrial
• Lead Cable: 5 ft
• UPC: 674255922686

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC24-0012-F
