Coxreels EZ-PC24-0012-A Power Cord Reel 100 Ft Ez-coil

Product Description

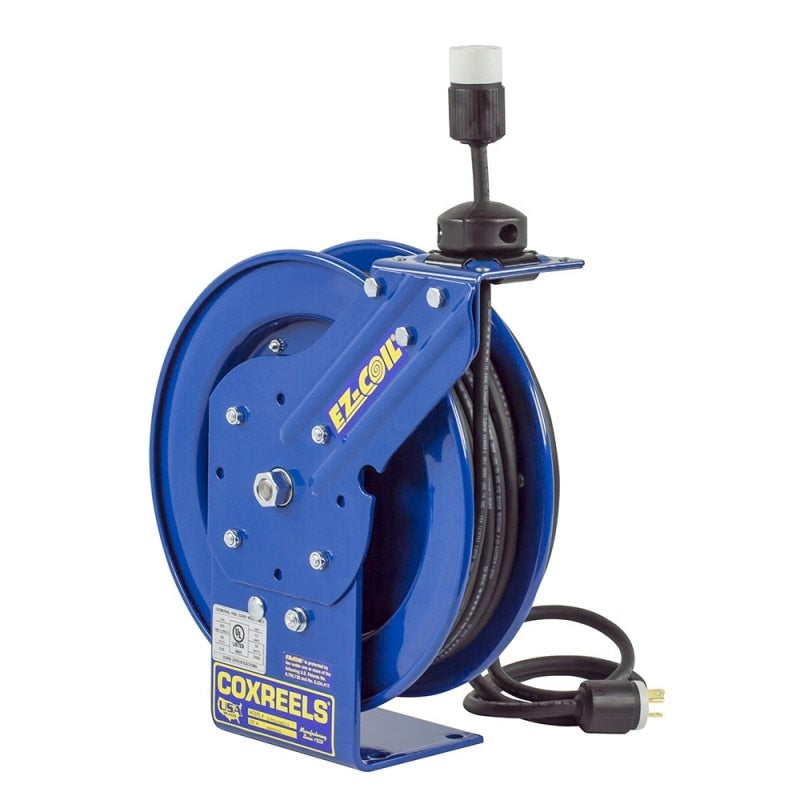

The COXREELS EZ-PC24-0012-A is a spring-driven power cord reel built for heavy-duty industrial and commercial applications. It uses the patented EZ-Coil retraction system, which slows the retract speed by up to 80 percent compared to conventional reels, reducing snap-back hazards and cable wear. The reel replaces tangled extension cords with a self-retracting design that keeps work areas clear and reduces trip and shock hazards. Constructed with CNC robotically spun and ribbed steel discs with rolled edges, it is built to withstand demanding shop floor, fleet maintenance, and industrial service environments. The unit weighs 90 pounds and measures 25 inches long by 13 inches wide by 27 inches tall.

This cord reel is suited for industrial facilities, maintenance shops, vehicle service bays, and commercial work environments where a reliable, retractable power source is needed at fixed or vehicle-mounted stations. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of installation configurations. The 5-foot lead cable and grounding plug are included, and the single industrial receptacle provides a ready-to-use power outlet at the reel.

Key Features

• EZ-Coil spring-driven retraction system slows rewind speed up to 80 percent compared to standard reels for improved operator safety
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and cord protection
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Solid one-piece steel base with single pedestal and no-weld support post for maximum stability
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and single industrial receptacle
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct installation unit in heavy-duty industrial cord reel applications where a spring-driven, self-retracting power cord reel is required.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before servicing the slip ring assembly or performing any electrical connections. The multi-position guide arm must be secured to a structurally adequate mounting surface rated to support the weight of the reel and its load. Do not exceed the cord and electrical ratings specified on the unit nameplate.

Technical Specifications

• Drive Type: EZ-Coil spring driven
• Cord Length: 100 feet
• Disc Material: Steel
• Base Material: Steel
• Finish: Powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 90 pounds
• UPC: 674255922662

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC24-0012-A
