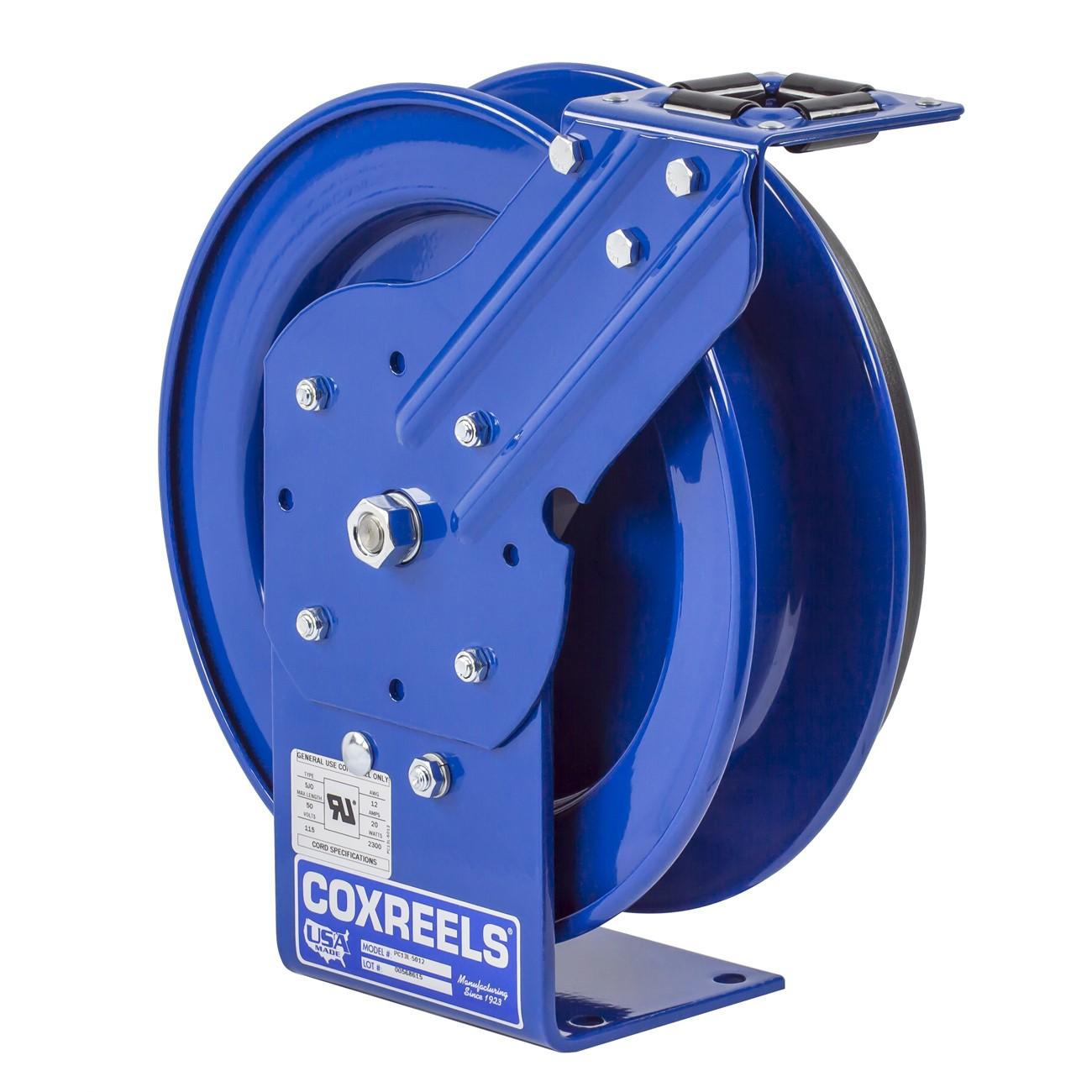

Coxreels EZ-PC13L-5016 Power Cord Reel 50 Foot Steel

Product Description

The COXREELS EZ-PC13L-5016 is a spring-driven power cord reel built for heavy-duty industrial and commercial use. Part of the PC Series, it replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel features CNC robotically spun and ribbed steel discs with rolled edges for strength and durability. Its EZ-Coil drive system retracts up to 80 percent slower than conventional spring reels, reducing snap-back hazards. At 31 pounds and measuring 13 inches long by 17 inches wide by 15.25 inches tall, it is sized for permanent wall, floor, ceiling, or vehicle mounting in demanding service environments. Licensed electricians and industrial maintenance technicians are the primary installers.

The EZ-PC13L-5016 accommodates 50 feet of cord and is suited for industrial facilities, service bays, manufacturing floors, and fleet maintenance operations where a reliable, permanent power source is needed at a fixed station. The multi-position guide arm allows flexible mounting orientations to fit a wide range of installation layouts. The single-pedestal steel base requires no welding and provides a stable, secure mount on any approved surface.

Key Features

• EZ-Coil spring-driven motor retracts up to 80 percent slower than conventional reels for reduced snap-back risk
• CNC robotically spun and ribbed discs with rolled edges for added strength and cord protection
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Lubricated, enclosed cartridge-style drive motor is removable for routine maintenance
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mount configurations
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct upgrade for industrial spring-driven cord reel applications in the PC Series product family.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before servicing the slip ring assembly or drive motor. Use appropriate fasteners rated for the mounting surface when securing the steel base pedestal. Do not exceed the rated cord length or load capacity of the reel.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: EZ-Coil spring driven
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 31 pounds
• Material: Steel
• Finish: Powder coat
• UPC: 674255923645

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC13L-5016
